In an era where the speed of information dissemination determines the user experience, your billboard is not only a display window, but also a representation of urban intelligence. This 86-inch display leggibile alla luce del sole is designed for bus stops. It is not afraid of direct sunlight and presents clear images and bright colors all day long. Whether it is advertising, real-time schedule information, or smart travel interactive systems, it can accurately convey and run stably, helping billboard manufacturers to create a new generation of bus station solutions that combine technology and commercial value.

.

.

Feedback from a customer of an advertising equipment manufacturer

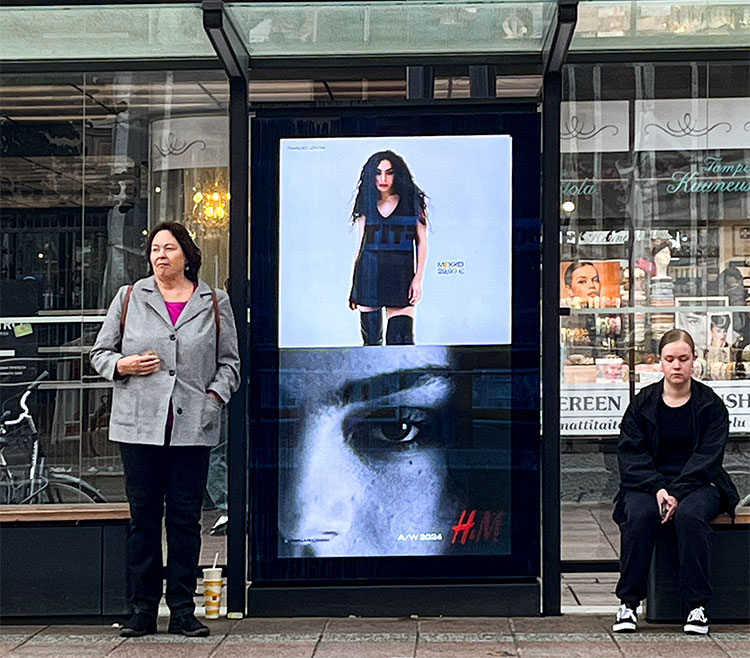

“We have equipped multiple bus stops with this 86-inch sunlight-visible display, and the overall experience is very good. The screen is bright, and the information is still clearly visible even in the strong sunlight at noon in summer, and passengers can read it without pressure. The installation structure is also carefully considered, which facilitates our quick integration into the existing light box system, saving a lot of man-hours. The operation is stable, and there are basically no after-sales problems. For us, this is a good product that not only improves the quality of the project but also saves worry.”

.

.

What value can RisingStar bring to advertising equipment manufacturers

As a manufacturer focusing on industrial-grade outdoor display solutions, RisingStar is continuously empowering advertising equipment manufacturers across the country with high-performance and high-reliability display technology.

A bus billboard manufacturer has adopted the 86-inch high-brightness direct-lit screen provided by RisingStar in multiple projects. The outdoor brightness covers from 2500 to 5000 nits, which is visible all the time, especially suitable for urban environments with strong sunlight. The device uses an industrial-grade module with high contrast, low energy consumption and low heat generation, combined with an all-aluminum lightweight frame structure, which not only reduces the weight of the whole machine, but also greatly simplifies the installation process.

The RisingStar screen has an ultra-thin design and a long life of 50,000 hours. With each device undergoing an 8-hour extreme temperature cycle (-20℃~60℃) + 24 to 48 hours of continuous aging operation test, it effectively eliminates early failures and ensures long-term stable operation. Feedback from billboard manufacturers: “The screen quality is stable, the picture quality is clear, the brightness is strong, and frequent maintenance is not required, which saves us a lot of after-sales costs.”

The supported module models are rich (such as LD550EGY-SSA1, DV430FHB-R00, LD750DGY-SRA2, etc.), covering 16:9 standard displays from 10.1 inches to 110 inches, as well as a variety of bar screens (19.5″ to 86″) and 4:3 industrial screens (15″/17″/19″), fully meeting the customized needs of different bus stops, subway stations, and outdoor light box advertising spaces.

From modules, open displays to fully waterproof whole machines and front waterproof whole machines, RisingStar provides complete supporting solutions to help advertising equipment manufacturers improve product quality, speed up delivery cycles, and win more project competitiveness.

.

.

86-inch sunlight readable industrial-grade display-RisingStar high-brightness LCD solution

This 86-inch display leggibile alla luce del sole module adopts advanced a-Si TFT-LCD panel technology, combined with Direct-lit WLED backlight system* and high-brightness customized drive solution are designed for applications in high-intensity light environments such as bus stops, outdoor advertising, and electronic signage systems, with excellent visibility and industrial-grade reliability.

Basic parameters

Panel size: 86 inches
Resolution: 3840(RGB)×2160, Ultra HD 4K, 51PPI
Display area: 1895.04(W) × 1065.96(H) mm
Dimensions: 1922.2(W) × 1093.2(H) × 42.7(D) mm
Visible area: 1897.0(W) × 1068.0(H) mm
Pixel arrangement: RGB vertical strips
Display ratio: 16:9
Panel type: IPS (normally black mode, transmissive)

Brightness and optical performance

Standard brightness: 410 cd/m² (customizable to 2500 / 3000 / 4000 / up to 5000 nits)
Contrast ratio: 1200:1 (Typ.)
Viewing angle: 178° full viewing angle (89/89/89/89)
Surface treatment: anti-glare matte (Haze 3%), hardened coating (2H)
Display color: 16.7M/1.07 billion colors, 72% NTSC color gamut coverage
Response time: 8ms (Typ. G to G)
Operating frequency: 60Hz (supports built-in MEMC interpolation circuit up to 120Hz, 240Hz)
Structure and reliability
Panel thickness: 42.7mm, ultra-thin design
Weight: 34.1 kg (Typ.) / 35.8 kg (Max.)
Structural material: All-aluminum frame structure, lighter and more corrosion-resistant than traditional iron shell
Light source type: WLED, life ≥ 30,000 hours, including LED driver
Signal interface: V-by-One 8 lane, 56-pin port
Driving voltage: 12V (Typ.)

Environmental adaptability and quality control

Operating temperature range: 0 ~ 50°C
Storage temperature range: -20 ~ 60°C

If you need a customized high-brightness version, added touch function, waterproof whole machine structure, or other sizes (13.3″ to 110″, bar screen 19.5″ to 86″) display solution, RisingStar provides a full range of open modules and whole machine integrated solutions to meet a variety of outdoor environments and project requirements.
