In complex lighting environments such as train stations, traditional display screens often reflect light and make the content difficult to discern due to strong sunlight, which directly affects the passengers’ ticket purchasing experience. To address this pain point, we have tailored a 17-inch sunlight-readable screen solution for train ticketing equipment manufacturers. The screen has high brightness and anti-glare features, and can maintain clear display even under strong sunlight, helping equipment manufacturers to significantly improve terminal usability and user satisfaction, and is an ideal choice for outdoor/semi-outdoor ticketing equipment.

.

.

Core value of 17-inch sunlight readable screen

In response to the high standards of outdoor visibility required by train ticketing equipment manufacturers, this 17-inch sunlight readable screen provides a professional-grade solution. With high-brightness LED backlight (up to 5000 nits) and anti-glare technology, the screen can maintain clear images even under direct sunlight, ensuring that passengers can successfully complete self-service ticket purchase operations. The screen has industrial-grade stability and all-weather adaptability, supports long-term 7×24-hour operation, and significantly improves the usability and user satisfaction of the equipment in complex environments. A variety of interface and structure customization options facilitate quick integration into different types of ticketing terminals, helping equipment manufacturers create smarter and more efficient ticketing system solutions.

.

.

Deployed areas

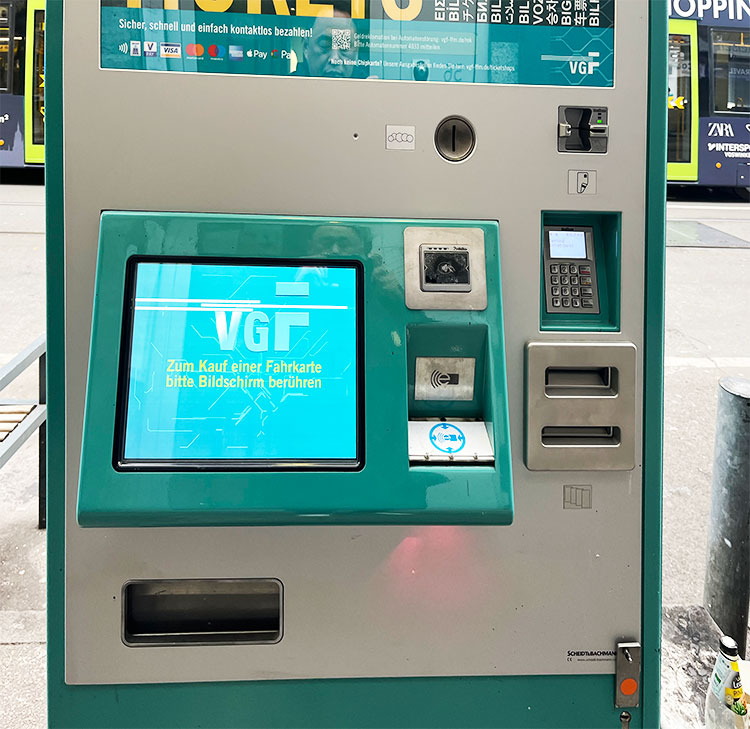

Train station self-service ticket machines and ticket gates: improve passenger ticket purchase and passage efficiency, and ensure clear operation experience around the clock;
Bus and subway self-service terminals: suitable for outside stations or semi-outdoor environments, ensuring smooth operation of passengers under different lighting conditions;
Highway toll booths and information inquiry terminals: facing strong natural light, they still clearly display important information;
Port and airport self-service equipment: meet the information display requirements of all-weather operation and complex environments;

.

.

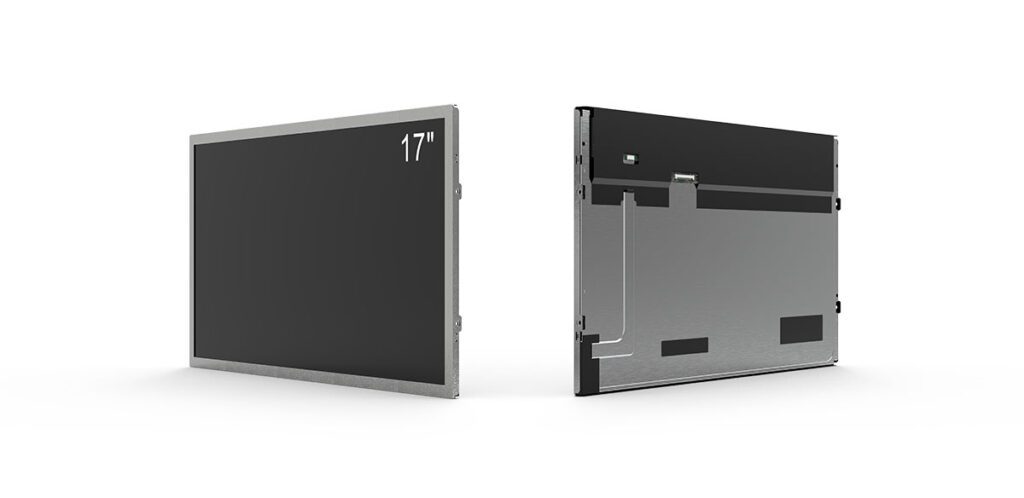

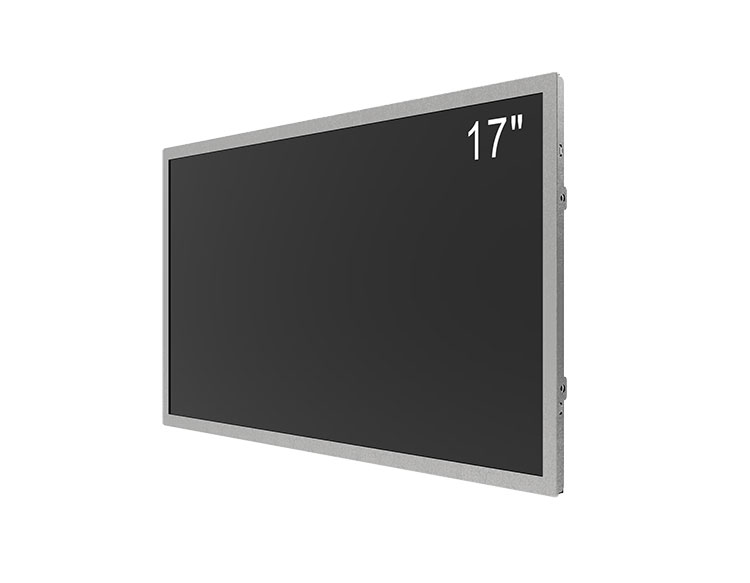

17-inch sunlight readable screen core parameters

The 17.0-inch LCD module adopts a-Si TFT-LCD technology, with a resolution of 1280×1024 (SXGA) and a pixel density of 96PPI, presenting delicate and clear images. The screen has IPS wide viewing angle technology (full viewing angle 89/89/89/89), supports normally black display mode, and ensures consistent picture performance at various installation angles.

The screen brightness is 400 cd/m² (typical value), combined with matte anti-glare surface treatment and hardened coating (3H), which significantly improves visibility and durability in strong light or outdoor environments. The contrast ratio reaches 1000:1, and the display effect is full and distinct; the color performance supports 16.7M colors and 72% NTSC color gamut, meeting the richness requirements of image and interface display.

It adopts WLED backlight system with a lifespan of up to 50,000 hours, built-in LED driver, energy-saving and stable. Support, LVDS (2-channel 8-bit, 30-pin), signal interface, power supply voltage is 5.0V, strong adaptability, easy to integrate.

The size of the whole machine is 368 (W) × 306 (H) × 14.8 (D) mm, the display area is 337.92 (W) × 270.336 (H) mm, the opening size is 341.5 (W) × 274.6 (H) mm, and the weight is about 1.26 kg. It has a compact structure and is easy to install in various industrial or rail transportation equipment.

It has an operating temperature range of -10°C to 70°C and a storage temperature of -20°C to 80°C, and can adapt to complex and harsh outdoor or semi-outdoor environments. It is widely used in industrial control, medical equipment, and rail transportation self-service ticket terminals, etc., which have high requirements for stability and display performance.
