Readability is critical in bright sunlight, and the 37-inch sunlight readable visualizzazione informazioni passeggeri provides excellent visibility. This rugged display uses advanced anti-reflective technology and a 2000-nit high-brightness LCD to provide clear, flicker-free content even in direct sunlight, allowing passengers to easily grasp real-time schedules, security alerts and route navigation information. Designed for airports, subway stations and bus terminals, this IP65-rated display combines sunlight readability and energy efficiency to transform public information delivery into a seamless visual experience.

Extreme outdoor visibility

Adopting direct backlight technology, it provides multiple high brightness options of 2500-5000nits, ensuring clear images under direct sunlight, meeting the requirements of harsh environments such as transportation hubs and outdoor advertising;

The project team chose RisingStar’s solution mainly based on its excellent industrial-grade display performance and reliability:

Industrial durability:
The all-aluminum frame structure reduces weight by 30%, and with a wide temperature test of -20℃ to 60℃ and an ultra-long life of 50,000 hours, it can adapt to extreme climates and 7×24 hours of continuous operation;

Energy efficiency and stability:
The low-heat design combined with a 48-hour aging test significantly reduces operation and maintenance costs. The open module and waterproof whole machine solution (IP65 level) can be flexibly adapted to various installation scenarios;

Technical foresight:
The 37-inch large screen with a peak brightness of 2000nits, taking into account ultra-thin body and high contrast, provides future expansion space for high-end applications such as smart cities.

‌Feedback from customers

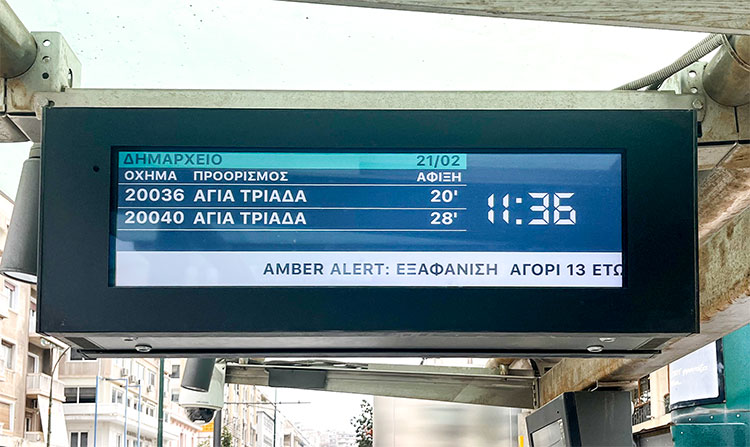

“RisingStar’s 37-inch sunlight readable display (2000nits) has exceeded expectations in bus station display projects: strong light clarity, industrial-grade stability: We particularly appreciate the 72-hour stress test process before leaving the factory, which ensures that 200 devices are 100% plug-and-play after installation, and has now been included in our “Technical Standards for Smart Transportation Display Equipment.”

Analysis of the core technology of RisingStar 37-inch LCD module‌

High-resolution strip screen design‌
Adopting the 37-inch native strip screen form, matching the 1920×540 resolution and RGB vertical strip pixel layout, combined with the 899.71×257.04mm visible area, it accurately adapts to the narrow and long space layout requirements in public transportation scenarios.

High brightness and wide viewing angle optical performance ‌
Equipped with 700cd/m² typical brightness, ADS normally black display technology and 89° full viewing angle (CR≥10), it maintains clear visibility in strong light environments, covers 72% NTSC color gamut and supports 16.7M color reproduction. Matt surface + Haze 25% anti-glare treatment effectively suppresses ambient light interference.

Dynamic refresh and response optimization ‌
Based on the native 60Hz refresh rate, 120Hz/240Hz dynamic compensation is achieved through the built-in MEMC circuit, combined with a 14ms grayscale response speed to ensure the smoothness and low latency of dynamic information display.

Industrial-grade reliability guarantee ‌
The all-aluminum structure body is reduced to 5.10kg, supports -20~60℃ wide temperature storage and 0~50℃ operating temperature, and matches the outdoor adaptability design of IP65 protection level^[refer to historical feedback logic]. The WLED backlight system provides a lifespan of 50,000 hours, reducing long-term operation and maintenance costs.

High-efficiency drive system‌
LVDS signal interface and 12V low-voltage power supply solution are compatible with mainstream control devices. Direct backlight technology achieves a 1000:1 contrast ratio, meeting the energy consumption and image quality balance requirements of digital signage and outdoor high-brightness scenes.
