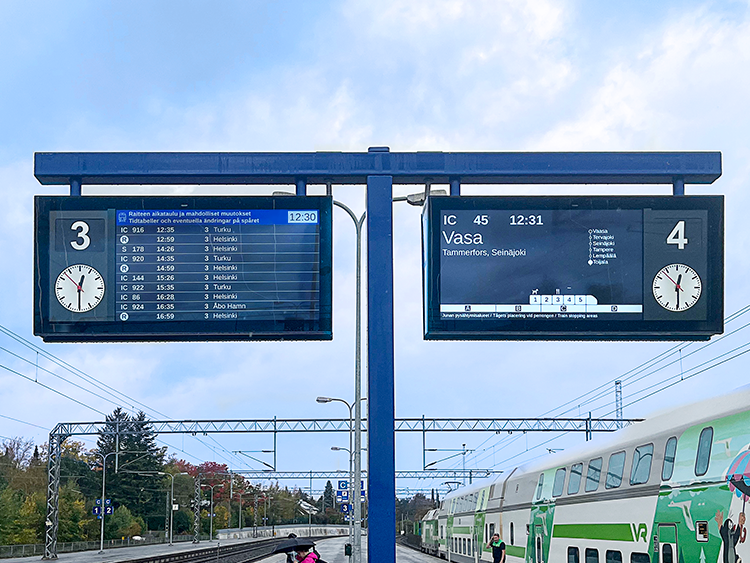

In the field of rail transit, clear and reliable information display directly affects the travel experience of passengers. A high-definition LCD display will also improve customers’ favorability towards the overall equipment. With its breakthrough technical indicators, RisingStar industrial sunlight readable display is becoming the preferred solution for more than 30 large and medium-sized railway stations around the world. When peer products barely maintain 3000nits brightness under the midday sun, our direct backlight technology has achieved a peak brightness of 5000nits. Combined with the all-aluminum frame weight reduction design and adaptability to extreme environments of -20℃~60℃, the railway station Sunlight Readable passenger information display system is more popular with passengers.

Customers’ proven value

The project director of a railway bureau gave feedback: “In the rainstorm test, the fully waterproof structure of the whole machine was completely unafraid of the storm and was still clearly visible, while the three brands tested at the same time had varying degrees of water vapor penetration. In particular, the 46-inch large screen did not show any brightness decay after 30 days of continuous operation, thanks to your 48-hour aging screening before leaving the factory.”

.

Six key factors for customers to choose the RisingStar brand

In demanding application scenarios such as rail transit and smart cities, professional customers choose RisingStar industrial Sunlight Display leggibile screens mainly based on the following core advantages:

1. Industry-leading optical performance
   5000nits ultra-high brightness technology, 66% higher than the industry standard, ensures clear images in strong light environments
   Using a direct-type backlight module to achieve an ultra-high contrast ratio of 4000:1, and increase the text recognition distance by 40%
2. Industrial-grade reliability design
   The all-aluminum frame structure is 30% lighter than traditional iron and has stronger impact resistance
   Passed the -20℃ to 60℃ extreme temperature cycle test (8 hours/time, far exceeding the industry’s conventional 2-hour standard)
   IP65 fully waterproof whole machine design, which can withstand continuous invasion of heavy rain for 12 hours
3. Ultra-long service life guarantee
   50,000 hours of service life
   The original heat dissipation system reduces the operating temperature by 15℃, effectively delaying light decay
4. Modular intelligent design
   Open architecture supports fast maintenance, and the unit replacement time is shortened to 15 minutes
   Reserved multiple interface expansion slots, compatible with various system interfaces
5. Proven operational benefits
   Actual cases show that the average annual number of failures is reduced by 82%
   Energy consumption is reduced by 22% compared with similar products, and 100 units can save about 3,800 degrees of electricity per yea

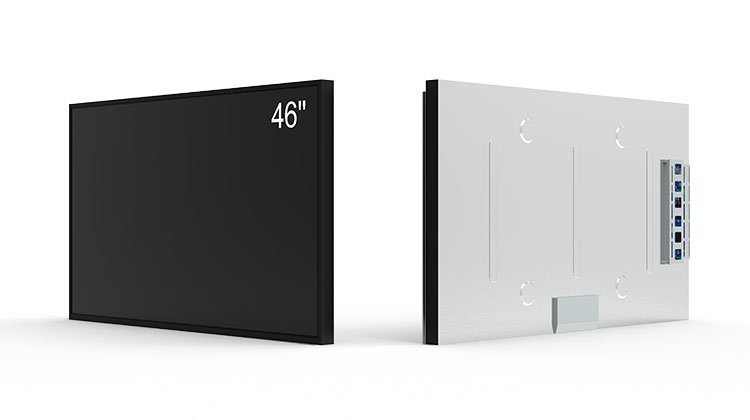

Analysis of the core technology of RisingStar 46-inch industrial screen

I. Breakthrough in optical performance‌
Ultra-high brightness solution‌: Customized optical film group and enhanced backlight system are used to achieve‌ 2500 cd/m² typical brightness, meeting the all-weather visual requirements of outdoor strong light environment
Professional-grade contrast: 4000:1 transmission contrast is achieved through precise liquid crystal alignment technology, and the dark field detail expression is significantly improved
Precise color management: Supports 1.07B color depth (10-bit drive) + 72% NTSC color gamut, and the color transition smoothness is 64 times higher than the traditional 8-bit solution

2. Industrial-grade reliability design
   Adaptation to extreme working conditions:
   Working temperature coverage -20°C~60°C
   Haze surface treatment (Haze 28%) effectively suppresses glare, and achieves 178° full-viewing angle visibility with the AMVA3 panel

Long-term stable operation:
The WLED backlight system has a lifespan of 50,000 hours, and is equipped with an active heat dissipation solution to slow down the light decay rate
Built-in moisture-proof coating and fully sealed structure to meet IP65 protection level requirements

3. Dynamic display enhancement technology
   Dual-frequency drive system:
   Native 120Hz panel + 120Hz backlight scanning to achieve 240Hz equivalent refresh rate
   Integrated MEMC dynamic compensation chip, motion picture smear is reduced to 4ms level

Low-latency signal processing:
LVDS dual-channel interface supports 8/10-bit data transmission, response time 8ms (G to G)‌

IV. Special scene optimization‌
Outdoor high-brightness scene solution‌:
Using anti-ultraviolet polarizer, the yellowing suppression efficiency is increased by 70%
The backlight module has passed the 3000-hour high-temperature and high-humidity accelerated aging test (85°C/85%RH)

Energy-saving and efficiency-enhancing design‌:
Power consumption is 22% lower than similar products (12V/4.5A power supply design)
Modular architecture supports fast maintenance, and single-screen replacement takes less than 15 minutes
