Sunlight Readable Display | Panel | Modules-RisingStar

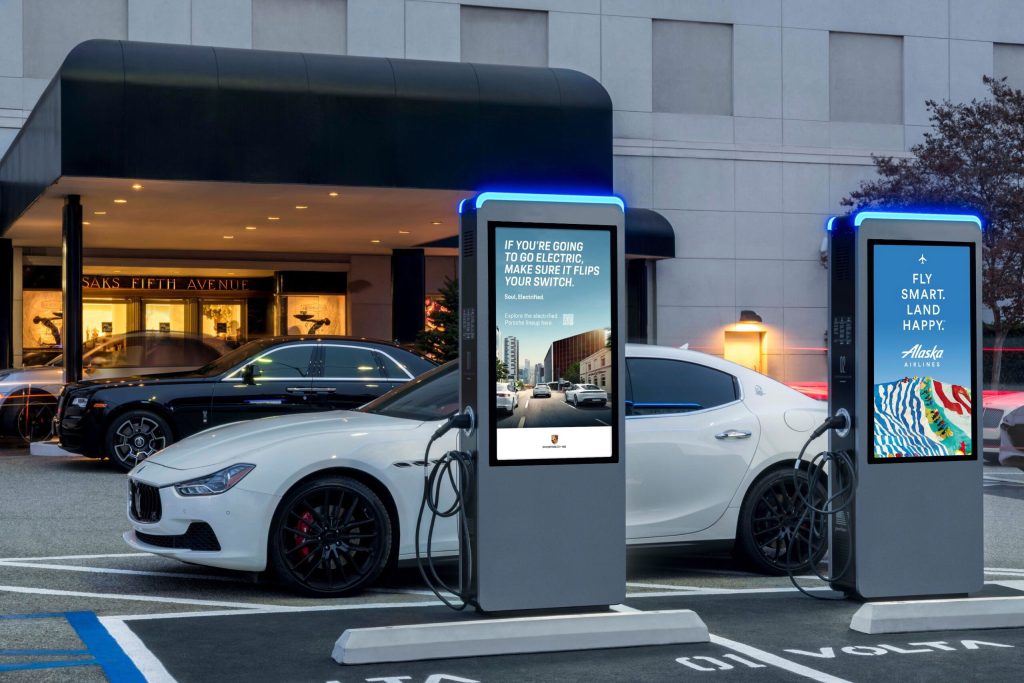

Select the correct EV charging station LCD digital display panel
The correct EV charging station digital display LCD digital display panel is an important component of an electric vehicle charging station. It provides a visual interface for users to monitor and control the charging process. The display panel typically features a high-resolution LCD screen that can show various information, such as charging status, battery capacity, charging rate, and time remaining. It may also have touch screen capabilities for easier interaction. Additionally, the display panel can provide information about the electricity cost, renewable energy usage, and environmental impact of the charging process. With its user-friendly design and clear display, the LCD digital display panel ensures a seamless and efficient charging experience for electric vehicle owners.
Increasing demand
The global demand for electric vehicles will increase sharply in 2024. The electric vehicle industry is expected to grow rapidly in the next few years, and the demand for charging piles will increase significantly. Consumers are increasingly switching from conventional cars to electric vehicles, and policies restricting the use of fossil fuel vehicles have largely supported this market boom.

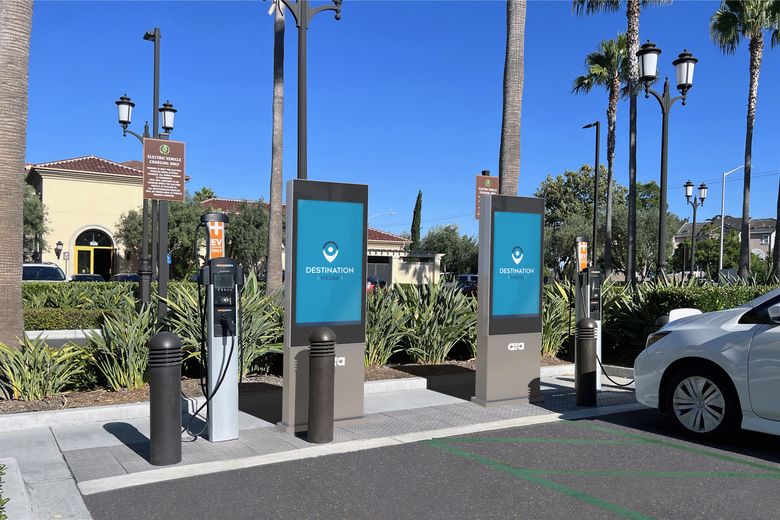

Broad market prospects
According to the International Energy Agency, global electric vehicle sales are expected to reach 15 million to 20 million units by 2025. The global EV charging infrastructure will grow by about 50 million units, including 10
million public charging infrastructure units.
Excellent marketing
People can brush a specific charging card on the human-computer interaction interface provided by the charging pile to carry out the corresponding charging mode, charging time, cost data printing and other operations. Charging
pile display can display charging amount, cost, charging time and other data. It is easy to use and saves the environment from emissions.

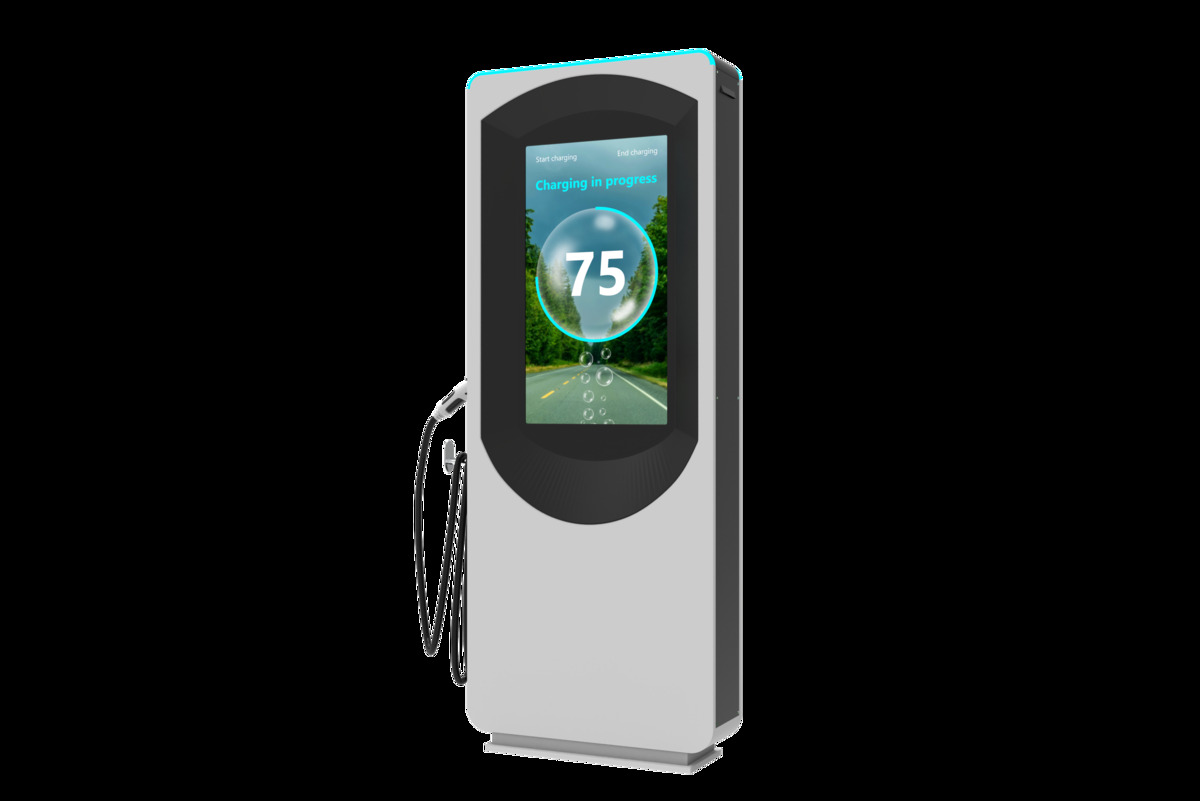

EV Charging Station Display
— Sunlight Readable Outdoor LCD Solutions
Reliable, high-brightness displays engineered for outdoor EV charging infrastructure. Up to 5000 nits, IP65 protection, wide temperature range and CMS support for advertising and operational data.
Why Choose a Dedicated Display for EV Charging Stations?
EV charging stations operate in varied outdoor environments where sunlight, weather and temperature extremes impact display readability and reliability. RisingStar displays ensure clear information delivery—charging status, pricing, QR payment codes and advertising content—throughout the day and across seasons.
Sunlight Readable
Optical bonding and up to 5000 nits backlight ensure legible content under direct sun.
Industrial Durability
IP65 waterproof rating, corrosion-resistant housing, and extreme temperature tolerance.
Energy Efficient
Smart LED backlight drive and temperature-controlled cooling minimize power draw while keeping the screen bright.
Integrated CMS & IoT
Remote content management, over-the-air updates and real-time monitoring for ads and operational info.
Technical Specifications
Example Model: RS550MNX02D03-BK
| Screen Size | 55" |
|---|---|
| Brightness | Up to 5000 nits |
| Resolution | 1920 × 1080 (FHD) |
| Contrast Ratio | 3000:1 |
| Viewing Angle | 178° / 178° |
| Operating Temp | –30 °C ~ +70 °C |
| Ingress Protection | IP65 |
| Backlight Lifetime | ≥ 50,000 hours |
| Housing | Aluminum alloy, powder coated |
| Mounting | Pole / Wall / Integrated pedestal |
Design & Reliability Notes
- Direct‑sun optical bonding reduces internal reflection and improves contrast.
- Anti‑glare tempered glass with AG coating for reduced specular reflection.
- Active thermal management: heat pipes + forced convection design for continuous 24/7 operation.
- Modular components for quick field replacement and simple maintenance.
- Certification: CE, RoHS, EMC (custom certifications available on request).
Technical Comparison Table
| Category | Typical Model | Brightness (nits) | Protection | Temp Range | Application | Notes |
|---|---|---|---|---|---|---|
| Entry-Level Outdoor | LG 22XE1J‑B | ~1,500 | IP56 | –20 °C ~ +50 °C | Semi‑outdoor / shaded | Low brightness, not for direct sunlight |
| Standard Outdoor | Samsung OHA‑S 55″ | ~3,500 | IP56 + IK10 | –30 °C ~ +60 °C | Public charging / transit hubs | Balanced performance, mid‑range solution |
| Enhanced Outdoor | DynaScan DO552LR5 | ~3,500 | IP65/IP66 | –30 °C ~ +65 °C | High traffic charging + ads | Strong dustproof and waterproof protection |
| High‑Brightness / Dual‑Use | Keewin 55″ Touch LCD | ~2,500 | IP66 | –30 °C ~ +70 °C | Interactive ad + charging | Supports touch, interactive use |
| Extreme High‑Brightness | Peerless‑AV Xtreme 43″ | >4,000 | IP68 | –30 °C ~ +70 °C | Full‑sun, 24/7 station | Fanless sealed, minimal maintenance |
| RisingStar RS Series | 32″–86″ models | 3,000 – 5,000 | IP65 / IP67 | –30 °C ~ +70 °C | EV charging, retail, transit | Ultra‑high brightness, low power, OEM support |
Quick selection recommendation: For direct sunlight exposed installations choose displays ≥ 3000 nits; for high‑traffic commercial hubs and advertising use choose ≥ 4000–5000 nits.
Integration, CMS & Payment Support
RisingStar displays are designed to integrate with common EV charging controllers and back‑end systems. Our panels support:
- Remote Content Management System (CMS) for scheduling ads and messages
- REST / MQTT APIs for telemetry and status reporting
- Touchscreen (optional) for payment or user input
- QR code / NFC overlays for contactless payment workflows
Power & Network
Supports PoE where applicable, 12–48VDC input options, and standard Ethernet/Wi‑Fi/4G connectivity for remote sites.
Security
Secure boot, signed firmware updates and remote device management to reduce operational risk.
Case Studies
Commercial Parking Hub — 55" 5000 nits
Deployed at a major shopping center: integrated charging columns with 55" RisingStar displays. Outcome: 30% increase in digital ad engagement and clearer user interactions during peak daylight hours.
Highway Service Area — Pole Mounted 32"
Fast‑charging lanes equipped with 32" sunlight readable displays providing live charging status and wayfinding. Reliable operation across –20 °C to +55 °C seasonal cycling.
Frequently Asked Questions
Can indoor screens be used at outdoor charging stations?
No — indoor screens lack sufficient brightness, waterproofing and thermal design to withstand direct sunlight and outdoor conditions. Use purpose-built outdoor displays.
How does brightness affect power consumption?
Higher brightness can increase power draw; RisingStar uses efficient LED drivers and ambient light sensors to dynamically adjust brightness and conserve energy.
Do you offer custom sizes and integration services?
Yes. We provide sizes from 10.4" to 86", custom housings and OEM/ODM integration including payment interface integration and mounting options.
