Sunlight Readable Display
Engineered for extreme outdoor environments, our displays deliver clear visibility even under direct sunlight, reducing maintenance costs and improving user engagement.
- wb_sunny Up to 5000 nits sunlight readable
- thermostat -20°C to 70°C industrial grade
- verified IP65/IP66 waterproof rated
Product Range
High brightness LCD displays for outdoor and industrial use — sun-readable, built to last.
21.5 Inch High Brightness Sunlight Readable Display
Model No.: RS215FHB-GE15
Size: 21.5 inch
Resolution：1920*1080 / 3840(RGB)×2160
Brightness：500 to 5000 Nits
Operating Temperature：-20～70℃
MTBF：50000H
23.8 inch high brightness digital signage display
Model No.: RS23.8FHB-GE15
Size: 23.8 inch
Resolution：1920*1080 / 3840(RGB)×2160
Brightness：500 to 5000 Nits
Operating Temperature：-20～70℃
MTBF：50000H
27 inch Super Thinner Sunlight Readable LCD Panel
Model No.: RS270FHB-GD20
Size: 27 inch
Resolution：1920*1080 / 3840(RGB)×2160
Brightness：500 to 5000 Nits
Operating Temperature：-20～70℃
MTBF：50000H

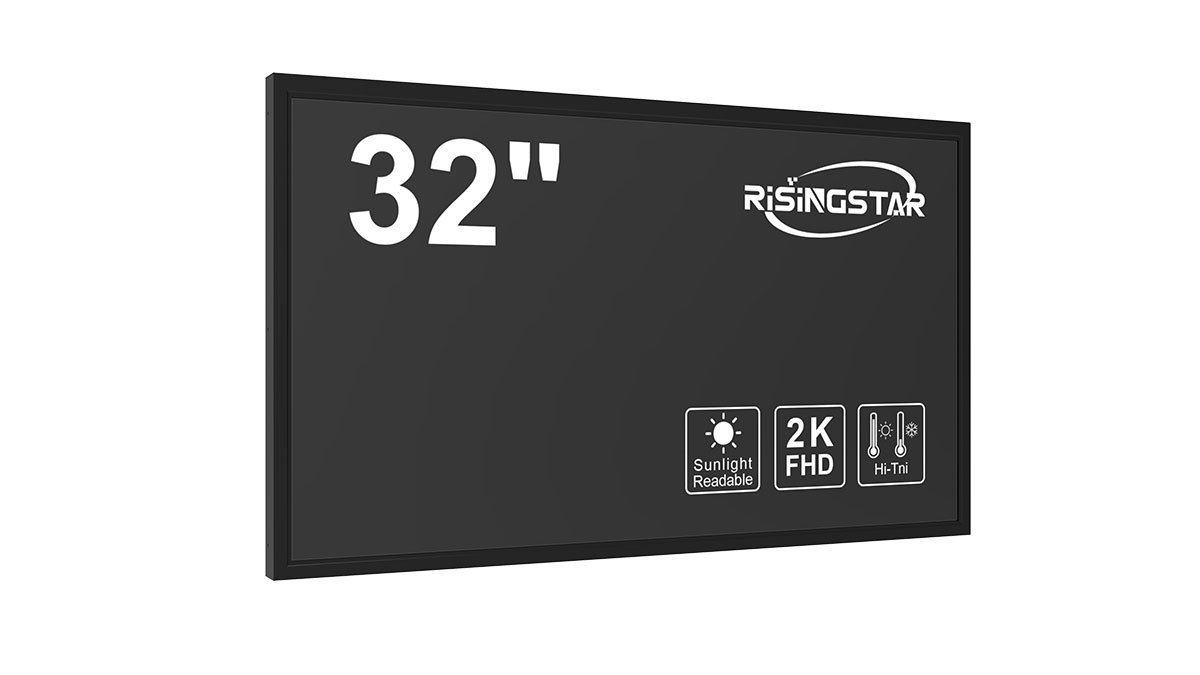

32 Inch High Brightness Sunlight Readable LCD Panel
Model No.: RS320HAN-GD30
Size: 32 inch
Resolution：1920*1080 / 3840(RGB)×2160
Brightness：1000 to 5000 Nits
Operating Temperature：-20～70℃
MTBF：50000H
43 inch Sunlight Readable Display
Model No.: RS430ENT-GD30
Size: 43 inch
Resolution：1920*1080 / 3840(RGB)×2160
Brightness：500 to 5000 Nits
Operating Temperature：-20～70℃
MTBF：50000H
46 Inch High Brightness Sunlight Readable LCD Panel
Model No.: RS460EPY-GD30
Size: 46 inch
Resolution：1920*1080 / 3840(RGB)×2160
Brightness：1000 to 5000 Nits
Operating Temperature：-20～70℃
MTBF：50000H

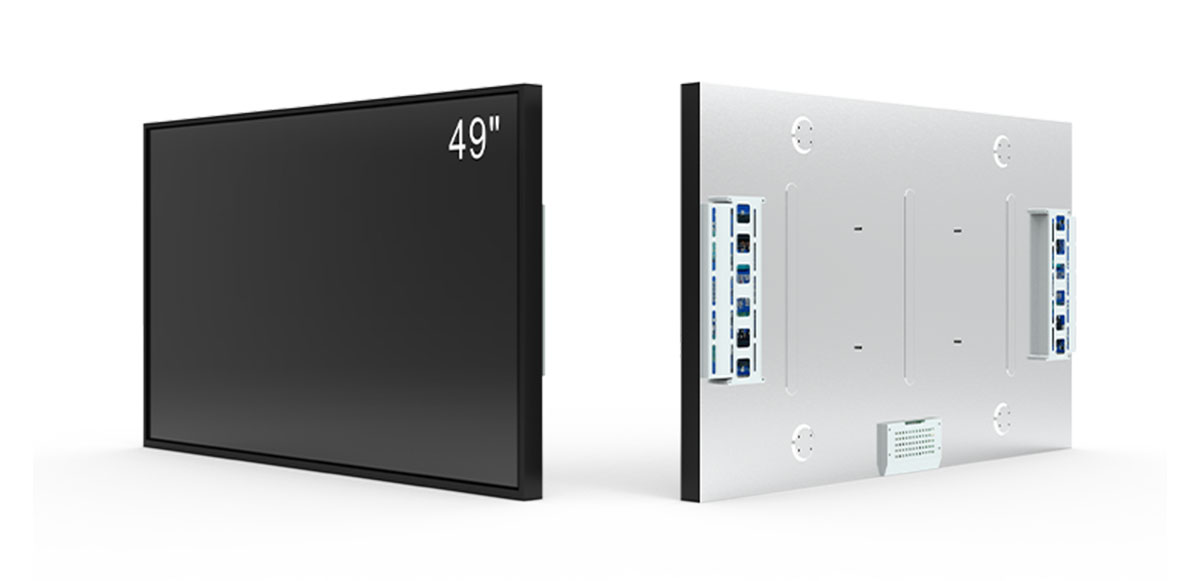

49 Inch High Brightness Sunlight Readable Panel
Model No.: RS490EPY-GD30
Size: 49 inch
Resolution：1920*1080 / 3840(RGB)×2160
Brightness：1000 to 5000 Nits
Operating Temperature：-20～70℃
MTBF：50000H

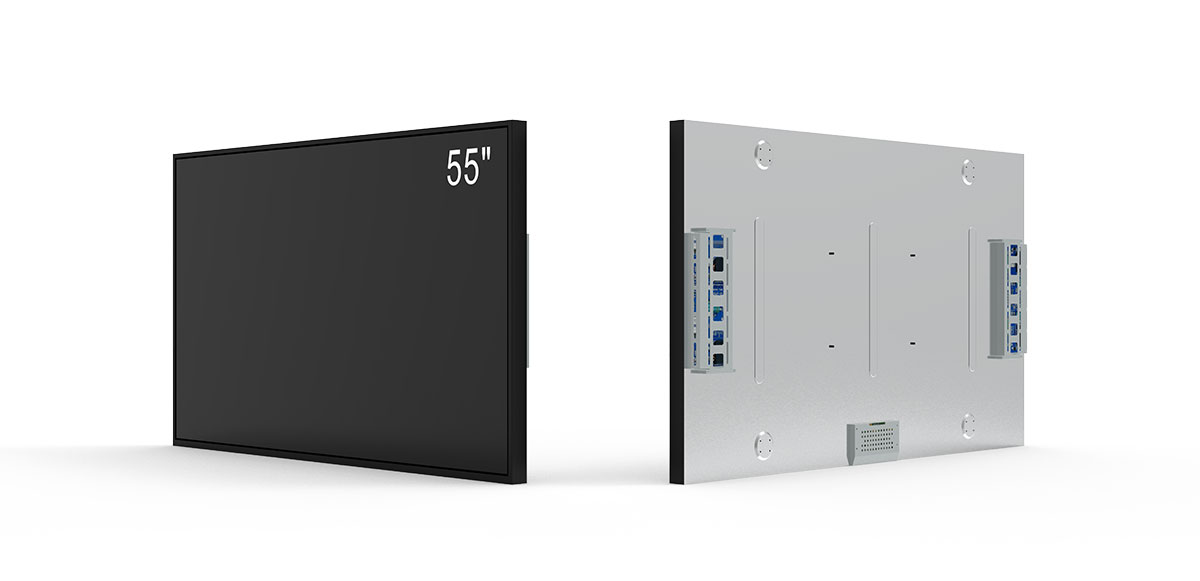

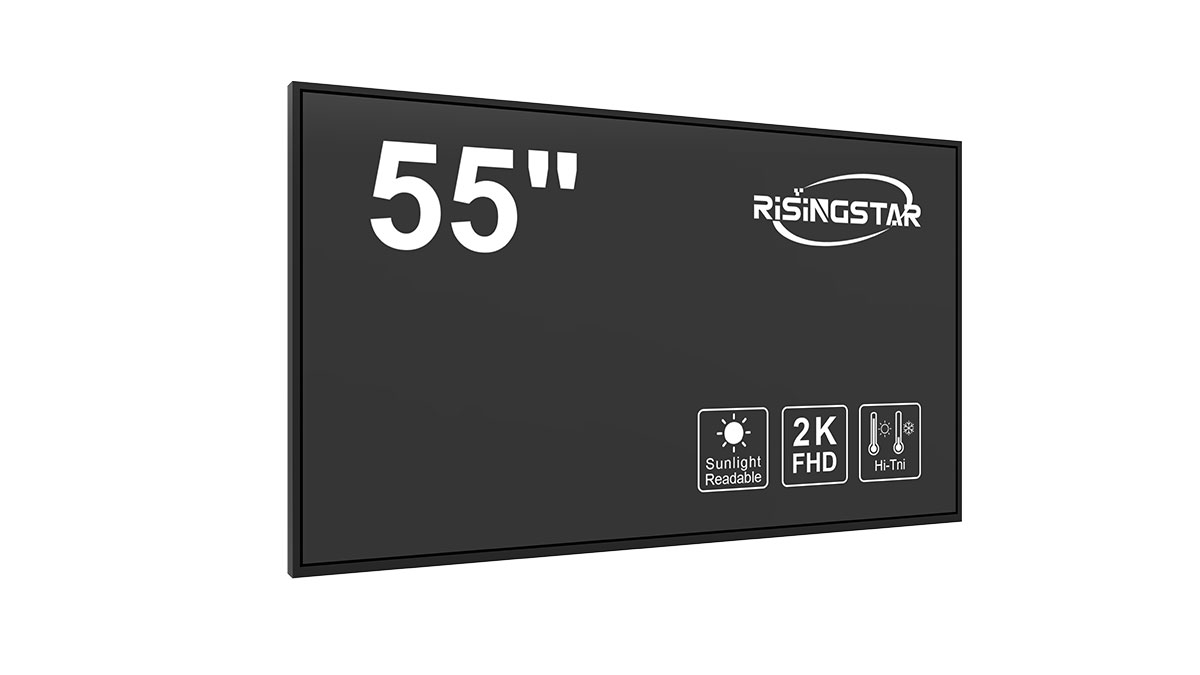

55 Inch Sunlight Readable Wide Temperature LCD Panel
Model：RS550DPY-GD45
Size：55 Inch
Resolution：1920*1080 / 3840(RGB)×2160
Brightness：1000 to 5000 Nits
Operating Temperature：-20～70℃
MTBF：50000H
Business Scope
From standard LCD modules to fully waterproof outdoor displays — available in 2K and 4K resolutions.

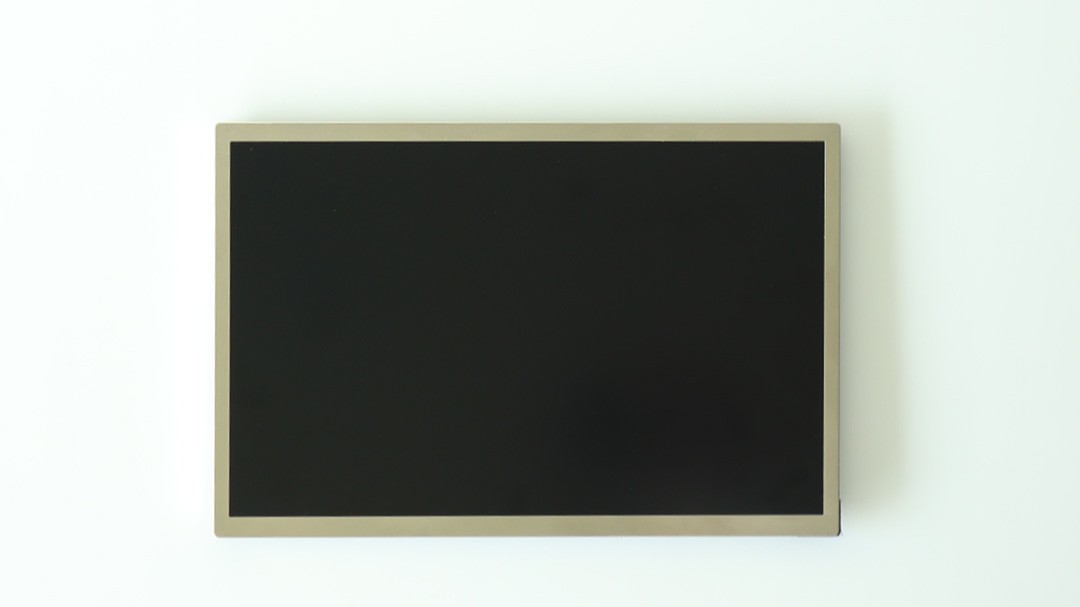

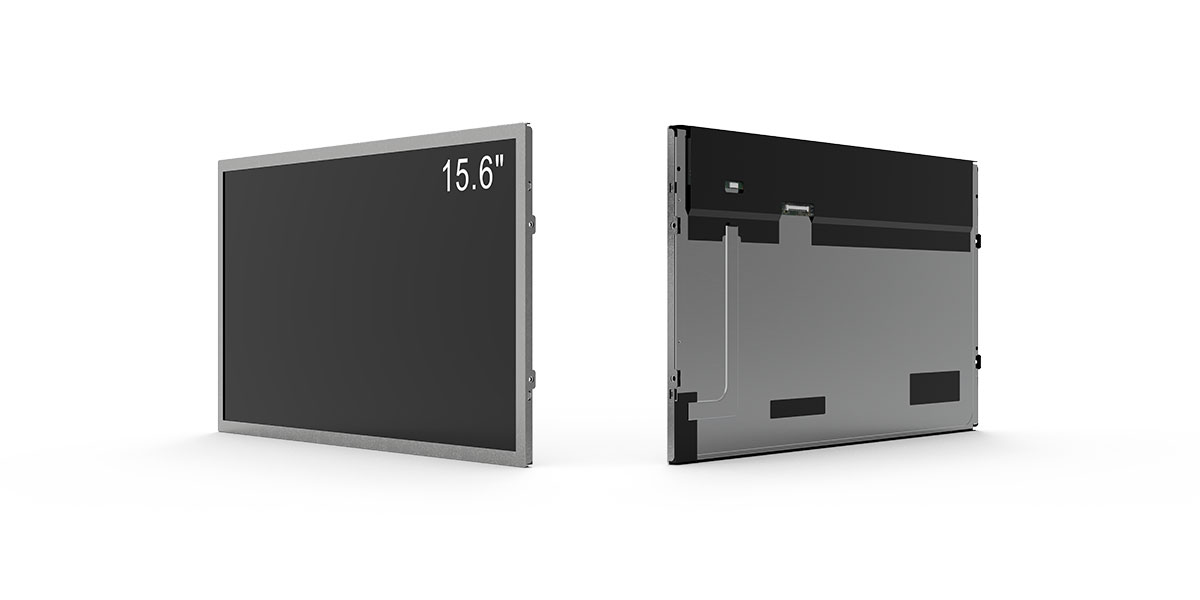

LCD Module
Industrial-grade high brightness LCD modules, ideal for customization and embedded applications.
Open Frame Display
Versatile open-frame monitors for kiosks, POS, and industrial installations, supporting 2K/4K resolutions.
Fully Waterproof Display
Sealed industrial monitors designed for harsh outdoor environments and extreme conditions.
Front Sealed Waterproof
Elegant front-sealed design, fully IP65-rated, ideal for outdoor digital signage and kiosks.
How We Achieve True Sunlight Readability
Sunlight readability comes from the combination of panel optics, backlight strategy, enclosure thermal design, and anti-reflective surface treatments — all working together.
Optical Design & Anti-Reflection
Optical bonding with high-index resin removes internal air gaps, reducing reflection. Combined with multi-layer AR coatings and low-glare glass to preserve contrast in bright ambient light.
Backlight & Brightness Control
Direct LED backlight arrays tuned for uniformity and longevity. Auto-brightness sensor and scheduled dimming balance visibility with energy efficiency for local ordinances.
Thermal Management & Reliability
Extruded aluminium chassis and thermal interface design maintain stable LED temperatures, ensuring consistent colour performance and long-term reliable operation.
Environmental Protections
IP65/IP66 enclosures, salt-spray resistant coatings, UV-stable gasketing and conformal coating on PCB assemblies — built for coastal and freeze/thaw climates.
Representative Specifications
| Attribute | Typical Value | Notes |
|---|---|---|
| Brightness | Up to 5000 nits | Adaptive auto-dimming for night & energy saving |
| Contrast Ratio | 1000:1 (typ) | Optical bonding enhances perceived contrast in sunlight |
| Front Reflection | < 2.5% (with AR) | Low-glare glass + AR coating stack |
| IP Rating | IP65 / IP66 | Sealed connectors & desiccant options |
| Operating Temperature | -20°C to 70°C | Optional heater for extreme cold starts |
| Backlight Life | Long-life LED | Designed for years of reliable outdoor use |
| Certifications | CE, RoHS, EMC | Custom options for REACH / WEEE compliance |
Regulatory Compliance & Global Standards
Products engineered to meet international procurement expectations — CE/EMC/LVD directives, RoHS/REACH restrictions, and local environmental standards. Designed with municipal lighting ordinances and night-time dimming in mind.
Global support: procurement teams increasingly require lifecycle data, environmental declarations and local support options. We offer technical files, logistics & customs support, and local partner service agreements to speed deployment worldwide.
Real-World Deployments
Trusted worldwide for reliable outdoor display performance.

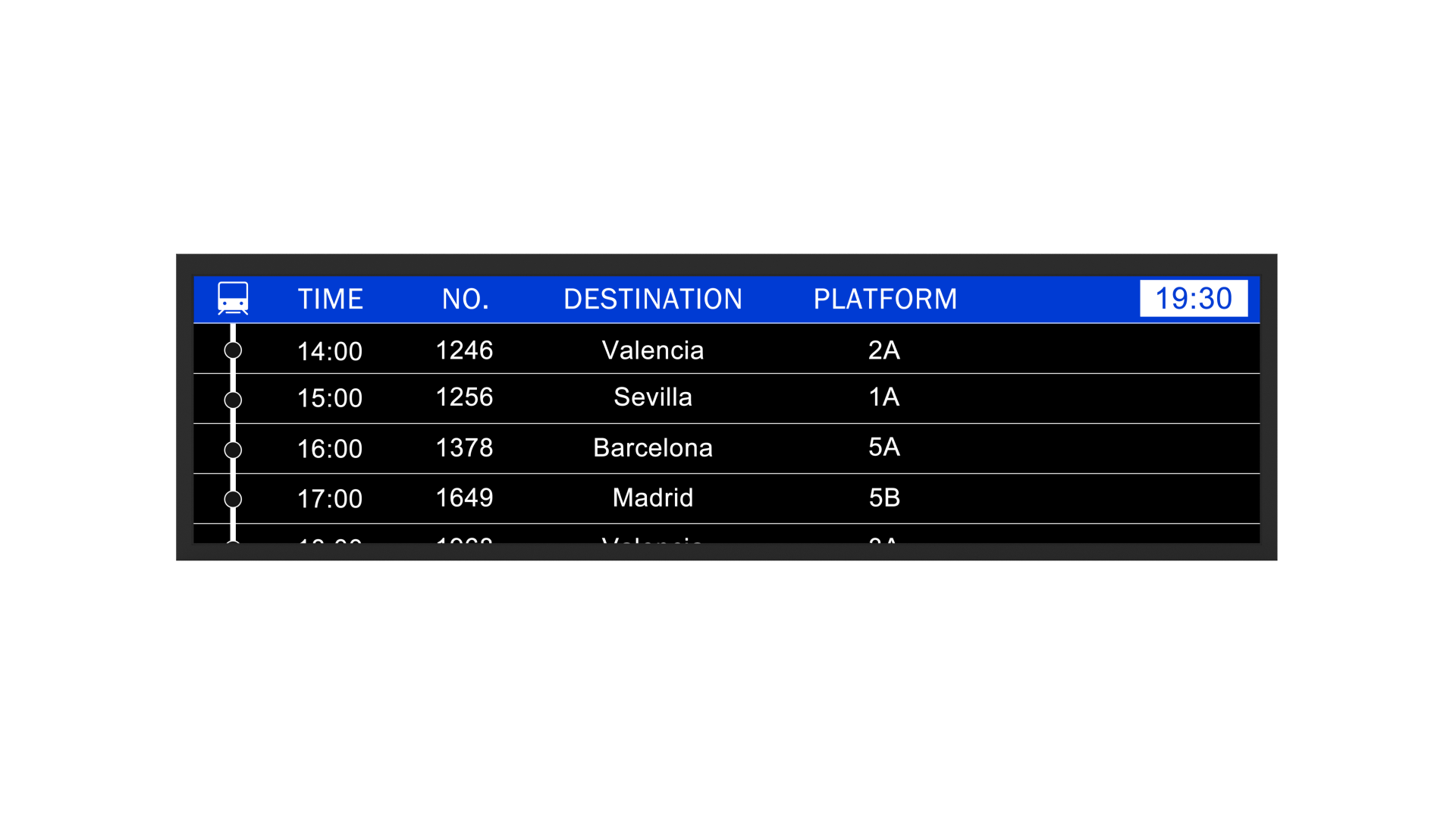

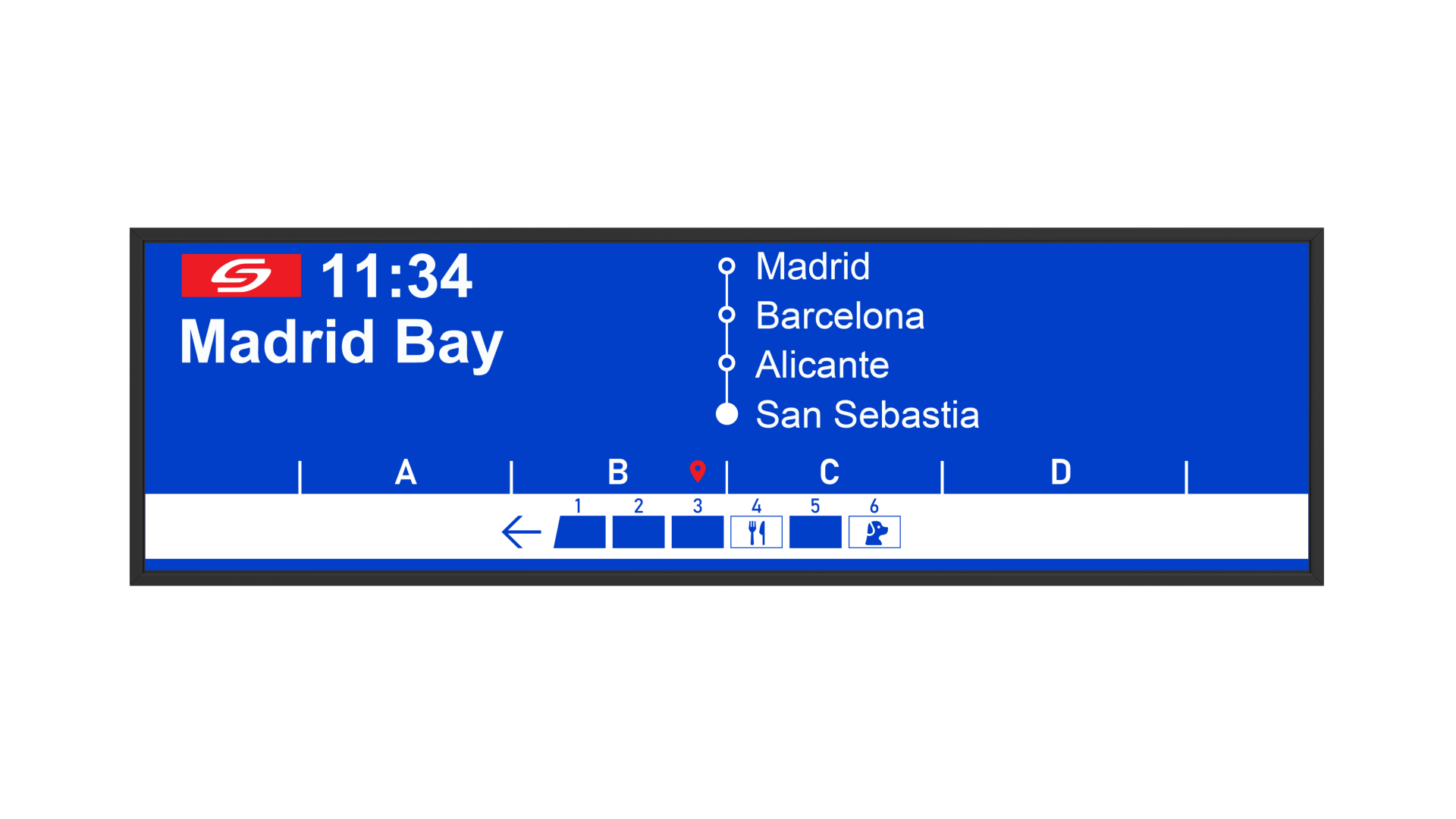

Urban Transit Hubs
Integrated into tram and bus shelters, delivering consistent passenger information under low winter sun angles and heavy rain.
EV Charging Stations
Salt-spray resistant finishes and IP66 seals kept displays operational in seaside marinas. Adaptive brightness complied with local lighting rules.
Retail & Digital Facades
Large-format panels replaced legacy static signage at multiple flagship stores, improving daytime readability and campaign agility.
Buyer's Guide
How to choose the right sunlight-readable display for your application.
-
1
Define ambient conditions Latitude, typical sun angles, reflections from nearby glass or water surfaces.
-
2
Set performance targets Required brightness, minimum contrast, expected viewing distance and angle.
-
3
Confirm environment Coastal vs inland, freeze/thaw cycles, vandal risk (IK rating), maintenance access.
-
4
Energy & dimming Local ordinances often require night dimming — confirm scheduling & sensor integration.
-
5
Compliance & lifecycle Request CE technical file, RoHS statement and recommended spare parts plan for long-term reliability.
Frequently Asked Questions
A: For moderate sunlight environments, 1,000–2,000 nits is often sufficient. For direct sun or reflective environments, 2,500+ nits with auto-adjustment is recommended.
A: All units support scheduled dimming, ambient sensor control, and programmable brightness profiles to meet municipal regulations.
A: Yes. We collaborate with global partners for logistics, installation support and warranty servicing. Local SLA options available per region.
A: Optional IK-rated front glass, tamper-proof fasteners and recessed mounts are available for high-risk locations.
Our Panel Suppliers
We source A/A+ grade panels from world-leading manufacturers to ensure the highest quality for every project.
