55 Inch Outdoor TV
Model No.: RisingStar-55OHA
Size: 55 inch
Resolution: 3840*2160
Brightness: 2000 nits
Category: Outdoor TV
MTBF：50000H
RS185E0M-GE10 Specification
| Panel Brand | RisingStar | Panel Model | RS185E0M-GE10 |
| Panel Size | 18.5″ | Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920×1080 | Pixel Format | RGB Vertical Stripe |
| Display Area | 409.8(W)×230.4(H) mm | LCD screen | ADS |
| Outline Size | 430.4 × 254.6 × 13.4 (H×V×D) | Surface | Hard coating(3H), Anti-glare low reflection treatment of the front polarizer (Haze 25%) |
| Brightness | 1000 (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | Display Mode | S-IPS, Normally Black, Transmissive |
| Display Colors | 16.7M 68% NTSC | Response Time | 6 (Typ.)(G to G) ms |
| Frequency | 60Hz | Supply voltage | 5.0V (Typ.) |
| Weight | TBD (Typ./Max.) | Signal Interface | LVDS 30 pins |
| Environment | Operating Temp.:-20℃~70℃; Storage Temp.:-20℃~70℃ | ||
.
.
RisingStar Physical Products
55" Outdoor TV Case
.
.

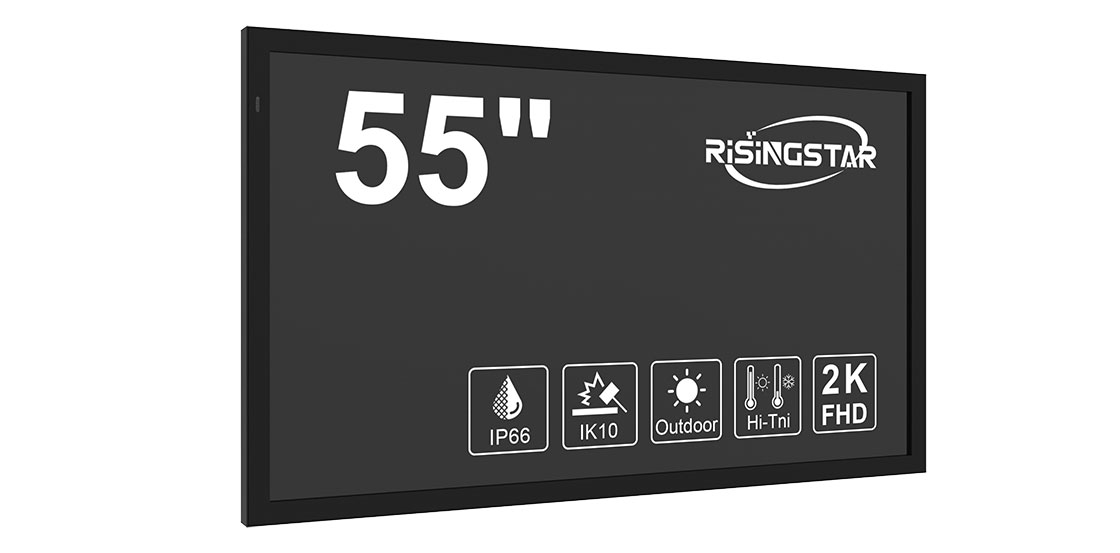

RisingStar 55OHA – 55″ 4K Ultra High Brightness Outdoor TV with Netflix & YouTube
Brilliant clarity in full sunlight. Stream, advertise, and engage – anywhere, anytime.
Overview
The RisingStar 55OHA is a professional-grade 55-inch 4K outdoor TV engineered for sunlight-readable visibility and 24/7 performance. With an ultra-high brightness of 2,000 nits, this outdoor digital display maintains vivid colors and deep contrast even under direct sunlight. Featuring an industrial-grade LCD panel with direct-type LED backlight, a durable aluminum enclosure, and IP65 weatherproof protection, it’s ideal for outdoor entertainment, digital signage, EV charging kiosks, transportation hubs, and commercial installations.
This smart outdoor TV integrates built-in Netflix and YouTube apps, offering both entertainment streaming and commercial advertising functions. The 55OHA merges industrial reliability with consumer convenience, providing an all-in-one solution for outdoor environments where image performance and endurance matter most.
Key Features
Ultra-High Brightness 2,000 nits: Perfectly visible in bright daylight or direct sunlight.
4K UHD Resolution (3840 × 2160): Delivers lifelike detail and crisp image quality.
Sunlight Readable LCD Panel: Direct-type LED backlight ensures even brightness and high contrast.
Weatherproof Design (IP65 Rated): Resistant to rain, dust, humidity, and temperature fluctuations.

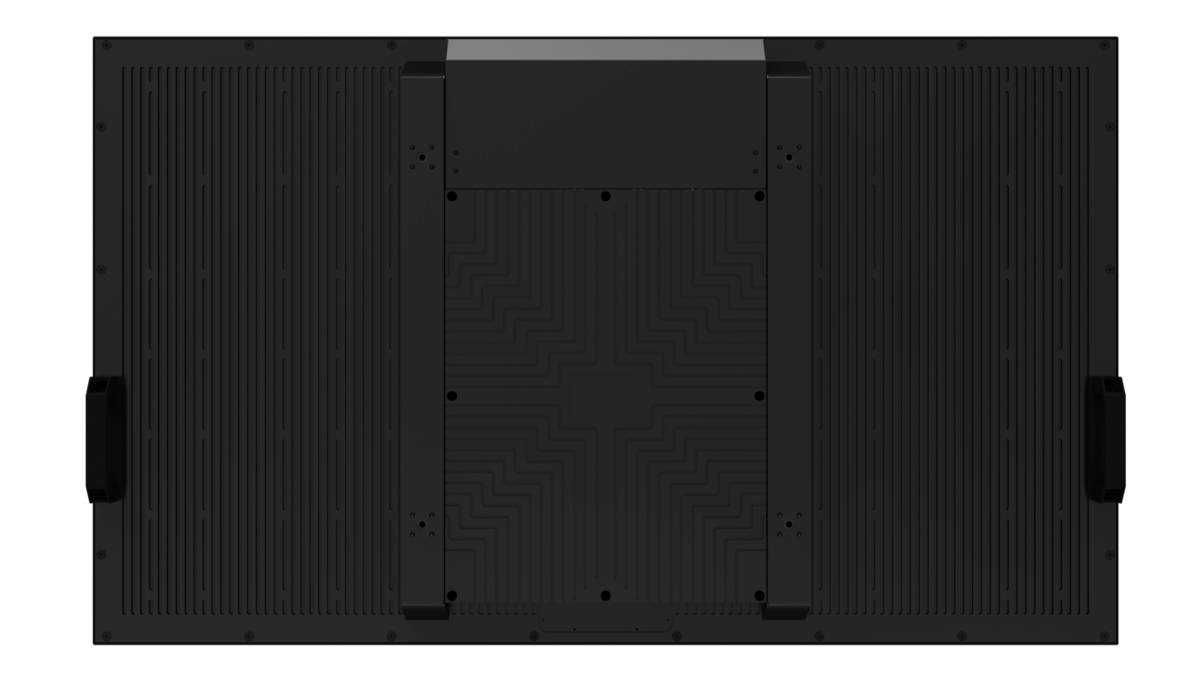

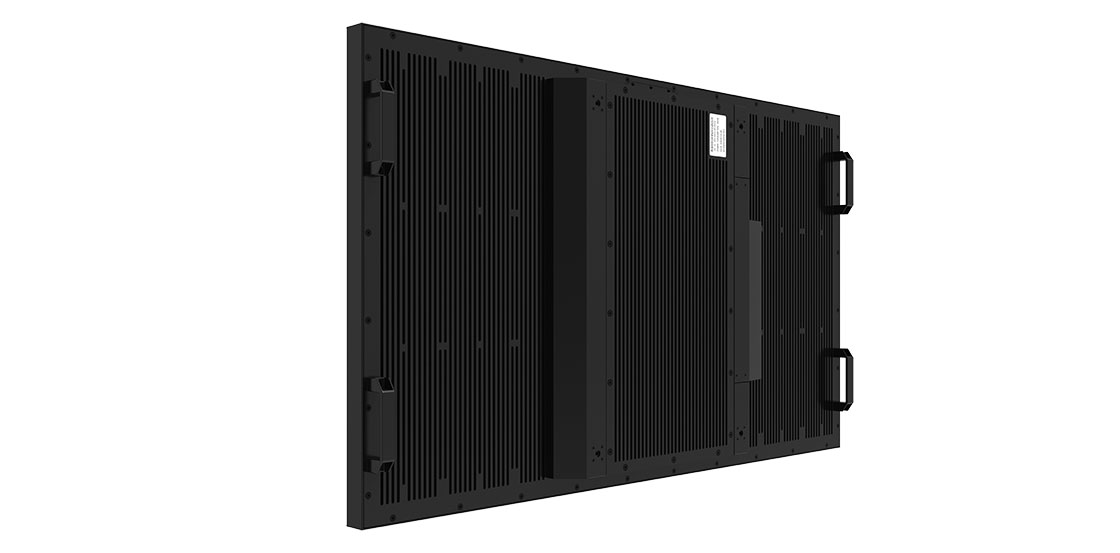

Rugged Aluminum Structure: Lightweight, anti-corrosion, and thermally efficient for long outdoor use.

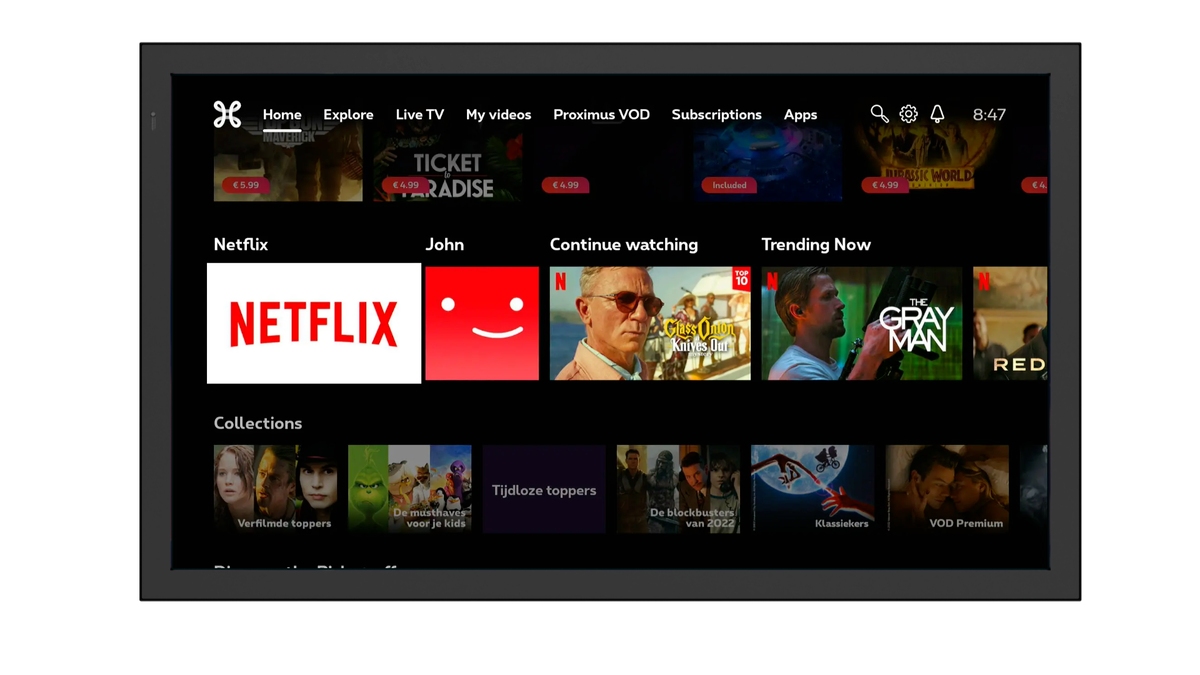

Smart Online Platform: Built-in Netflix, YouTube, and app connectivity for digital streaming.
Energy Efficient & Long Lifespan: Designed for 50,000 hours of continuous operation with low power consumption.
Wide Temperature Range: Reliable performance from –20 °C to +70 °C, ideal for all outdoor climates.
Flexible Mounting: Supports VESA mounts, portrait/landscape installation, and kiosk integration.
Multiple Applications: For retail signage, transportation, EV chargers, gas stations, hospitality, and public information displays.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | RisingStar-55OHA |
| Display Size | 55″ (diagonal) |
| Resolution | 3840 × 2160 (4K UHD) |
| Brightness | 2,000 nits (typical) |
| Contrast Ratio | 1200:1 (typical) |
| Backlight Type | Direct LED backlight |
| Viewing Angle | 178° (H) / 178° (V) |
| Operating Temperature | –20 °C ~ +70 °C |
| Storage Temperature | –30 °C ~ +80 °C |
| Lifespan | 50,000 hours |
| Enclosure Material | Aluminum alloy |
| Front Protection | IP65 waterproof & dustproof |
| Power Supply | AC 100 – 240 V, 50/60 Hz |
| Smart OS | Built-in Netflix / YouTube (Android-based) |
| Connectivity | HDMI, USB, Wi-Fi, LAN |
| Mounting | VESA standard, wall-mount / kiosk compatible |
| Certifications | CE / RoHS / Outdoor Signage Standards |
| Warranty | 3 years (extendable) |
Application Scenarios
The RisingStar 55OHA is more than an outdoor TV – it’s a multi-purpose high brightness digital signage display. It fits perfectly in:
EV Charging Stations – Stream ads or guidance videos at outdoor chargers.
Transportation Hubs – Use as passenger information displays in rail, metro, or bus terminals.
Retail & Hospitality – Attract customers with vivid storefront media or outdoor menu boards.
Fuel Stations – Display promotions, weather updates, and live content beside pumps.

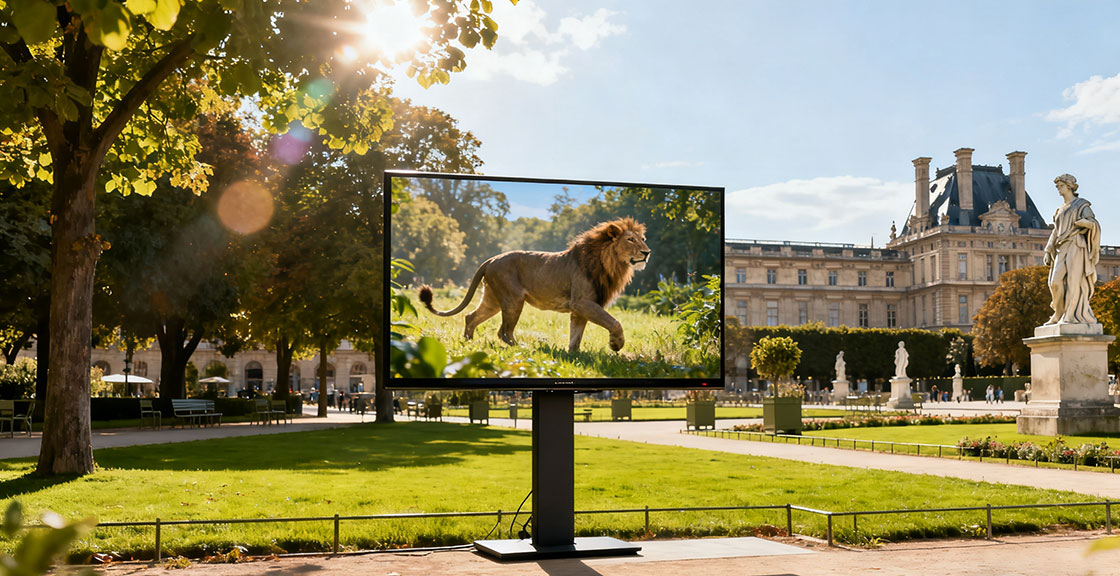

Outdoor Venues – Provide entertainment or brand engagement in open-air events and cafes.
Wherever visibility and durability are essential, the 55OHA ensures clear, reliable performance — even under extreme sunlight or challenging weather.
Engineered for Reliability
Every RisingStar outdoor display undergoes rigorous testing including vibration, thermal shock, humidity, and UV resistance. The system’s industrial-grade components ensure 24/7 operation and stable image output over long lifecycles. RisingStar’s direct-backlight architecture minimizes heat buildup while maintaining high luminance with reduced energy use — an ideal balance between performance and efficiency.
About RisingStar
With over 15 years of expertise in high brightness LCD and outdoor display technology, RisingStar is a trusted manufacturer serving global markets across transportation, energy, and retail sectors. Our engineering team designs and tests all products according to international industrial standards, ensuring reliability in mission-critical outdoor environments.
From sunlight readable LCD panels to custom passenger information systems, RisingStar provides display solutions trusted by system integrators and distributors worldwide.
Call to Action
Experience the next generation of outdoor entertainment and signage.
📩 Contact RisingStar for data sheets, integration support, or OEM/ODM inquiries for the 55OHA High Brightness Outdoor TV.
