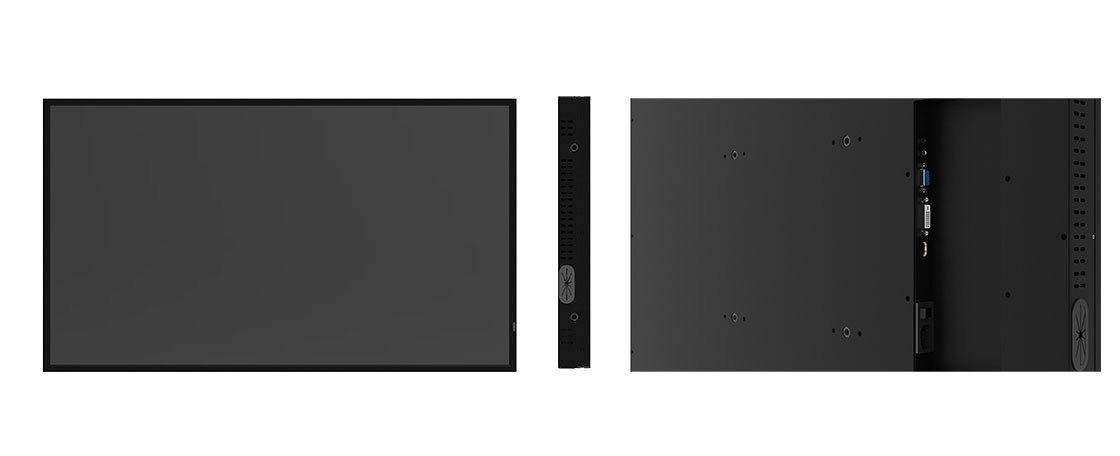

32 inch digital window display
Key Features
High brightness 2500 nits
Ultra high contrast ratio: 1200:1
Sunlight viewable image
LCD blacking defect free
Low power consumption
Backlight MTBF: 50,000 hours
Specifications
| Model Name | RS320MNX03D05-BK |
|---|---|
| Screen Size | 32" |
| Display Area (mm) | 698.4 (W) × 392.9 (H) |
| Brightness | 2500 cd/m² |
| Resolution | 1920 × 1080 (FHD) |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1200:1 |
| Response Time (Typical) | 9 ms (Tr/Td) |
| Viewing Angle (CR≥10) | 89/89/89/89 (Min.) |
| Display Colors | 16.7M |
| Operating System | N/A |
| Glass | N/A |
| Touch Type | N/A |
| Input Power | AC 100–240V |
| Power Consumption | 140W |
| Radiator System | N/A |
| Input Interface | PC Audio In ×1, Earphone Out ×1, DVI ×1, VGA ×1, HDMI ×1, AC In ×1 |
| Dimensions (mm) | 723.4 × 418 × 50 |
| Mounting | 200 × 200 mm, 4 × M8 (Max depth = 10 mm) |
| Weight (Net) | 10.5 kg |
| Ingress Protection (IP) | N/A |
| Operating Temperature | 0°C ~ 50°C |
| Storage Temperature | -20°C ~ 60°C |
32″ High Brightness Digital Window Display – Sunlight Readable, Designed for Retail and Outdoor Signage
The RisingStar 32-inch Digital Window Display is a professional-grade window facing display built to deliver vivid, crystal-clear images even under direct sunlight. Featuring an ultra-high brightness of 2,500 nits and a 1,200:1 contrast ratio, this sunlight readable display ensures perfect visibility through storefront glass, making it ideal for retail windows, outdoor advertising, and transportation hubs. With industrial-grade durability, low power consumption, and a slim aluminum structure, it combines outstanding performance with energy efficiency and modern aesthetics.
Engineered for Sunlight Readability
Traditional indoor LCDs fade out under strong ambient light. RisingStar’s high brightness LCD display uses a direct-lit LED backlight and advanced optical bonding to minimize reflection and maximize clarity. Its sunlight-readable performance makes it ideal for shopfront advertising, EV charging kiosks, passenger information systems, and public wayfinding displays. Whether installed behind glass or outdoors, the 32″ window display maintains stunning visibility day and night.
Durability Meets Efficiency
The RS320MNX03D05-BK model is designed for long-term, 24/7 operation. With a backlight lifetime of 50,000 hours, low power consumption circuitry, and an intelligent thermal management system, this outdoor digital signage display operates reliably across a wide temperature range (0 °C – 50 °C). Its aluminum enclosure not only provides lightweight rigidity but also ensures effective heat dissipation, extending component lifespan and maintaining consistent brightness performance.
Perfect for Retail and Transit Environments
From luxury boutiques to metro stations, the RisingStar 32″ window facing display captures attention in any environment.

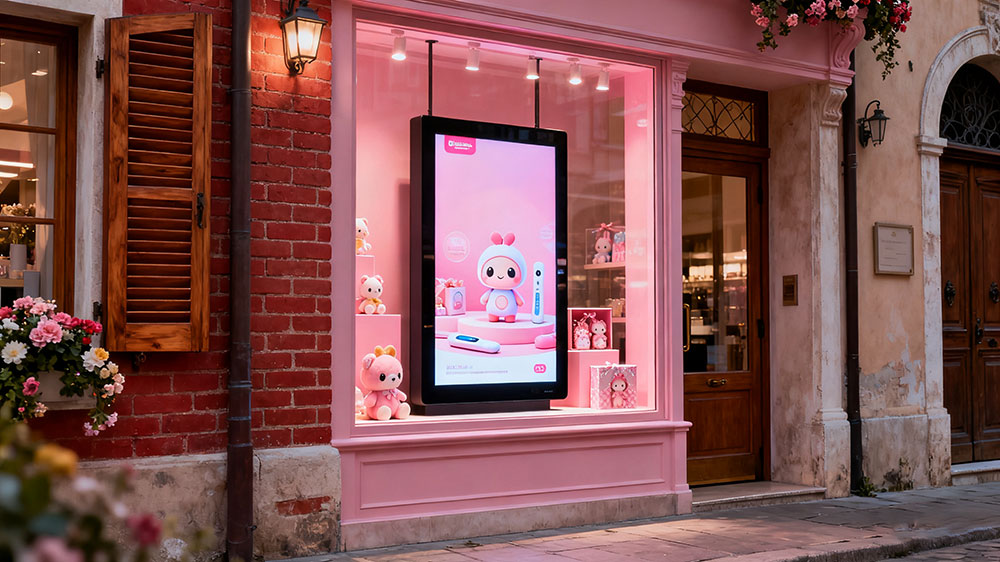

Retail & Showroom Windows: Showcase promotions and brand visuals that stay vivid even in direct sunlight.
Passenger Information Displays: Deliver real-time schedule updates with crisp visibility at bus stops and train platforms.
EV Charging Stations & Outdoor Kiosks: Enable advertisers and operators to display dynamic content that remains visible in all lighting conditions.
Digital Out-of-Home (DOOH) Signage: Reliable, low-maintenance performance for smart city and public information projects.
Built on Expertise and Trust
With over a decade of experience in high brightness digital signage manufacturing, RisingStar has become a trusted supplier to transportation, retail, and industrial system integrators worldwide. Each product undergoes rigorous environmental and reliability testing — including temperature cycling, vibration, humidity endurance, and blacking defect prevention — ensuring consistent quality and performance. Certified by CE, RoHS, and EMC standards, our displays meet global compliance requirements for professional installations.
Key Specifications
Brightness: 2,500 cd/m²
Contrast Ratio: 1,200:1
Resolution: 1920×1080 Full HD
Viewing Angle: 178° (H/V)
Backlight Lifetime: 50,000 hours
Operating Temperature: 0 °C – 50 °C
Power Efficiency: Optimized for 24/7 operation
Structure: Aluminum chassis, lightweight design
Frequently Asked Questions
Q: Can this display be installed behind glass windows?
A: Yes. Its 2,500-nits brightness and anti-reflection design ensure full visibility through standard or tinted glass.
Q: Is the display suitable for outdoor use?
A: Absolutely. The industrial-grade panel and efficient cooling design enable stable operation in semi-outdoor and outdoor digital signage installations.
Q: What is the warranty period?
A: Standard 2-year warranty, extendable to 3 years upon request.
Why Choose RisingStar
RisingStar is dedicated to advancing the future of sunlight readable LCD displays with continuous innovation and precision engineering. We deliver customized display solutions for transportation, energy, retail, and smart city projects worldwide. With global logistics support and responsive technical service, we ensure your display system performs flawlessly from installation to long-term operation.
