                    Key Features
High Brightness: 4000 nits
Sunlight Readable for outdoor visibility
LED Backlight for uniform illumination
Wide Viewing Angle: 178°(H) / 178°(V)
Wide Operating Temperature: -20˚C ~ 60˚C
LCD Blacking Defect Free design
Low Power Consumption for energy efficiency
Backlight Lifetime (MTBF): 50,000 hours
Intelligent Temperature Control System with active heat dissipation
RS550MNX02A01 features:
| Model Name | RS550MNX02A01-BK |
| Screen Size | 55″ |
| Display Area (mm) | 1209.6(H) x 680.4(V) |
| Brightness | 4000 cd/m2 |
| Resolution | 3840×2160 |
| Aspect Ratio | 16 : 9 |
| Contrast Ratio | 1300 : 1 |
| Refresh rate | 60Hz |
| Backlight | WLED |
| Divisions | – |
| Operation System | Android |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Color Saturation (NTSC) | 67% |
| Display Colors | 16.7M |
| Response Time (Typical) | 6 (Typ.)(Tr/Td) (ms) |
| Input Interface | SD*1 LAN*1 HDMI IN*1 AC IN*1 USB*2 |
| OSD Key | IR Remote Control |
| Brightness Adjust | Light sensor |
| Speaker | 2*5W |
| Glass | 4MM Tempered Glass OCR |
| Touch Type | – |
| Input Power | AC 200-240v |
| Power Consumption | 350W |
| Radiator System | Automatic heat dissipation |
| Dimensions (mm) | 1282.6 x 705 x 80.5 mm |
| Mounting | 400x400mm Screws metric M8 |
| Weight (Net) | TBD |
| IP Grade | IP65 |
| Operating Temperature | -20 ˚ C ~ 60 ˚ C |
| Storage Temperature | -20 ˚ C ~ 70 ˚ C |

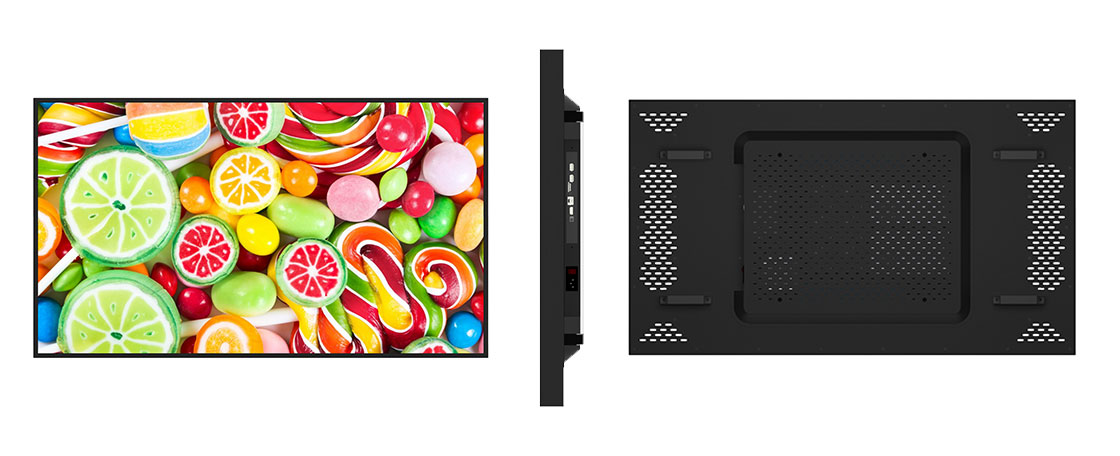

In today’s competitive retail landscape, every storefront needs to capture attention — day and night. The RisingStar 55-inch High Brightness Window-Facing Display (Model RS550MNX02A01) is purpose-built for shop window digital signage applications where visibility, durability, and reliability matter most.
With 4000 nits of high brightness, an industrial-grade LED backlight, and sunlight readable performance, this window-facing display ensures your advertising remains vivid and dynamic even when exposed to direct sunlight through the shop glass.
Most indoor monitors cannot withstand the extreme heat, glare, and light reflection that occur behind storefront glass. When placed in window environments, typical screens suffer from blackout defects, low contrast, and image fading.
The RisingStar 55-inch high brightness LCD display overcomes these challenges through its advanced thermal management system, intelligent temperature control, and anti-reflection optical design, providing stable 24/7 performance in demanding retail spaces.
Ultra-High Brightness (4000 nits) – Perfectly visible under direct sunlight.
Sunlight Readable Display – Delivers superior clarity and color even behind glass.
LED Direct Backlight Technology – Ensures uniform brightness and long lifespan (BL MTBF 50,000 hours).
Wide Viewing Angle (178° H / 178° V) – Clear images from every direction.
Wide Operating Temperature (-20 °C ~ 60 °C) – Designed for extreme environments.
Low Power Consumption – Energy-efficient industrial design.
Aluminum Chassis + Active Heat Dissipation – Lightweight yet durable structure.
IP65 Front Protection – Dustproof and splash-resistant for long-term reliability.
Optional Touch / Smart Control – Flexible integration with retail content systems.
RisingStar displays have been deployed across global retail chains, transportation hubs, EV-charging kiosks, and outdoor signage projects.
In flagship stores across Europe and Asia, this window-facing digital signage display has increased storefront engagement by over 30% compared with static posters.
Our customers choose RisingStar because our displays are engineered for sunlight readability, thermal endurance, and long-term stability, backed by over 10 years of industry experience in high brightness display technology.
RisingStar’s R&D team specializes in sunlight readable LCD design and industrial backlight systems. Each display undergoes rigorous environmental testing, including heat simulation, vibration tests, and extreme-temperature cycles.
We hold ISO 9001 certification, and our panels comply with CE, FCC, and RoHS standards, ensuring full quality assurance for global customers.
With a 50,000-hour backlight lifetime and a robust thermal structure, every unit delivers stable image quality and low maintenance operation.

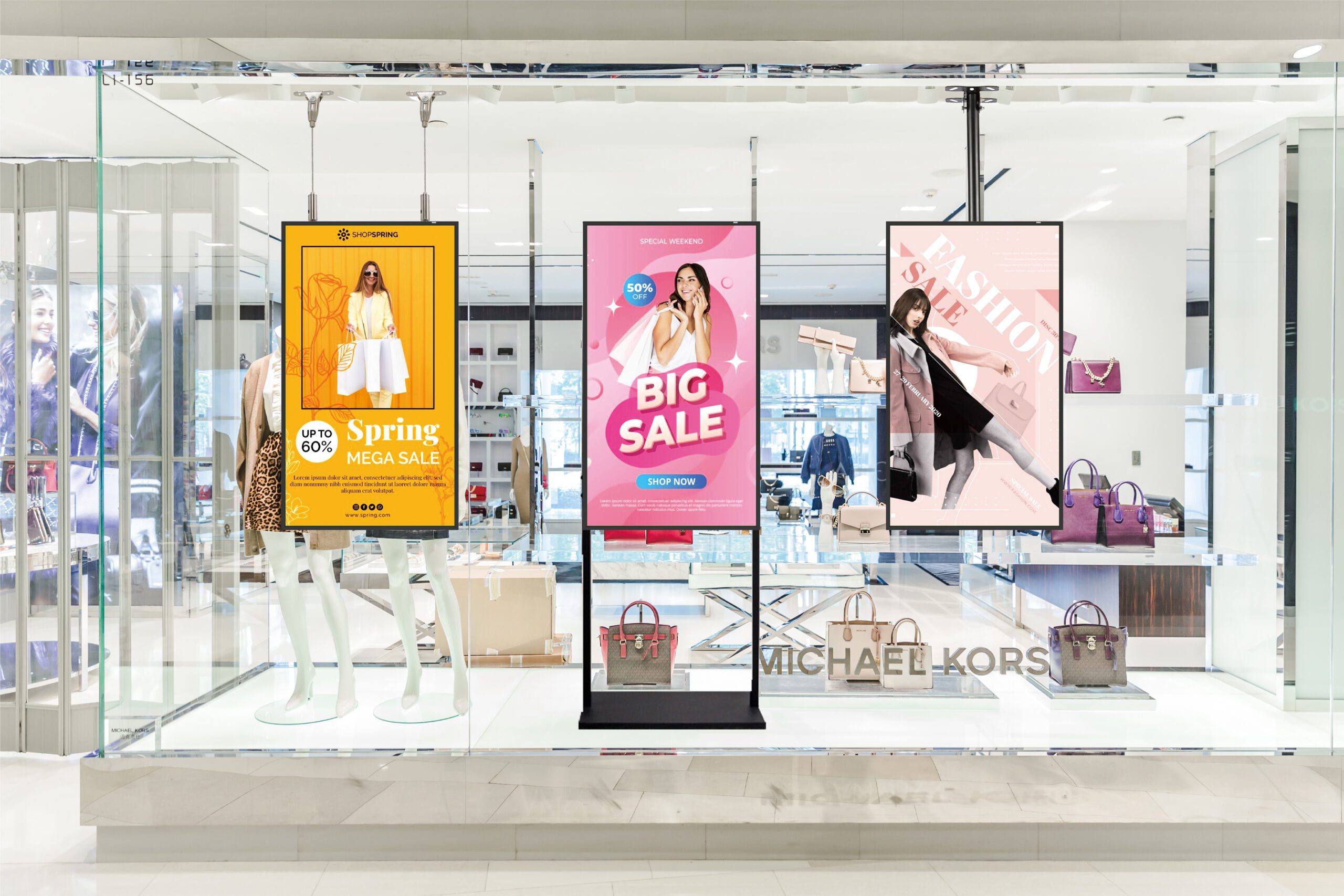

Retail shop windows and display fronts
Shopping malls and boutique advertising
Bank and telecom window digital signage
Airport or metro passenger information display
EV charging stations and fuel kiosks
Outdoor digital signage displays and smart city terminals
Over a decade of experience in designing high brightness LCD displays for industrial and commercial use.
Global installations in transportation, retail, and outdoor environments.
Trusted by leading brands for reliability, image quality, and engineering precision.
Dedicated support team providing technical assistance, customization, and 24/7 after-sales service.
5-Year Warranty + Spare-Parts Guarantee ensures confidence for long-term operation.
Q: Why is 4000 nits brightness required for shop windows?
A: Glass storefronts reflect sunlight and reduce visibility; 4000 nits ensures clear visibility even at noon under direct sunlight.
Q: How is this different from a regular indoor LCD monitor?
A: This is an industrial-grade, sunlight readable LCD with active heat dissipation, temperature sensors, and anti-blackening technology.
Q: Can it be used outdoors directly?
A: Yes. The IP65-rated front panel and rugged aluminum housing make it suitable for semi-outdoor and high-exposure environments.
Q: What is the typical lifespan?
A: Over 50,000 hours of continuous operation with minimal brightness decay.
RisingStar continuously advances high brightness digital signage technology to meet the evolving needs of smart retail and outdoor advertising.
Our products are deployed worldwide — in shopping centers, railway stations, public information terminals, and window-facing media screens — delivering consistent brightness, stability, and professional visual impact that enhance every brand’s customer experience.
Ready to upgrade your storefront with a professional high brightness retail window display?
👉 Contact RisingStar today for a quotation, custom integration plan, or a free consultation with our display specialists.
RisingStar – Industrial-Grade Displays, Engineered for the Sunlight.
