32 inch full outdoor waterproof high brightness LCD display
Key Features
High brightness 2000 nits
Sunlight readable performance
LED backlight technology
Wide viewing angle: 178°(H) / 178°(V)
Wide operating temperature range: 0˚C ~ 50˚C
LCD blacking defect free
Low power consumption
Backlight MTBF: 50,000 hours
Intelligent temperature control system with active heat dissipation
Specifications
| Model Name | RS320HNX02D01-BK |
|---|---|
| Screen Size | 32" |
| Display Area (mm) | 698.4(H) × 392.85(V) |
| Brightness | 2000 cd/m² |
| Resolution | 1920 × 1080 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 4000:1 |
| Pixel Pitch (mm) | 0.36375(H) × 0.36375(V) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Color Saturation (NTSC) | 67% |
| Display Colors | 16.7M |
| Response Time (Typical) | 6 ms (Tr/Td) |
| Input Interface | HDMI IN ×1, AC IN ×1 |
| OSD Control | IR Remote Control |
| Glass | 6mm Tempered Glass (OCR bonded) |
| Touch Type | N/A |
| Input Power | AC 100–240V |
| Power Consumption | Max 170W |
| Cooling System | Active heat dissipation (fanless) |
| Dimensions (mm) | 770.5 × 465.5 × 90.5 |
| Mounting | 200 × 400 mm (M8 screws) |
| Net Weight | 28.5 kg |
| IP Rating | IP65 (fully sealed design) |
| Operating Temperature | 0˚C ~ 50˚C |
| Storage Temperature | -20˚C ~ 60˚C |
32" Outdoor Digital Display — Full-Outdoor Waterproof High-Brightness LCD | RisingStar
RisingStar 32-Inch Full Outdoor Waterproof LCD Display
Designed for all-weather digital signage and window-facing applications, the RisingStar 32" outdoor digital display delivers stunning visibility even under direct sunlight. Featuring 2800 nits high brightness, a full IP65/IP66-rated waterproof enclosure, and industrial-grade temperature control, this sunlight-readable LCD guarantees long-term, reliable performance in harsh environments — from outdoor kiosks and charging stations to transportation terminals and retail storefronts.
Product Overview
Built for 24/7 operation, the 32-inch outdoor digital display combines ultra-high brightness with energy efficiency and robust durability. The panel adopts direct-lit LED backlight, anti-reflective optical bonding, and temperature-stable components, ensuring vivid images and color accuracy in any ambient lighting. The display is blacking-defect-free and engineered with 50,000-hour backlight lifetime, minimizing maintenance costs for outdoor installations.
With its slim aluminum housing, active heat dissipation system, and low power consumption, this display integrates seamlessly into outdoor digital signage networks, smart city infrastructure, and industrial information terminals.
Key Features
High Brightness: 2800 nits sunlight-readable LCD panel
Waterproof & Dustproof: IP65/IP66 full-sealed enclosure
Wide Operating Temperature: -20°C to +60°C continuous operation
Ultra High Contrast: 1200:1 typical for enhanced visibility
Full HD Resolution: 1920×1080 with 178° wide viewing angle
LCD Blacking Defect Free: Stable under long exposure to sunlight
Intelligent Thermal Management: Active fanless cooling system
Long Lifetime: 50,000-hour backlight MTBF
Energy Efficient: Optimized for low heat and power consumption
Optional Optical Bonding & AR Glass: For glare-free image quality
Applications
RisingStar 32" outdoor digital display is ideal for environments demanding 24/7 readability and reliability:
Retail Window Advertising & QSR Menus — Perfect brightness for sun-facing storefronts.

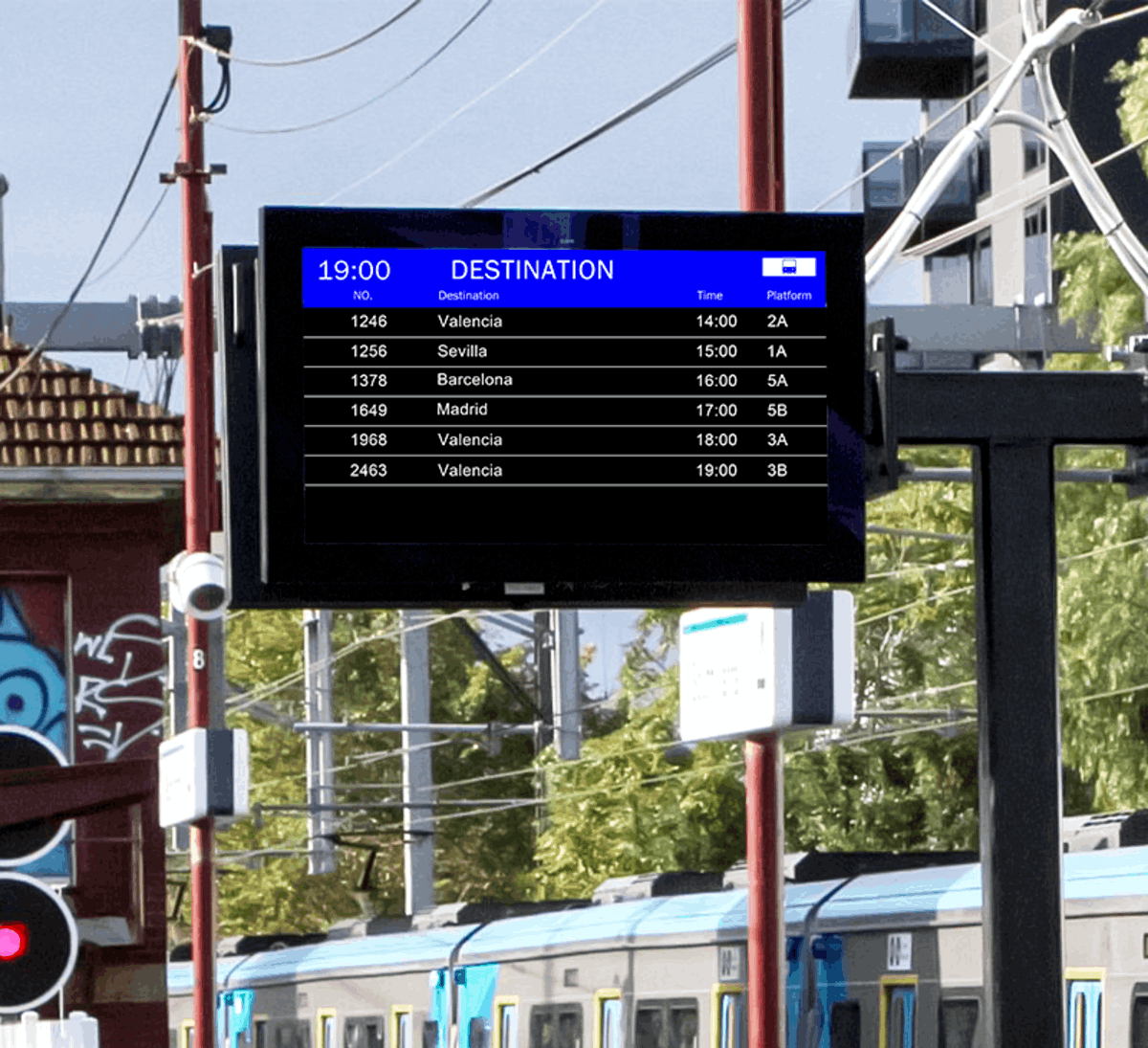

Transportation & Passenger Information Displays — Real-time updates for train, bus, and metro systems.
EV Charging Stations & Gas Pumps — Durable, waterproof, and energy-efficient display solutions.
Smart City Terminals & Public Information Boards — Reliable outdoor visibility for urban communication.
Outdoor Kiosks & Digital Totems — Slim design and wide temperature tolerance for unattended operation.
Why Choose RisingStar Outdoor Digital Displays
RisingStar has specialized in industrial-grade high-brightness LCD technology for over a decade. Every product undergoes extreme temperature testing, IP water/dust resistance certification, and long-duration brightness endurance to ensure consistent outdoor readability.
Our R&D team engineers each display with proprietary optical bonding, custom thermal control algorithms, and energy-optimized backlighting, delivering unmatched performance in outdoor conditions while maintaining low total cost of ownership.
FAQ
Q1: Is this display suitable for direct sunlight exposure?
Yes. The RisingStar 32" outdoor digital display features 2800 nits brightness and sunlight-readable panel technology that prevents blackening under high temperature or UV exposure.
Q2: Can it operate in heavy rain or dusty environments?
Absolutely. With IP65/IP66 protection, the enclosure is fully sealed against water and dust ingress, making it ideal for outdoor signage in all climates.
Q3: Does the screen include automatic brightness control?
Yes. An optional light sensor enables automatic brightness adjustment to ambient lighting, reducing power consumption and extending display life.
Q4: What mounting options are available?
Standard VESA mounting (400×400) and customized brackets are supported for kiosks, walls, or freestanding enclosures.
About RisingStar
RisingStar is a global manufacturer of high-brightness LCD displays for outdoor, industrial, and transportation environments. Our products are deployed across railway systems, smart cities, EV charging networks, and outdoor advertising worldwide. All displays are built with industrial-grade components, strict quality control, and global compliance (CE / FCC / RoHS) certifications.
RisingStar — Leading the future of outdoor digital display technology.
