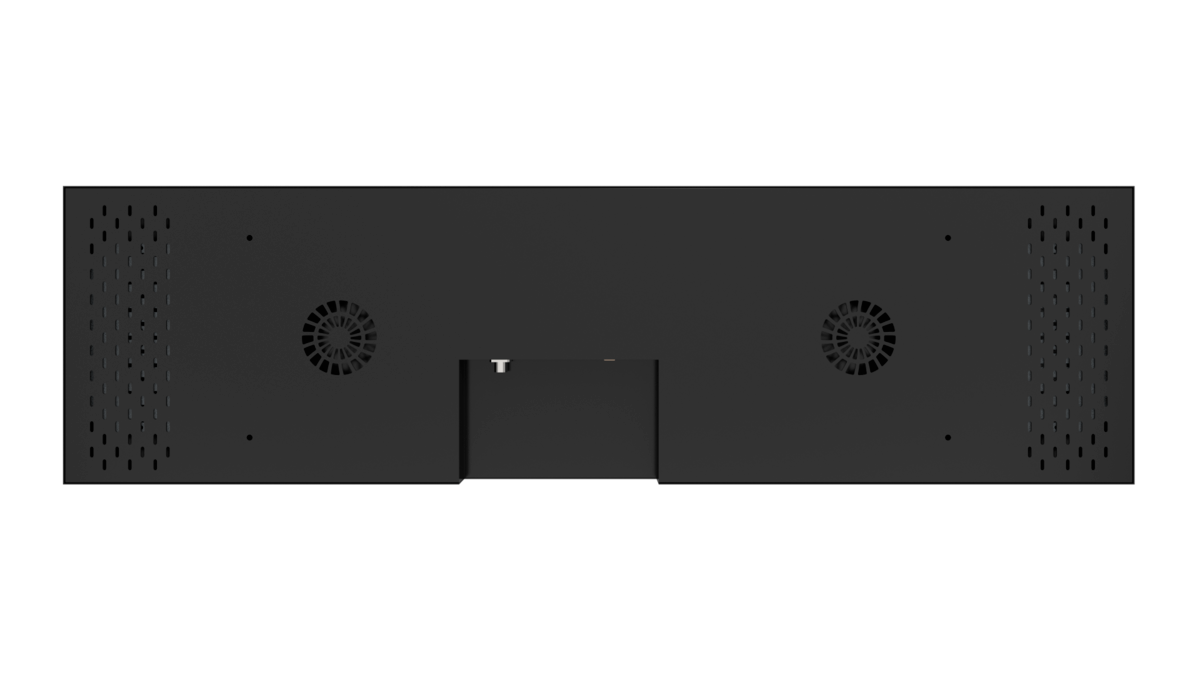

42 inch 3000 nits high brightness wide temperature LCD panel
Size: 42 inch
Resolution: 1920*480
Brightness: 3000 nits
Category: Stretch bar LCD panel
Model No.: RS420IVN-GD30
RS420IVN-GD30 features:
| Panel Brand | RisingStar | Panel Model | RS420IVN-GD30 |
| Panel Size | 42″ | Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×480 | Pixel Format | RGB Vertical Stripe |
| Display Area | 1073.6(W)×259.92(H) mm | LCD screen | AMVA3 |
| Outline Size | 951.9(W) × 298.6(H)×58.1(D) mm | Surface | Haze 28%, hard coating 3H |
| Brightness | 3000cd/m²or customized | Contrast Ratio | 4000:1 (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | Normally Black, Transmissive |
| Display Colors | 16.7M/1.07B , 72% sRGB | Response Time | 8(Typ.)(Tr+Td) ms |
| Frequency | 60Hz | Supply voltage | 24.0V (Typ.) |
| Weight | 5.21 kgs (Typ./Max.) | Signal Interface | LVDS (2 ch, 8/10-bit) , 51 pins |
| Environment | Operating Temp.: -20℃~60℃; Storage Temp.:-20℃~60℃ | ||
RisingStar bar screen LCD panel series:
| Model name | Size (inch) | brightness | Resolution | Operating temperature |
|---|---|---|---|---|
| RS141XTM-NE08 | 14.1 | 800 | 3840*1100 | 0 ~50 ℃ |
| RS145HAX-NE12 | 14.5 | 1200 | 2560*720 | 0 ~ 50 ℃ |
| RS191ENT-NE15 | 19.1 | 1500 | 1920*360 | 0 ~ 50 ℃ |
| RS280IVN-GD20 | 28 | 2000 | 1920*360 | -20 ~ 70 ℃ |
| RS290EJS-NE10 | 29 | 1000 | 1920*540 | 0 ~ 50 ℃ |
| RS376IVN-ND20 | 37.6 | 2000 | 1920*540 | 0 ~ 50 ℃ |
| RS420IVN-GD30 | 42 | 3000 | 1920*480 | -20 ~ 70 ℃ |
| RS430AJ1-GD15 | 43 | 1500 | 3840*720 | -20 ~ 70 ℃ |
| RS495IVN-GD40 | 49.5 | 4000 | 1920*540 | -20 ~ 70 ℃ |
| RS105ENT-ND25 | 105 | 2500 | 5120*2160 | 0 ~ 50 ℃ |
