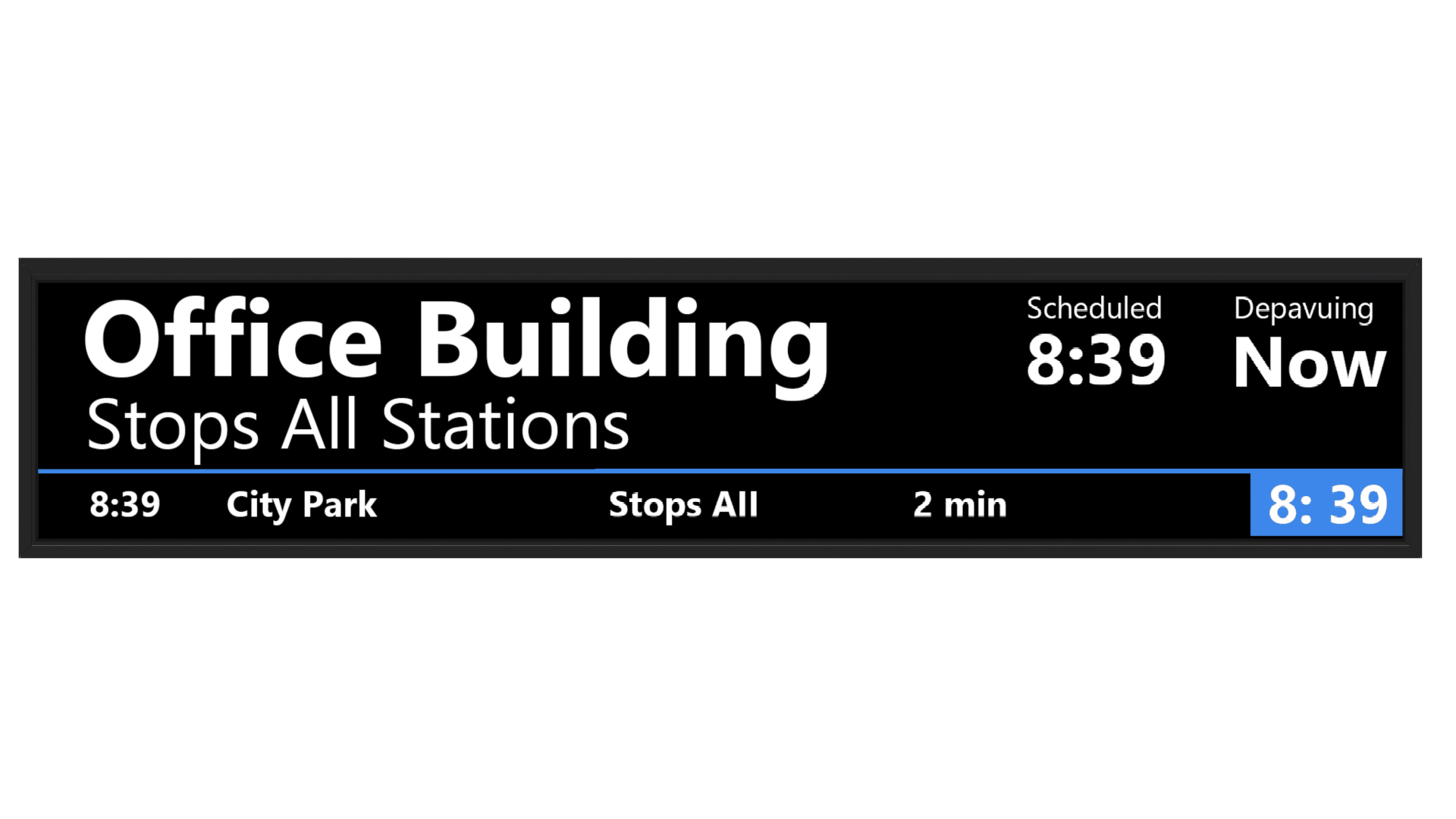

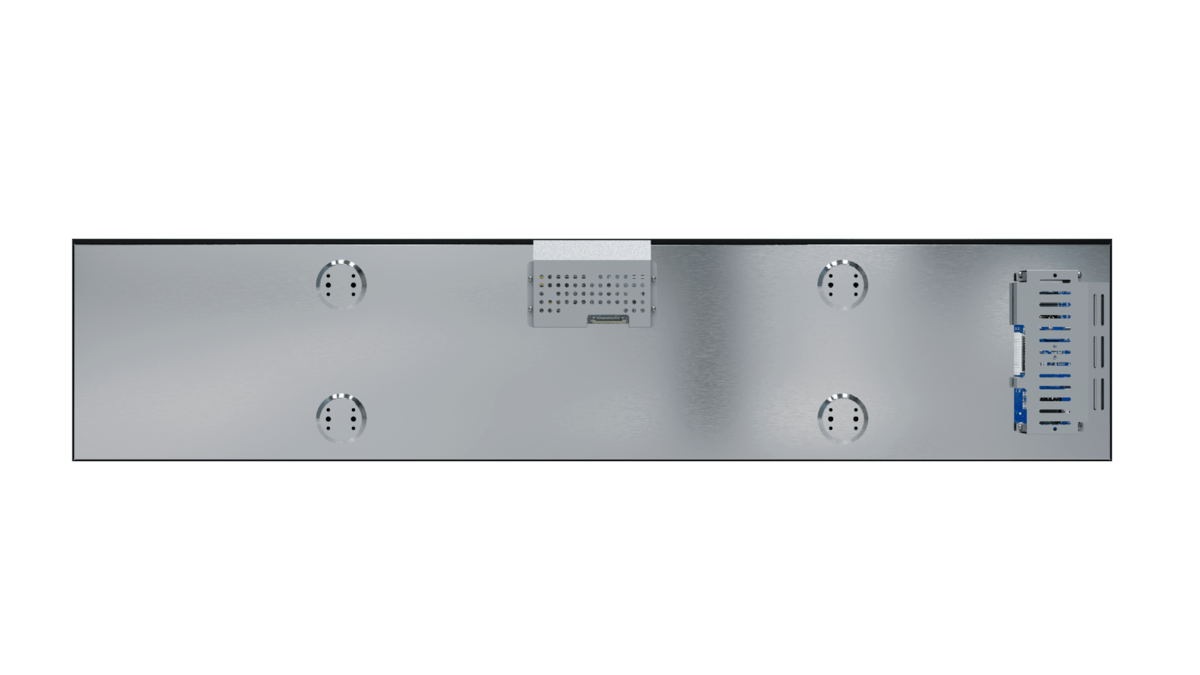

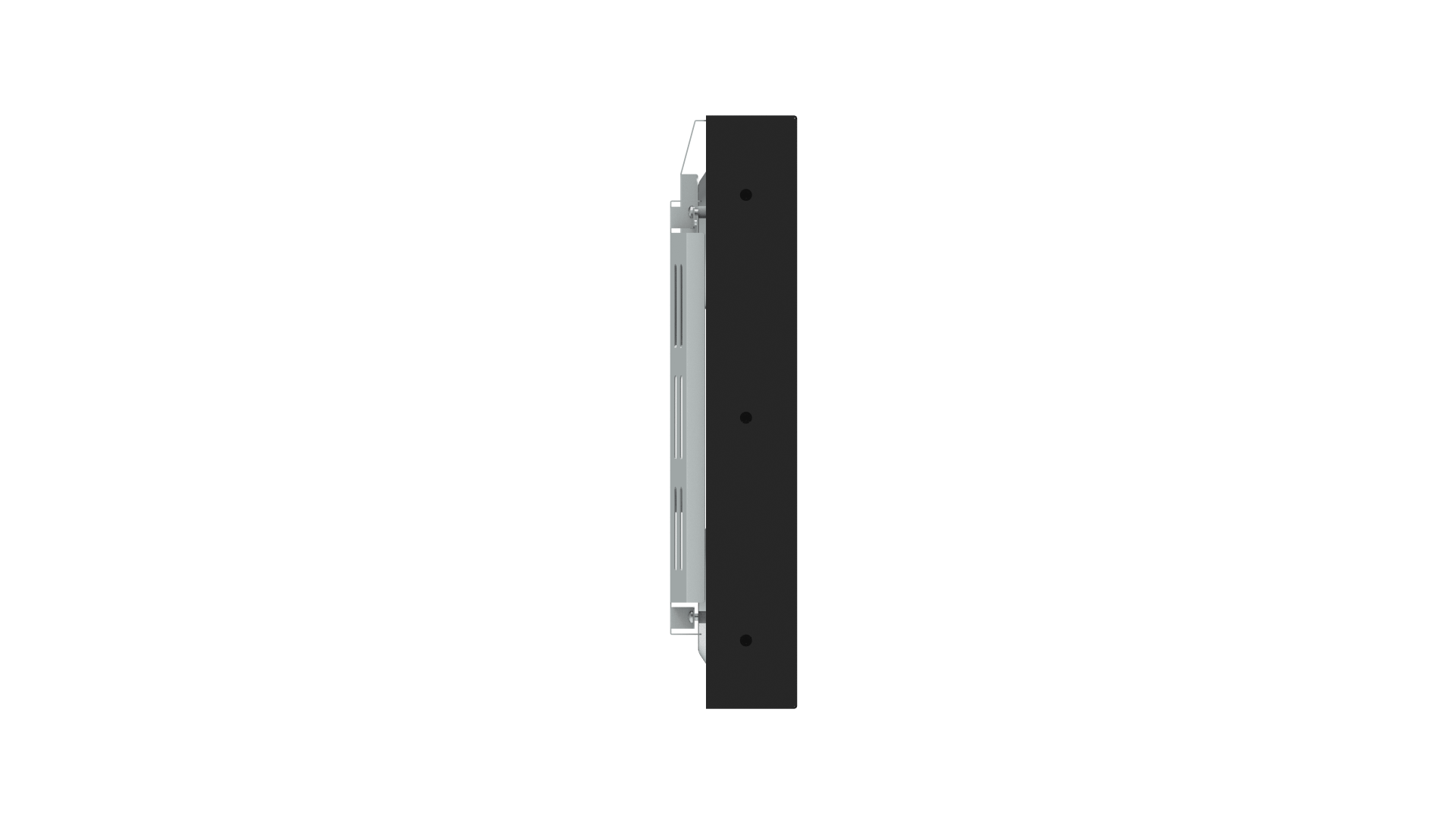

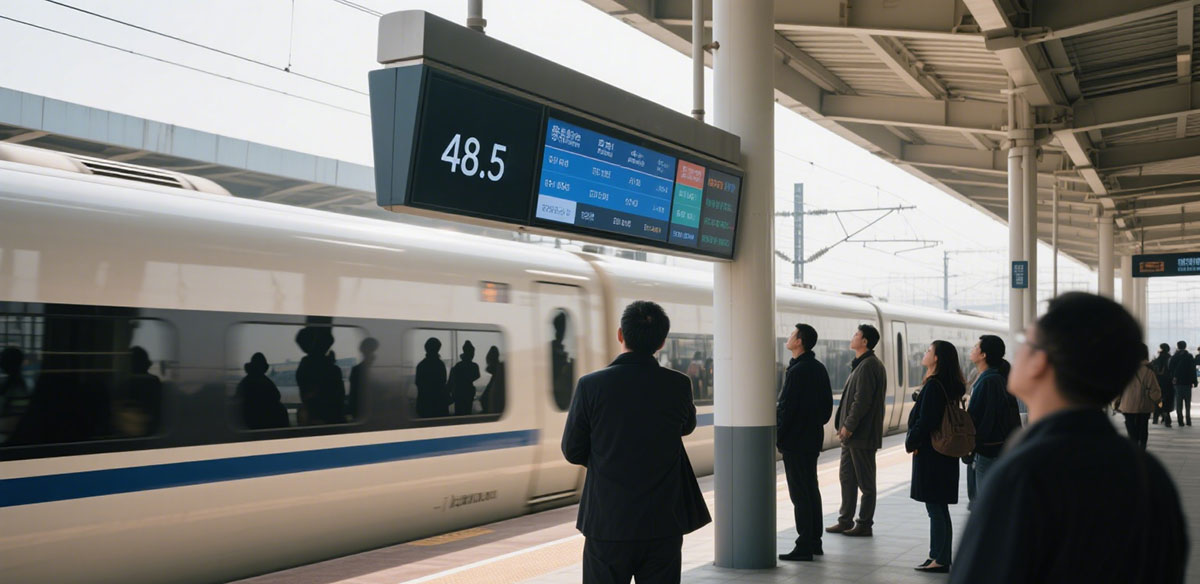

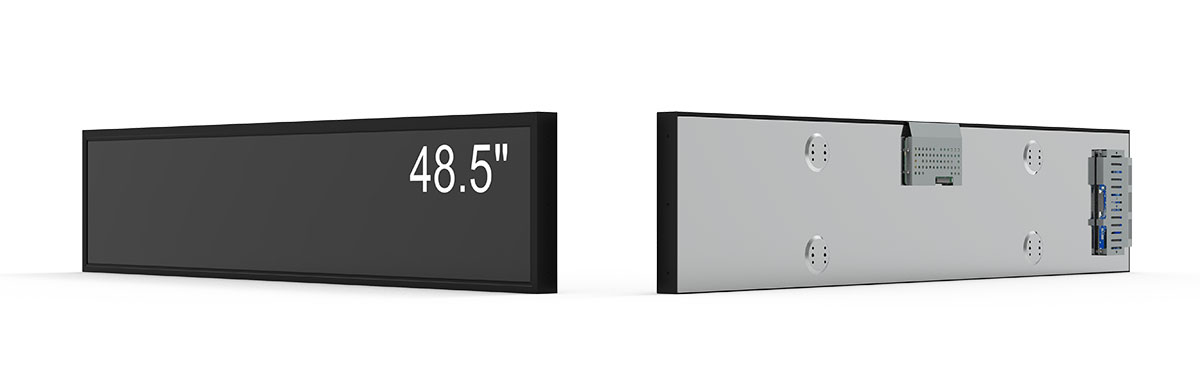

48.5 inch bar type passenger information LCD panel
Model No.: RS485IVN-GE08
Size: 48.5 inch
Resolution: 1920*360
Brightness: 800 nits
Category: Wide temperature LCD panel
Operating Temperature：-20～70℃
RS485IVN-GE08 Specifications
| Panel Brand | RisingStar | Panel Model | RS485IVN-GE08 |
| Panel Size | 48.5″ | Panel Type | a-Si TFT-LCD ，LCM |
| Resolution | 1920(RGB)×360 | Pixel Format | RGB Vertical Stripe |
| Display Area | 1209.6(W)×226.8(H) mm | MTBF | 50,000 hrs |
| Outline Size | 1219.6(W)×248.7(H)×27.5(D) mm | Surface | Matte (Haze 3%) |
| Brightness | 800 cd/m²or customized | Contrast Ratio | 4000:1 (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | Normally Black, Transmissive |
| Display Colors | 8-bit 16.7M | Response Time | 8(Typ.)(Tr+Td) ms |
| Frequency | 60Hz | Supply voltage | 12.0V (Typ.) |
| Weight | TBD (Typ./Max.) | Signal Interface | LVDS 51 pins |
| Environment | Operating Temp.:-20℃~60℃; Storage Temp.:-20℃~70℃ | ||
.
.
RisingStar Physical Products
.

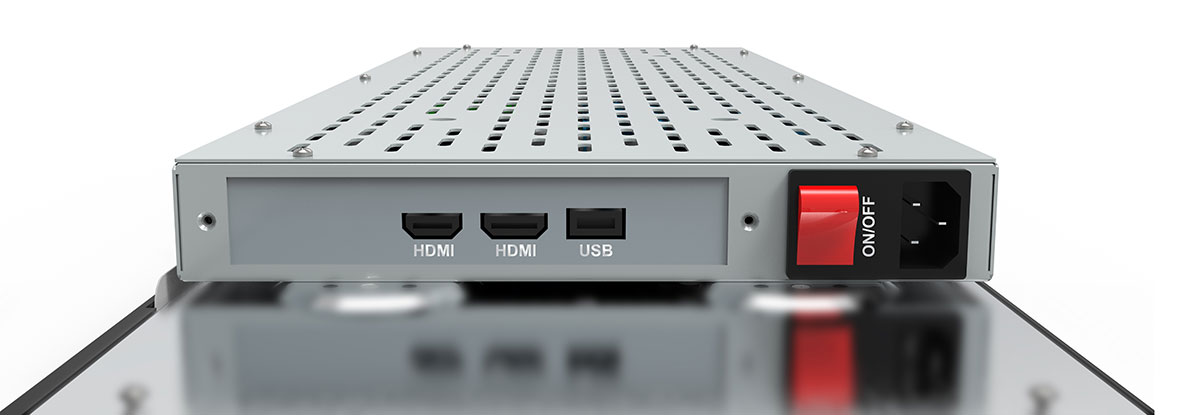

Strip screen power supply
.
.
RisingStar Stretch Bar LCD Display Other Specifications
.
.
.
RisingStar Stretch Bar LCD Display Other Specifications
| Model name | Size (inch) | brightness | Resolution | Operating temperature |
|---|---|---|---|---|
| RS270ENT-NE10-OP | 27 | 1000 | 1920*1080 | 0 ~ 50 ℃ |
| RS270ENT-NE20-OP | 27 | 2000 | 1920*1080 | 0 ~ 50 ℃ |
| RS280IVN-GD20-OP | 28 | 2000 | 1920*360 | -20 ~ 60 ℃ |
| RS290EJS-NE10-OP | 29 | 1000 | 1920*540 | 0 ~ 50 ℃ |
| RS320ENT-ND20-OP | 32 | 2000 | 1920*1080 | 0 ~ 50 ℃ |
| RS420IVN-GD30-OP | 42 | 3000 | 1920*480 | -20 ~ 70 ℃ |
| RS430ENT-ND20-OP | 43 | 2000 | 1920*1080 | 0 ~ 50 ℃ |
| RS490ENT-GD30-OP | 48.5 | 800 | 1920*1080 | -20 ~ 60 ℃ |
| RS550ENT-GD40-OP | 55 | 4000 | 3840*2160 | -20 ~ 60 ℃ |
