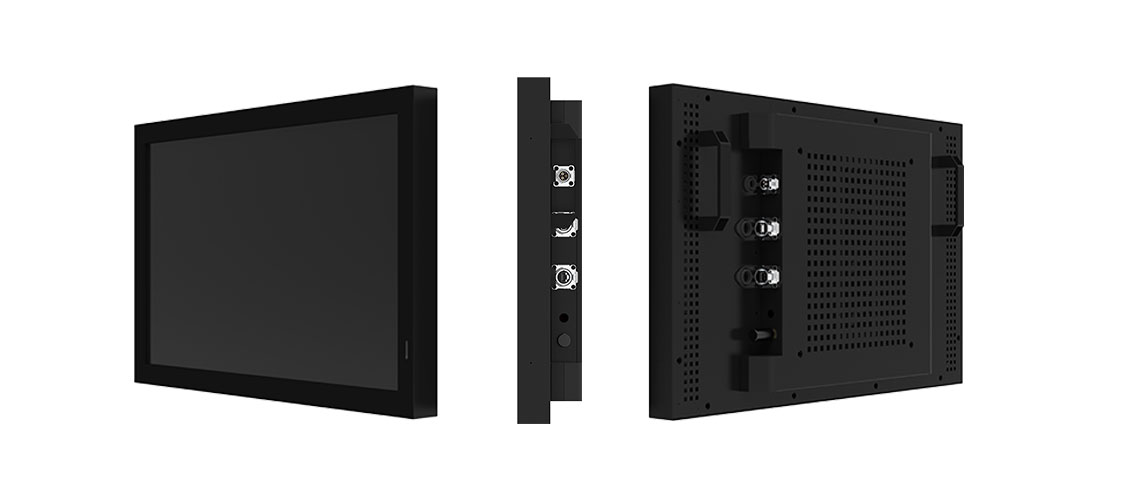

32 Inch Outdoor Air Cooled Digital LCD Display
Model Name: RS320HNX05-A01-BK
Key Features
High brightness 2500nits
LED Backlight
Sunlight Readable
Light sensor automatically adjusts brightness
LCD Blacking Defect Free
Low Power Consumption
BL MTBF: 50,000 hours
Specifications
| Item | Description |
|---|---|
| Model Name | RS320HNX05-A01-BK |
| Screen Size | 32" |
| Display Area (mm) | 698.4(W) × 392.6(H) mm |
| Brightness | 2500 cd/m² |
| Resolution | 1920 × 1080 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1100:1 |
| Response Time (Typical) | 10 ms (Tr/Td) |
| Viewing Angle (Min.) | 89°/89°/89°/89° (CR≥10) |
| Display Colors | 16.7M |
| Operating System (Optional) | Android 11 |
| RAM (Optional) | 4G |
| ROM (Optional) | 32G |
| Speaker | 5W × 1 |
| Glass | 5 mm Front Anti-Reflection Glass, IK10 |
| Touch Type (Optional) | 10-Point Capacitive Touch |
| Network (Optional) | WiFi / Ethernet / 4G |
| Input Power | AC 100–240V |
| Power Consumption | ＜150W |
| Cooling System | Automatic fan cooling when temperature exceeds 35℃ |
| Input Interface (Optional) | HDMI ×1, RJ45 ×1, USB ×1, AC ×1 |
| Dimensions (mm) | 769.5 × 465.5 × 90 mm |
| Mounting | 300 × 300 mm (4-M8, Max Depth = 8 mm) |
| Weight (Net) | TBD |
| IP Rating (Ingress Protection) | IP66 |
| Shell Color | Black |
| Operating Temperature | -20℃ ~ 50℃ |
| Storage Temperature | -20℃ ~ 60℃ |
