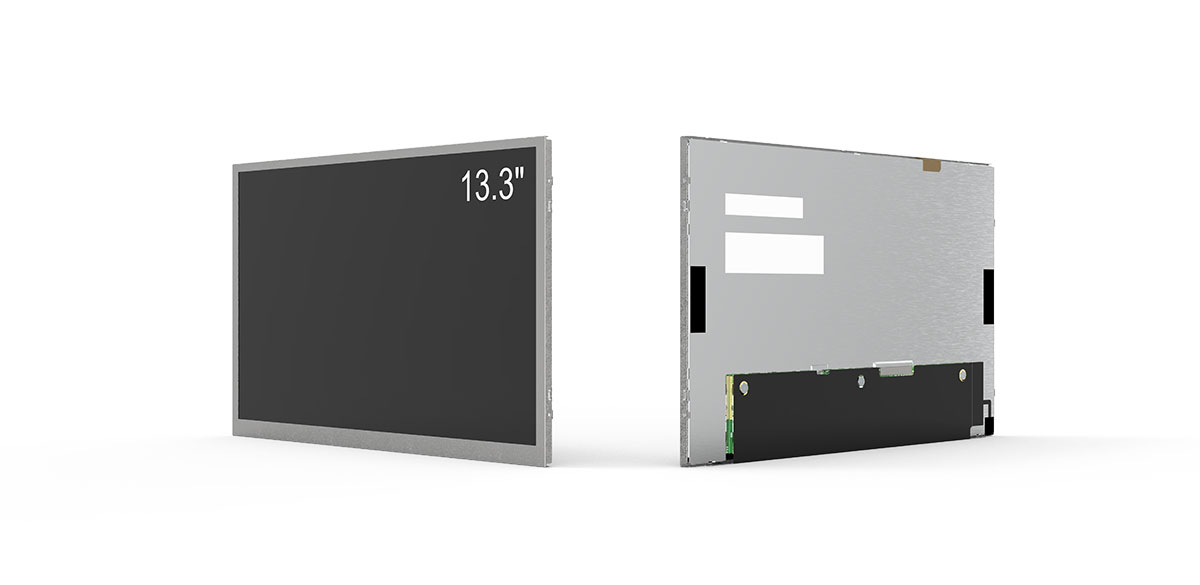

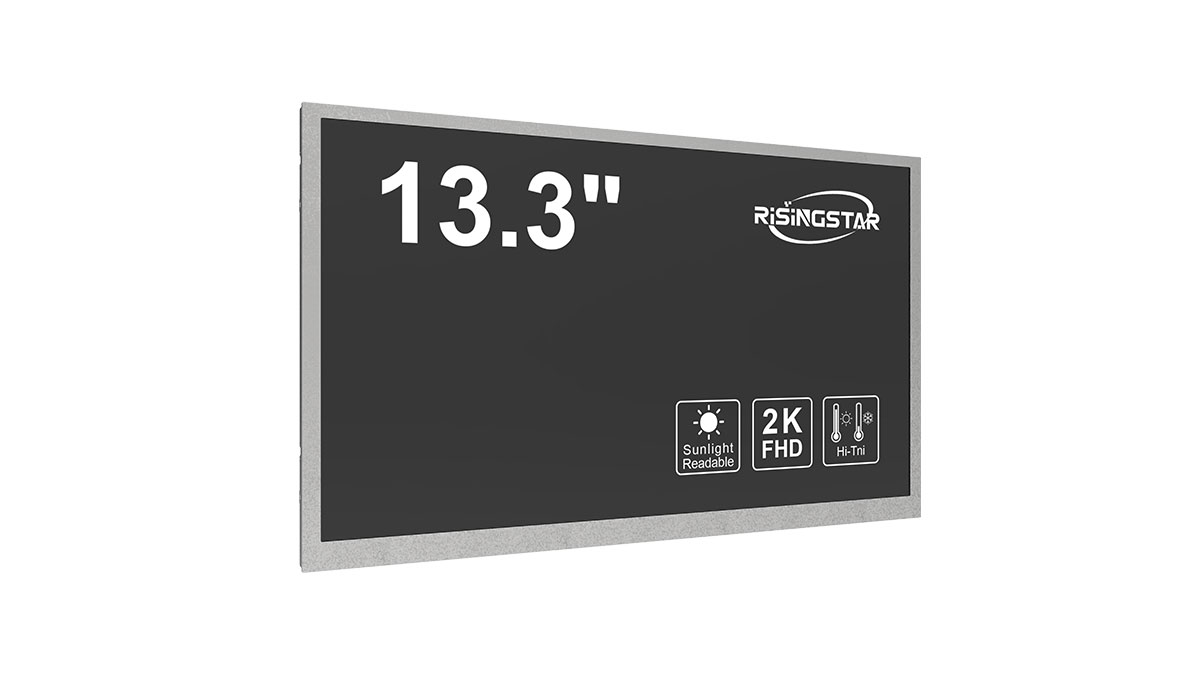

13.3 Inch sunlight readable lcd screen
Model No.: RS133X0M-GE10
Size: 13.3 inch
Resolution：1920(RGB)×1080
Brightness：500 to 5000 Nits
Operating Temperature：-20～70℃
MTBF：50000H
RS133X0M-GE10 Specifications
| Panel Brand | Risingstar | Panel Model | RS133X0M-GE10 |
| Panel Size | 13.3″ | Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 166PPI | Pixel Format | RGB Vertical Stripe |
| Display Area | 293.76(W)×165.24(H) mm | Bezel Opening | / |
| Outline Size | 300.26(H)×187.45(V) ×2.4(D) mm | Surface | anti-glare (Haze 25%)，Hard coating (3H) |
| Brightness | 500 to 5000nits | Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive |
| Display Colors | 16.7M , 73% NTSC | Response Time | 30 (Typ.)(Tr+Td) |
| Frequency | 60Hz | Supply voltage | 3.3V (Typ.) |
| Weight | / | Signal Interface | LVDS (1 ch,8-bit),30pins |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 70 °C | ||
.
.
RisingStar Physical Products
。
。

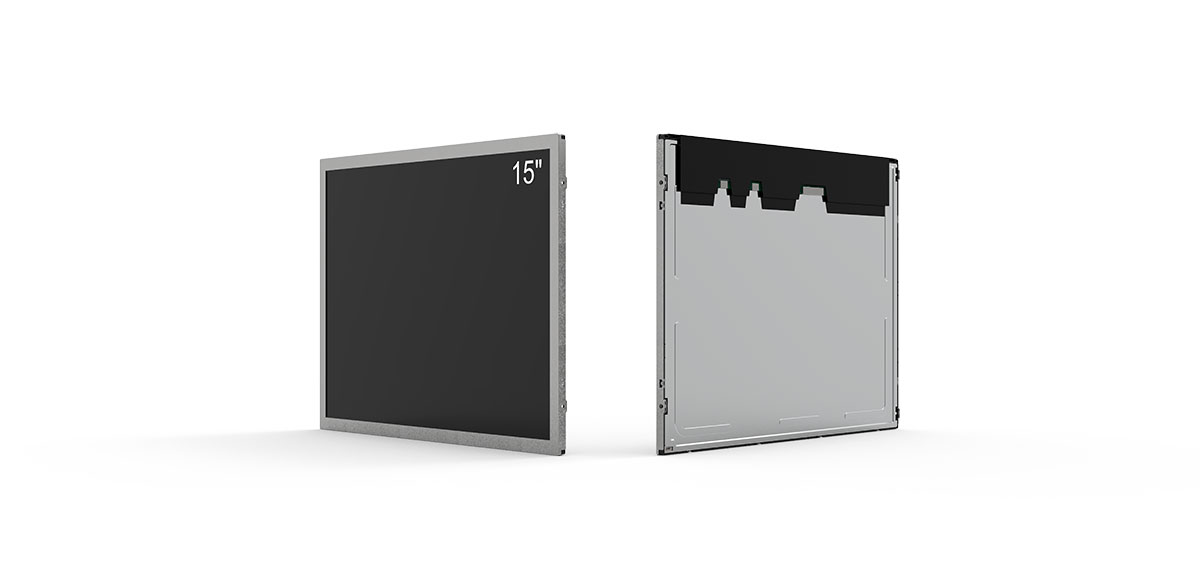

15 Inch Industry LCD Module 4:3 case
