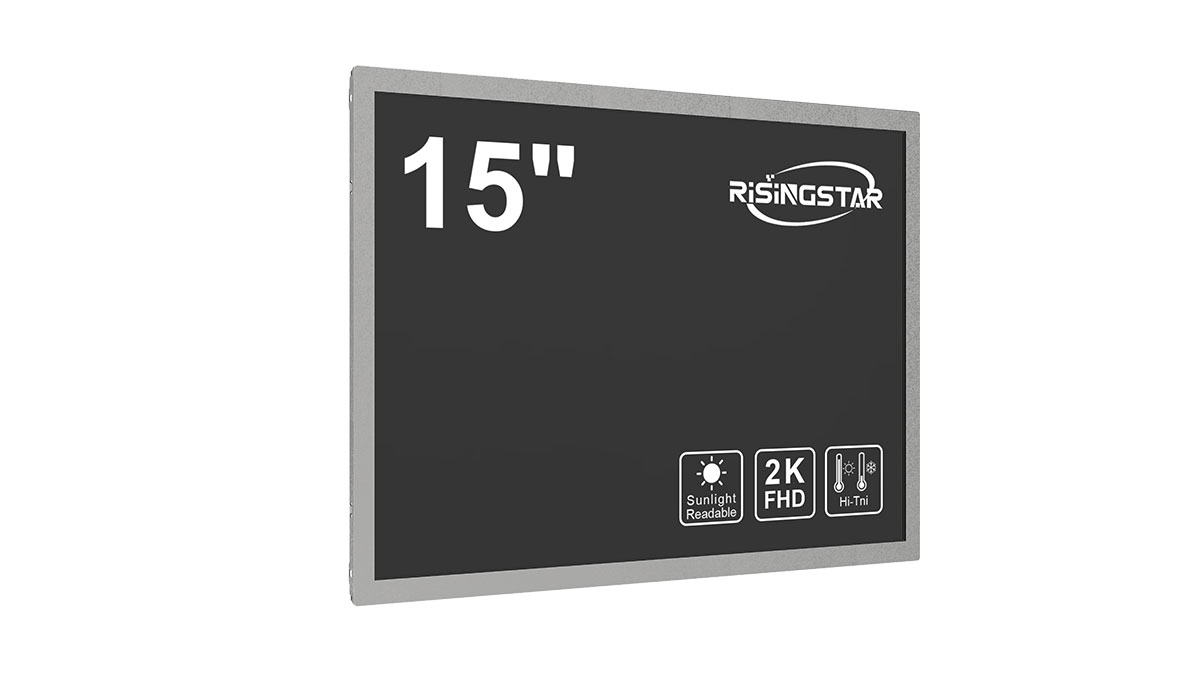

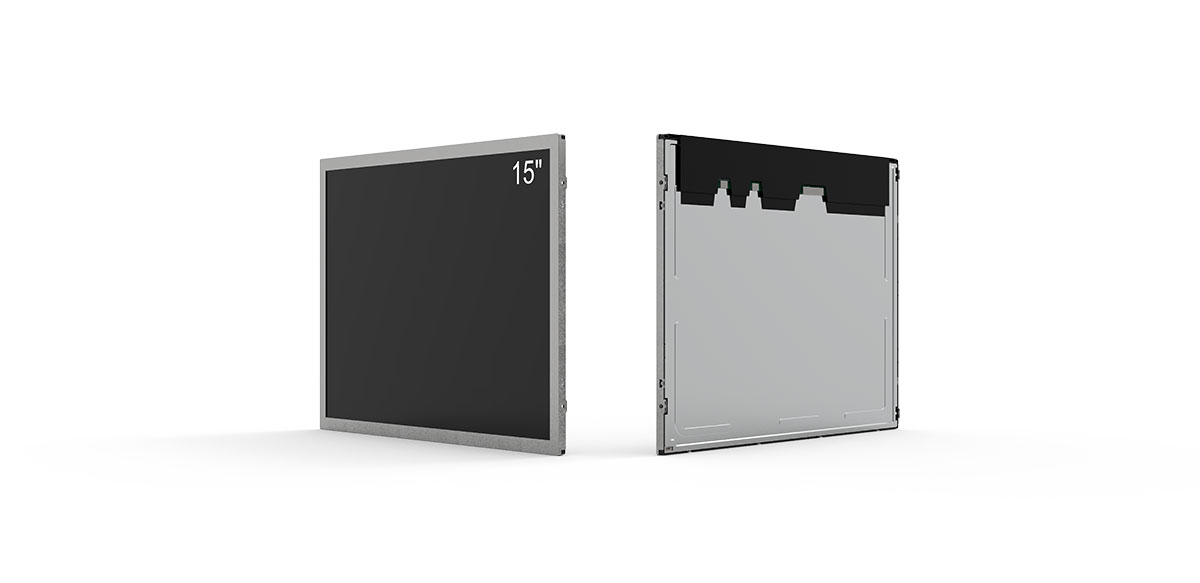

15 Inch Industry LCD Module 4:3
Model No.: RS150X0M-GE10
Size: 15 inch
Resolution：1024(RGB)×768
Brightness：500 to 5000 Nits
Operating Temperature：-20～70℃
MTBF：50000H
RS150X0M-GE10 Specifications
| Panel Brand | Risingstar | Panel Model | RS150X0M-GE10 |
| Panel Size | 15″ | Panel Type | a-Si TFT-LCD ，LCM |
| Resolution | 1024(RGB)×768 | Pixel Format | RGB Vertical Stripe |
| Display Area | 304.128(W)×228.096(H) mm | Bezel Opening | / |
| Outline Size | 326.5(W)×253.5(H)×10(D) mm | Surface | anti-glare (Haze 25%)，Hard coating (3H) |
| Brightness | 500 to 5000nits | Contrast Ratio | 1000:1 (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | Normally Black, Transmissive |
| Display Colors | 16.7M , 72% NTSC | Response Time | 30(Typ.)(Tr+Td) ms |
| Frequency | 60Hz | Supply voltage | 3.3V (Typ.) |
| Weight | / | Signal Interface | LVDS (1 ch,8-bit),30pins |
| Environment | Operating Temp.:-20℃~70℃; Storage Temp.:-20℃~70℃ | ||
.
.
RisingStar Physical Products
。
。
15 Inch Industry LCD Module 4:3 case
