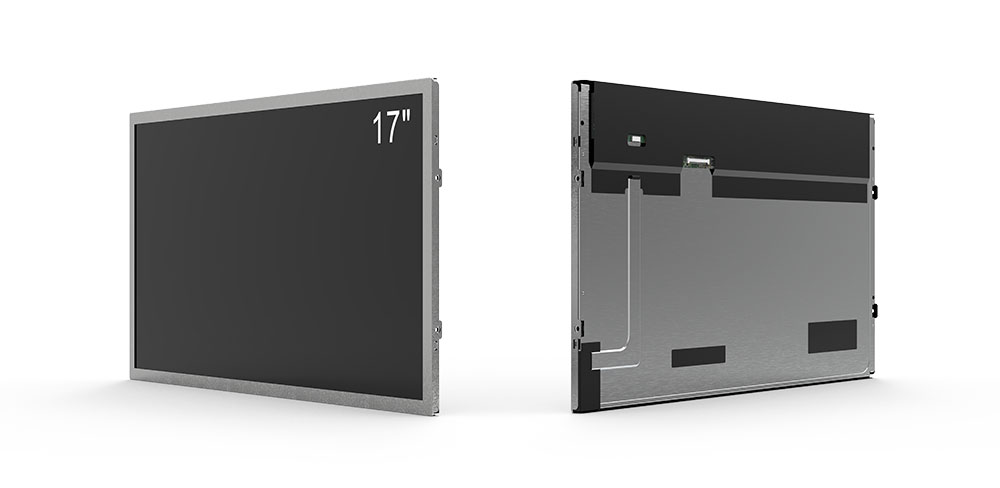

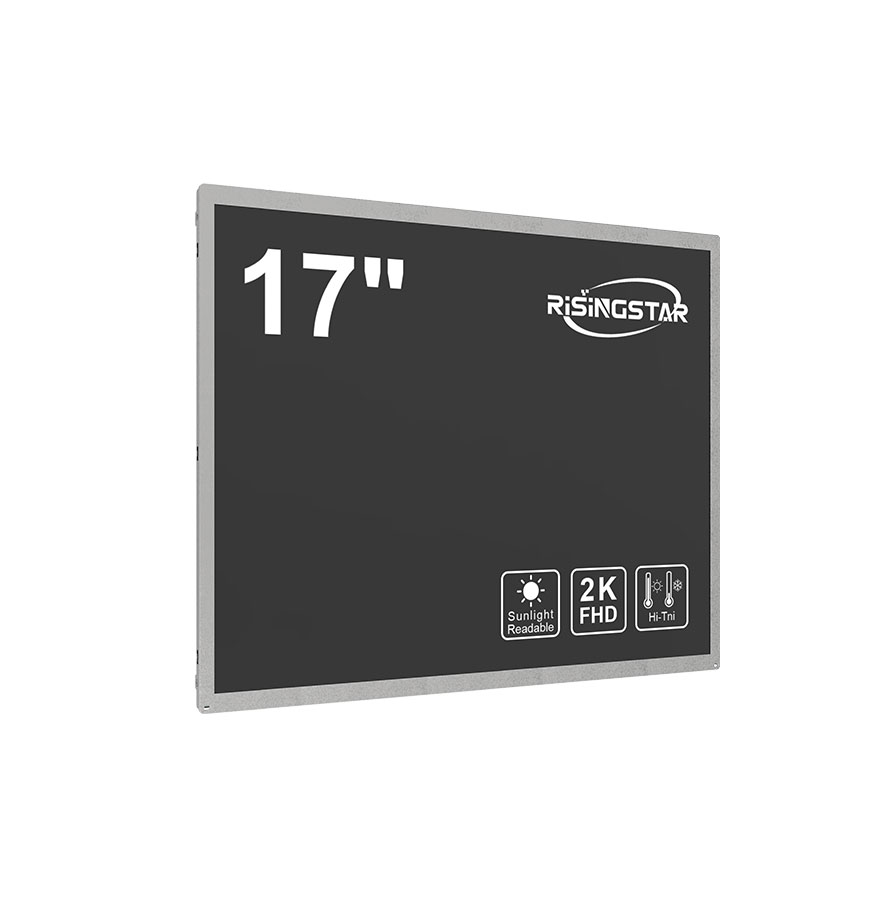

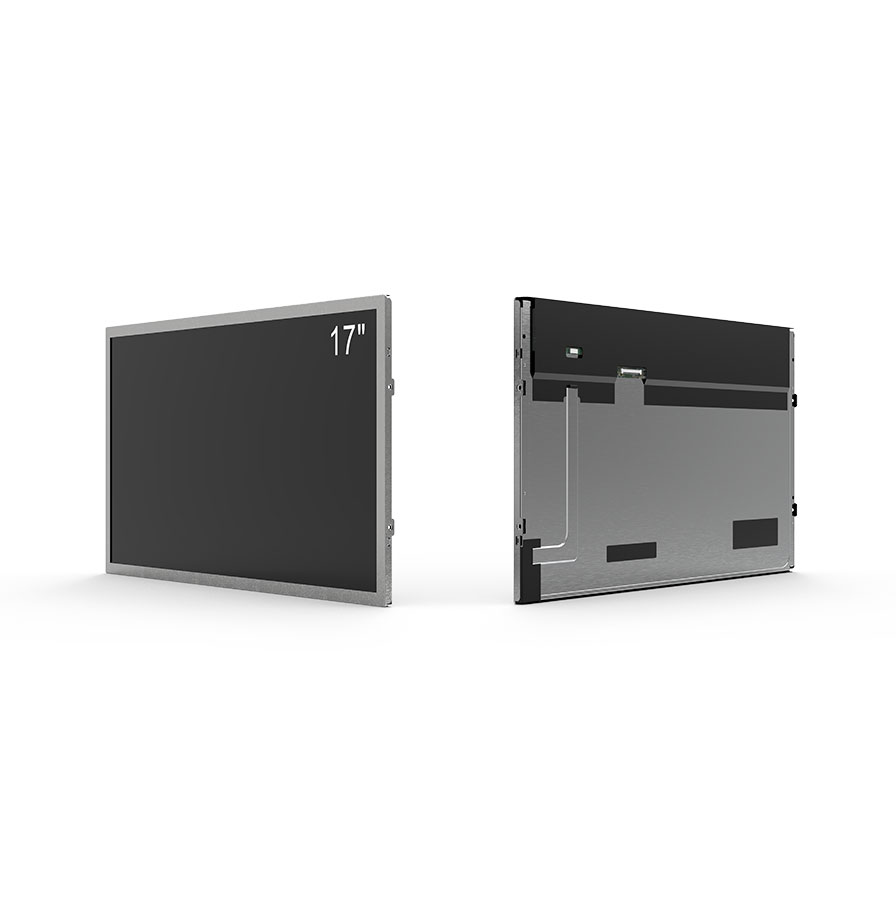

17 Inch sunlight readable outdoor lcd display 4 : 3

Model No.: RS170X0M-GE10

Size: 17 inch

Resolution：1280 (RGB) × 1024 (SXGA), 96 PPI

Brightness：500 to 5000 Nits

Operating Temperature：-20～70℃

MTBF：50000H

RS170X0M-GE10 Specifications

Item	Specification
Panel Size	17.0 inches
Aspect Ratio	4:3
Resolution	1280 (RGB) × 1024 (SXGA), 96 PPI
Display Area	337.92 (W) × 270.336 (H) mm
Viewable Size	341.6 (W) × 274.0 (H) mm
Brightness	500 to 5000 nits (adjustable)
Contrast Ratio	1000:1 (Typical, transmissive)
Viewing Angle (CR≥10)	85°/85°/80°/80° (Left/Right/Up/Down)
Response Time (Tr/Td)	3.5 / 1.5 ms (Typical)
Display Mode	TN, Normally White, Transmissive
Surface Treatment	Anti-glare, Hard coating (3H)
Color Depth	16.7M colors, 72% NTSC
Backlight Type	WLED, 50,000 hours lifespan, integrated LED driver
Weight	1.30 kg (Typical)
Refresh Rate	60Hz (default), optional 120Hz/240Hz with MEMC circuit
Touch Function	None
Signal Interface	LVDS (2 channel, 8-bit), 30-pin connector
Power Supply Voltage	5.0V (Typical)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Application	Industrial displays, kiosks, marine, outdoor terminals, automation, et
