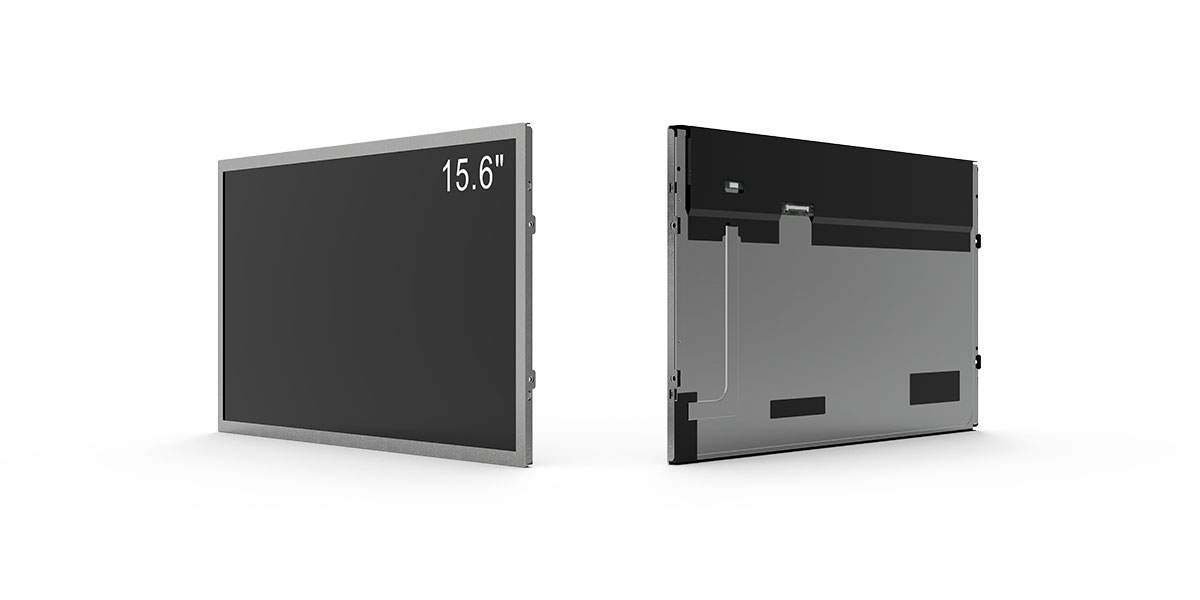

15.6 Inch Industrial High Brightness LCD Panel
Model No.: RS156HAN-GE10
Size: 15.6 inch
Resolution: 1920*1080
Brightness: 500 to 5000 nits
Category: high brightness LCD panel
MTBF：50000H
RS156HAN-GE10 Specifications
| Panel Brand | RisingStar | Panel Model | RS156HAN-GE10 |
| Panel Size | 15.6″ | Panel Type | a-Si TFT-LCD ，LCM |
| Resolution | 1920(RGB)×1080 | Pixel Format | RGB Vertical Stripe |
| Display Area | 344.16(W)×193.59(H) mm | Bezel Opening | / |
| Outline Size | 363.8(W)×215.9(H)×9.3(D) mm | Surface | anti-glare (Haze 25%)，Hard coating (3H) |
| Brightness | 500 to 5000nits | Contrast Ratio | 1000:1 (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | Normally Black, Transmissive |
| Display Colors | 16.2M,99%sRGB | Response Time | 25(Typ.)(Tr+Td) ms |
| Frequency | 60Hz | Supply voltage | 3.3V (Typ.) |
| Weight | 600/660g (Typ./Max.) | Signal Interface | eDP (2 Lanes),30 pins |
| Environment | Operating Temp.:-20℃~70℃; Storage Temp.:-20℃~70℃ | ||
.
.

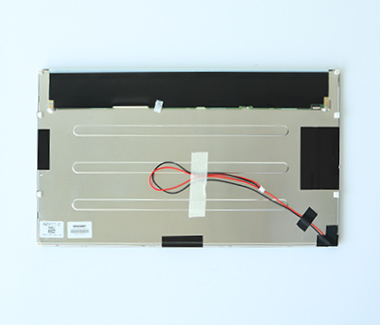

RisingStar Physical Products

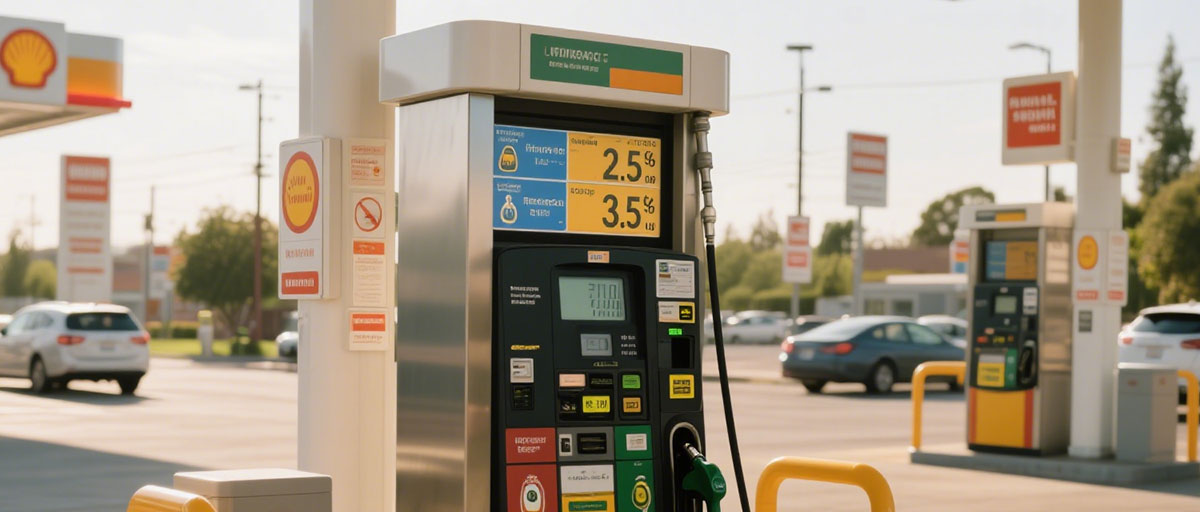

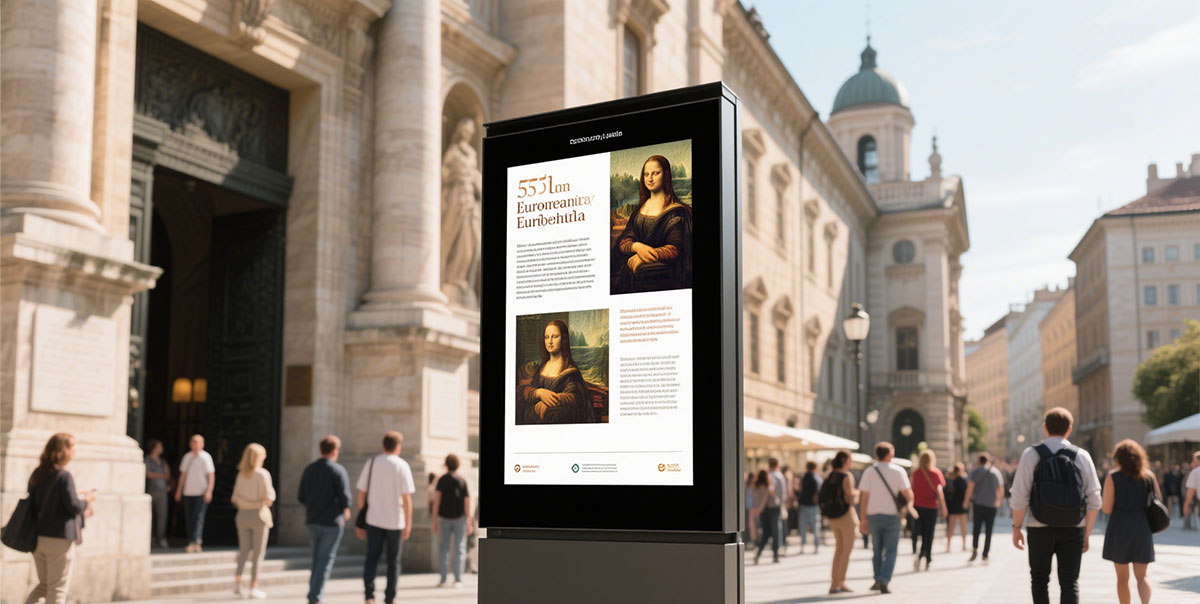

15.6 Inch Industry LCD Module case
Industrial-Grade Durability
Built to withstand the rigors of industrial environments, the RS156HAN features can withstand harsh temperatures, humidity, and vibrations. The panel’s durable construction ensures that it remains functional and reliable even in extreme conditions, minimizing downtime and maintenance costs.
Wide Viewing Angles
The RS156HAN advanced LCD technology provides wide viewing angles of up to 178°, ensuring that your display remains clear and readable from any angle. This feature is particularly useful in applications where multiple operators need to access the same display simultaneously.
High Contrast Ratio
With a high contrast ratio of 1000:1, the RS156HAN delivers crisp and vibrant images with deep blacks and rich colors. This feature enhances the overall visual experience, making it easier to focus on critical information and reduce eye fatigue.
Multi-Finger Touch Support（optional）
The RS156HAN features multi-finger touch support, allowing multiple operators to interact with the display simultaneously. This feature is particularly useful in applications where multiple people need to collaborate on the same display.
Compatibility and Integration
The RS156HAN is compatible with a wide range of industrial operating systems, including Windows, Linux, and Android. The panel’s versatile interface options include VGA, HDMI, and USB, making it easy to integrate with existing systems and equipment.
