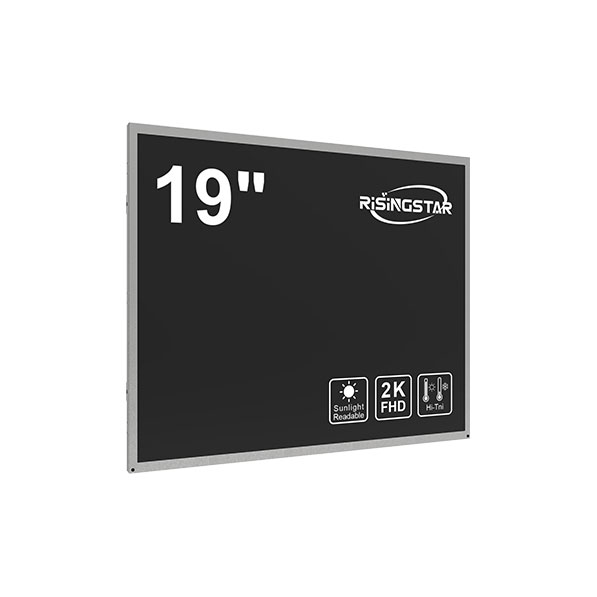

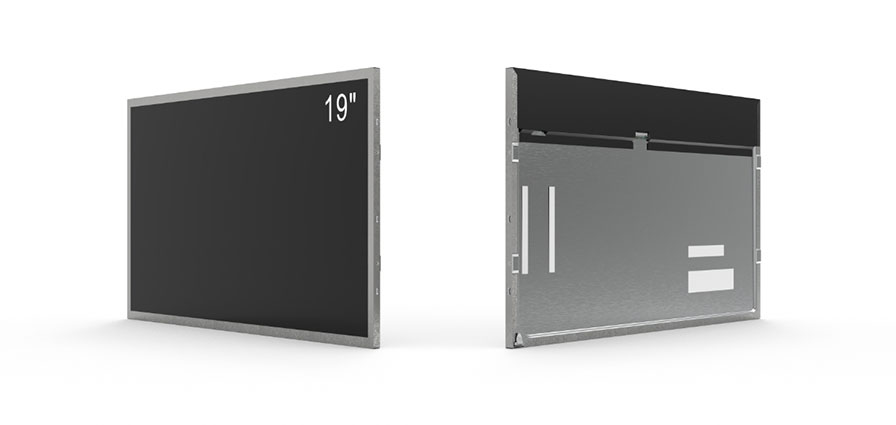

19 inch outdoor digital signage display 4:3
Model No.: RS190E0M-GE10
Size: 19 inch
Resolution：1920*1080 / 3840(RGB)×2160
Brightness：500 ~ 5000 nits
Operating Temperature：-20～70℃
MTBF：50000H
RS190E0M-GE10 Specification
| Panel Brand | RisingStar | Panel Model | RS190E0M-SXGA |
| Panel Size | 19.0″ | Aspect Ratio | 4:3 |
| Resolution | 1280×1024 (SXGA) | Pixel Density | 86 PPI |
| Display Area | 376.32(W) × 301.056(H) mm | Outline Size | 380.32 × 305.06 mm |
| Brightness | 500 ~ 5000 nits | Contrast Ratio | 1000:1 (Typ.) |
| Viewing Angle | 85/85/80/80 (CR ≥10) | Display Mode | TN, Normally White, Transmissive (IPS/VA optional) |
| Display Colors | 16.7M, 72% NTSC | Response Time | Tr 3.6ms / Td 1.4ms |
| Surface | Anti-glare, Hard Coating (3H) | Backlight | WLED + Driver, 50,000 Hours |
| Frame Rate | 60Hz / 120Hz MEMC / 240Hz MEMC | Signal Interface | 30-pin LVDS (2 channel, 8-bit) |
| Weight | 1.67 kg (Typ.) | Power Supply | 5.0V (Typ.) |
| Environment | Operating Temp: -20℃~70℃; Storage Temp: -20℃~70℃ | ||
| Applications | Industrial displays, outdoor kiosks, control terminals | ||
.
.
RisingStar Physical Products
。
RisingStar Connector
。
。

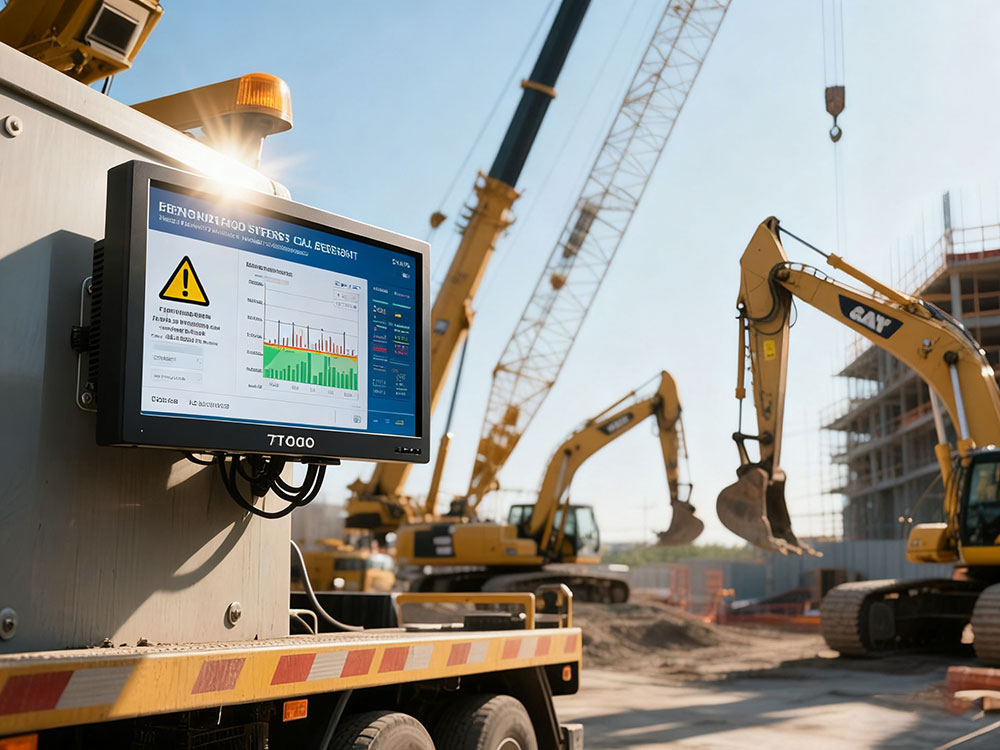

Application Cases
RisingStar Sunlight Readable LCD Other LCD Display
| Model name | Size (inch) | brightness | Resolution | Operating temperature |
|---|---|---|---|---|
| RS750ENT-GD40 | 75 | 4000 | 3840*2160 | -20 ~ 70 ℃ |
| RS750QUB-ND15 | 75 | 1500 | 3840*2160 | 0 ~ 50 ℃ |
| RS750SUB-ND10 | 75 | 1000 | 7680*4320 | 0 ~ 50 ℃ |
| RS750EQY-ND15 | 75 | 1500 | 3840*2160 | 0 ~ 50 ℃ |
| RS750EQY-ND20 | 75 | 2000 | 3840*2160 | 0 ~ 50 ℃ |
| RS750EQY-ND30 | 75 | 3000 | 3840*2160 | 0 ~ 50 ℃ |
| RS860EQL-GD40 | 86 | 4000 | 3840*2160 | -20 ~ 70 ℃ |
| RS860EQD-ND20 | 86 | 2000 | 3840*2160 | 0 ~ 50 ℃ |
| RS860EQY-ND20 | 86 | 2000 | 3840*2160 | 0 ~ 50 ℃ |
| RS860QUB-ND10 | 86 | 1000 | 3840*2160 | 0 ~ 50 ℃ |
| RS860SUB-ND10 | 86 | 1000 | 7680*4320 | 0 ~ 50 ℃ |
