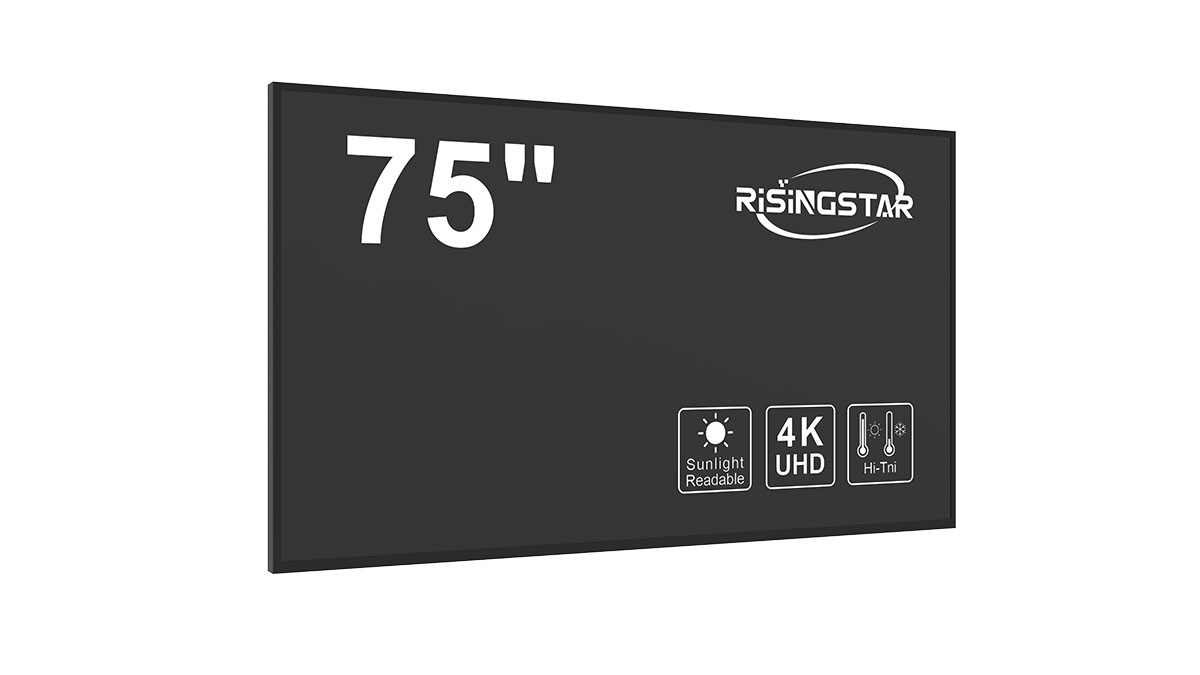

75 Inch 4000Nits Window Facing LCD Panel
Model No.: RS750ENT-GD40
Size: 75 inch
Life：50,000 hours
Resolution：1920*1080 / 3840(RGB)×2160
Brightness：2500/3000/4000/4500 Nits
Operating Temperature：-20～70℃
RS750ENT-GD40 Specification
| Panel Brand | RisingStar | Panel Model | RS750ENT-GD40 |
| Panel Size | 75″ | Panel Type | a-Si TFT-LCD ，LCM |
| Resolution | 3840(RGB)×2160 | Pixel Format | RGB Vertical Stripe |
| Display Area | 1649.664（H）× 927.936(V) mm (A.A) | Bezel Opening | / |
| Outline Size | 1684.7（H）× 970.4(V) × 64.8(D) mm | Surface | Hard coating(2H), Anti-glare low reflection treatment of the front polarizer (Haze 3%(Typ.)) |
| Brightness | 4000 cd/m²or customized | Contrast Ratio | 1100:1 (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | Normally Black, Transmissive |
| Display Colors | 16.7M | Response Time | 8 (Typ.)(Tr+Td) ms |
| Frequency | 60Hz | Supply voltage | 24V (Typ.) |
| Weight | TBD (Typ./Max.) | Signal Interface | LVDS 51 pins |
| Environment | Operating Temp.:-20℃~70℃; Storage Temp.:-20℃~70℃ | ||
.
.

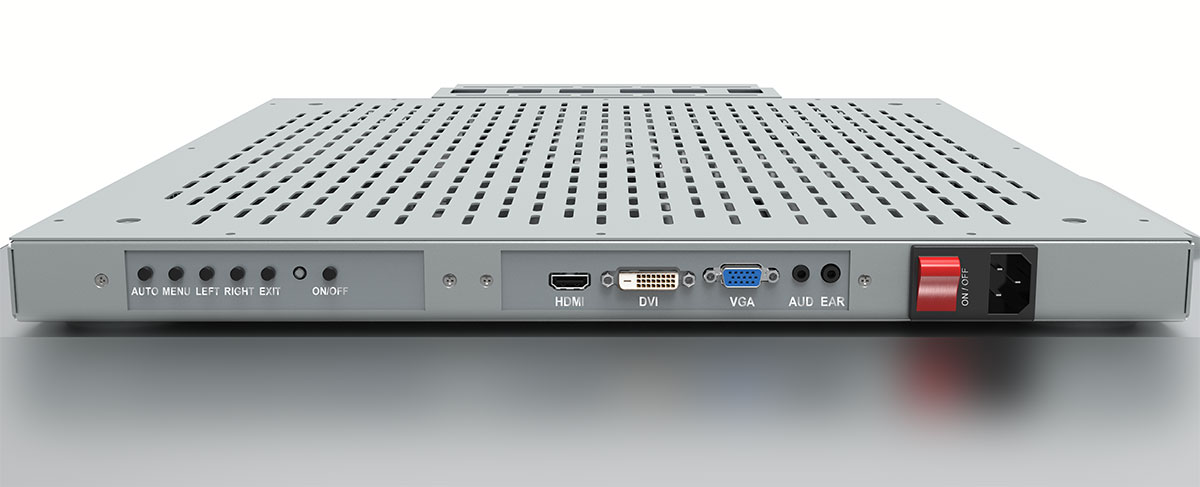

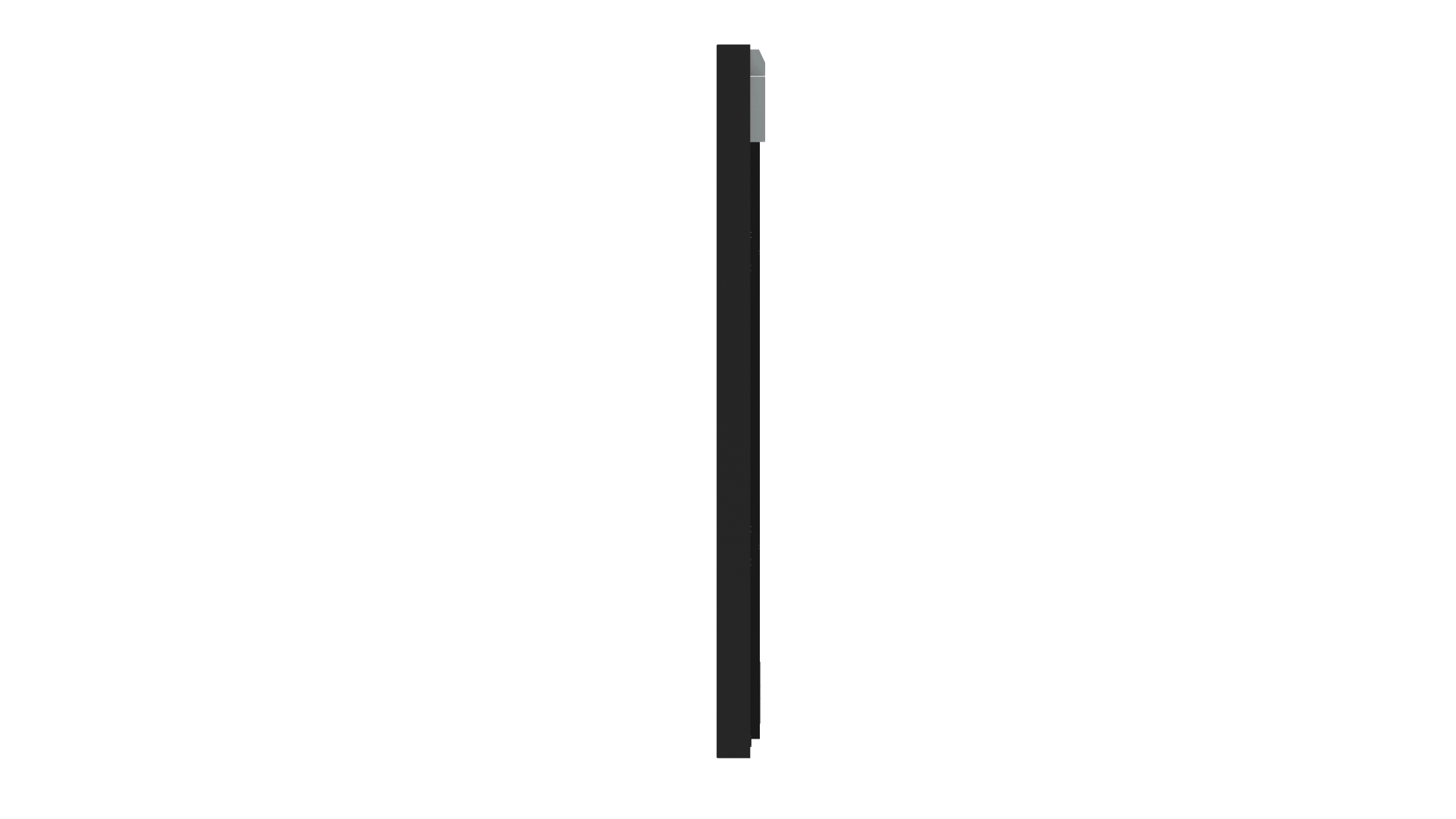

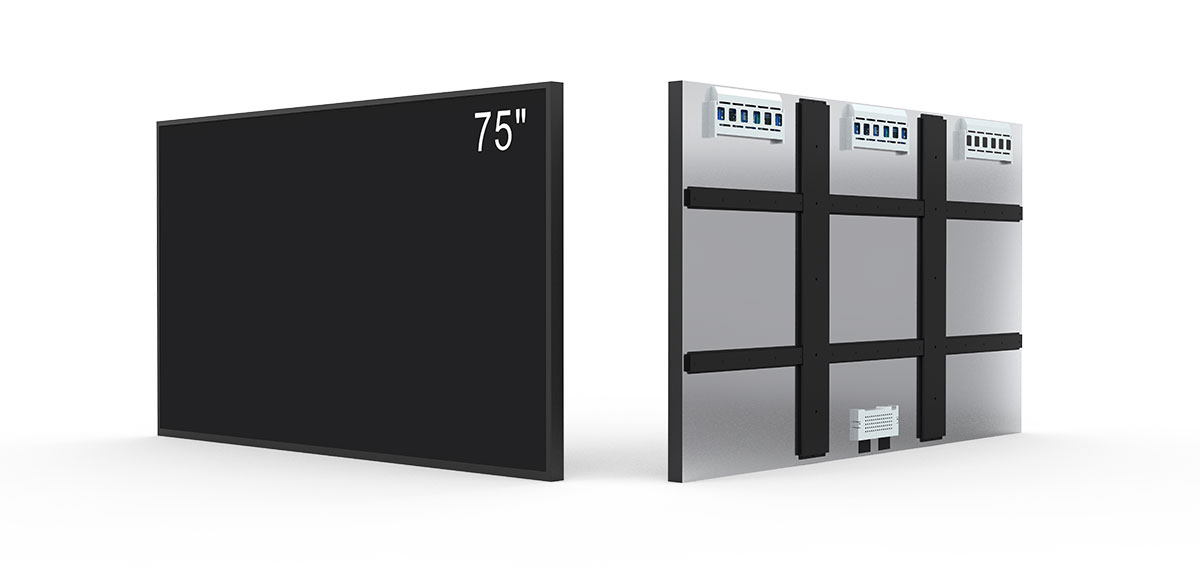

RisingStar Physical Products
。
RisingStar Connector
。
。

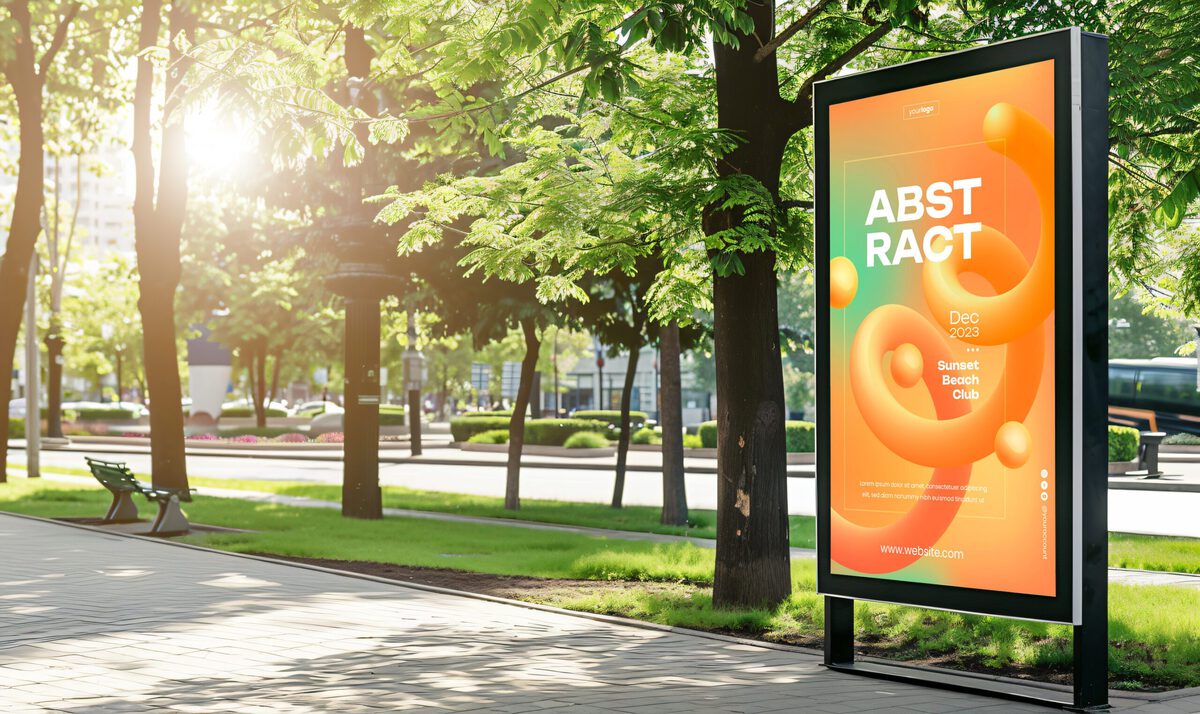

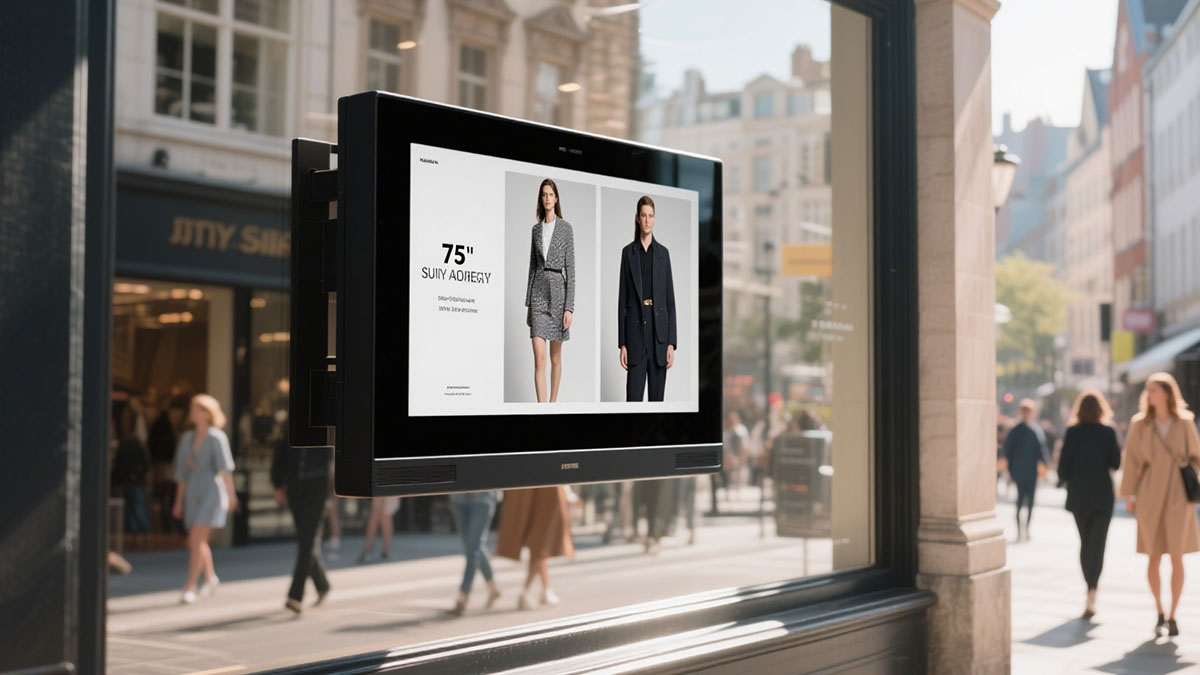

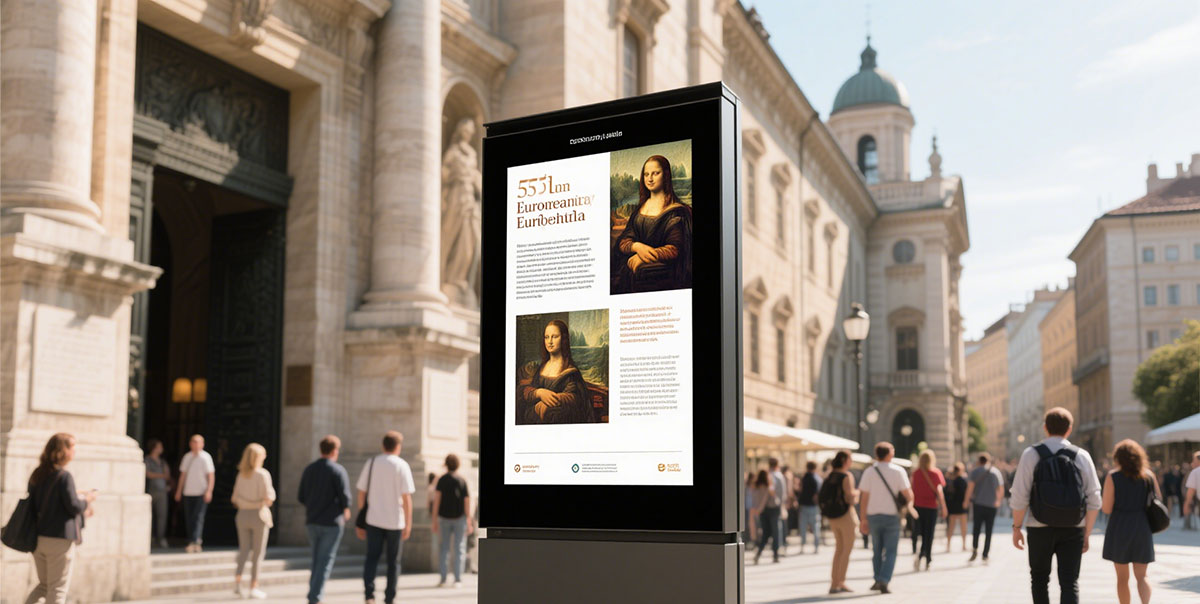

Application Cases
RisingStar Sunlight Readable LCD Other LCD Display
| Model name | Size (inch) | brightness | Resolution | Operating temperature |
|---|---|---|---|---|
| RS750ENT-GD40 | 75 | 4000 | 3840*2160 | -20 ~ 70 ℃ |
| RS750QUB-ND15 | 75 | 1500 | 3840*2160 | 0 ~ 50 ℃ |
| RS750SUB-ND10 | 75 | 1000 | 7680*4320 | 0 ~ 50 ℃ |
| RS750EQY-ND15 | 75 | 1500 | 3840*2160 | 0 ~ 50 ℃ |
| RS750EQY-ND20 | 75 | 2000 | 3840*2160 | 0 ~ 50 ℃ |
| RS750EQY-ND30 | 75 | 3000 | 3840*2160 | 0 ~ 50 ℃ |
| RS860EQL-GD40 | 86 | 4000 | 3840*2160 | -20 ~ 70 ℃ |
| RS860EQD-ND20 | 86 | 2000 | 3840*2160 | 0 ~ 50 ℃ |
| RS860EQY-ND20 | 86 | 2000 | 3840*2160 | 0 ~ 50 ℃ |
| RS860QUB-ND10 | 86 | 1000 | 3840*2160 | 0 ~ 50 ℃ |
| RS860SUB-ND10 | 86 | 1000 | 7680*4320 | 0 ~ 50 ℃ |
