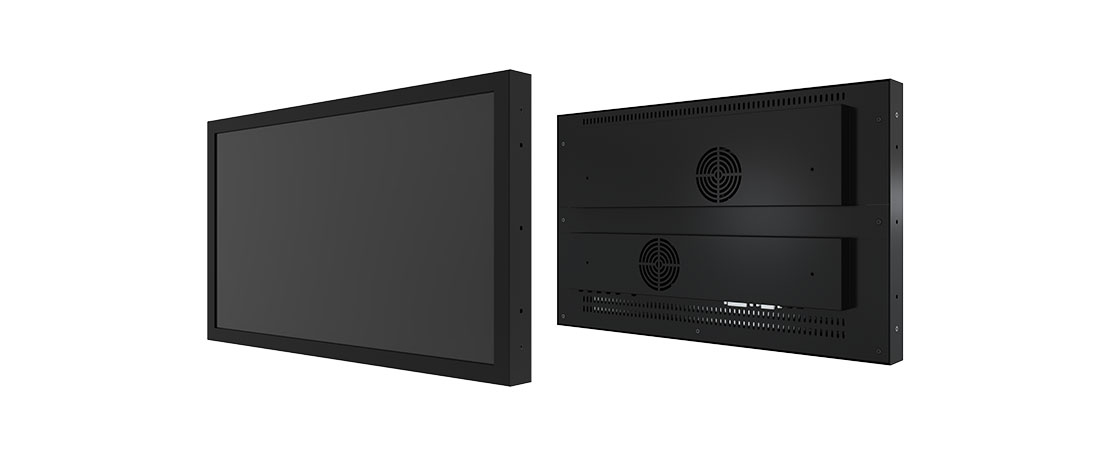

13.3 Inch Sunlight Readable Open Frame Monitor
Key Features
High Brightness: 2000 nits
Sunlight Readable Display
LED Backlight
Wide Viewing Angle: 178° (H) / 178° (V)
Wide Operating Temperature: -0°C ~ 50°C
LCD Blacking Defect Free
Low Power Consumption
Backlight Lifetime (MTBF): 50,000 hours
Intelligent Temperature Control System with active heat dissipation
Specifications
| Item | Description |
|---|---|
| Model Name | RS133FNX01D01-BK |
| Panel Structure (DLD) | Panel + LED Driving Board + AD Control Board + Housing |
| Screen Size | 13.3" |
| Display Area (mm) | 293.76 (H) × 165.24 (V) |
| Brightness | 2000 cd/m² |
| Resolution | 3840 × 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1800:1 |
| Pixel Pitch (mm) | 0.0765 (H) × 0.0765 (V) |
| Viewing Angle (CR≥10) | 89 / 89 / 89 / 89 (Min.) |
| Color Saturation (NTSC) | 71% |
| Display Colors | 16.7M |
| Response Time (Typical) | 30 ms (Tr/Td) |
| Input Interface | Earphone Out ×1, HDMI ×2, DP ×1, DC IN ×1 |
| OSD Keys | Power / Menu / Right / Left / Exit / Down / Up |
| Input Power | DC 12V ~ 5A |
| Power Consumption | 22W |
| Cooling System | Automatic heat dissipation |
| Dimensions (mm) | 313 × 189.5 × 40 |
| Mounting | 75 × 75 mm (M4 Screws) |
| Weight (Net) | TBD |
| Operating Temperature | -0°C ~ 50°C |
| Storage Temperature | -10°C ~ 60°C |
.
RisingStar Physical Products
RisingStar High Brightness LCD Display Solutions
Empowering Outdoor Visual Performance Worldwide
RisingStar is a trusted manufacturer specializing in high brightness LCD displays, sunlight readable screens, and outdoor digital signage solutions. With decades of engineering expertise and continuous R&D innovation, we provide reliable display technology designed for harsh outdoor and semi-outdoor environments — from EV charging stations, gas pumps, and retail signage, to passenger information systems, transport terminals, and outdoor televisions.
Our mission is simple: to make information visible, readable, and reliable — anytime, anywhere.
Why Choose RisingStar?
🌞 Sunlight Readable & Ultra-Bright
Featuring brightness levels up to 5000 nits, our high brightness LCD displays remain crystal clear even under direct sunlight. Each display adopts direct-type LED backlighting to ensure uniform luminance, high contrast, and long-term stability.
⚙️ Industrial-Grade Reliability
RisingStar displays are engineered for durability, featuring IP-rated waterproof structures, low power consumption, and optimized thermal management. Every panel undergoes extreme temperature testing (from -20°C to 70°C) to guarantee performance in all climates.
💡 Long Lifespan & Low Maintenance
With 50,000-hour backlight lifetime (MTBF) and lightweight aluminum housing, our displays deliver sustainable operation while minimizing maintenance and energy costs — ideal for large-scale deployment.
🧠 Smart Thermal Management
Our intelligent temperature control system ensures active heat dissipation, maintaining consistent performance even in demanding environments such as roadside kiosks or outdoor charging units.
🌍 Trusted by Global Partners
RisingStar works closely with European distributors, system integrators, and OEMs, helping them expand their product offerings with fully customized display modules and open-frame monitors. Our strong engineering support and after-sales service ensure a worry-free partnership.
Key Product Categories
Outdoor Digital Displays – Designed for public information, retail advertising, and smart city applications.
Sunlight Readable Displays – Perfect for kiosks, transportation hubs, and outdoor signage.
High Brightness LCD Displays – Offering 2500-5000 nits luminance for industrial and commercial use.
Open Frame Monitors – Compact, easy-to-integrate design for embedded or OEM projects.
Passenger Information Displays – Reliable 24/7 performance for railway, metro, and airport systems.
Each display is built with precision-engineered LED backlight systems, 178° wide viewing angle, and advanced anti-blackening technology to prevent dark spots under sunlight.
Certifications & Quality Assurance
All RisingStar displays comply with CE, RoHS, and IP65/IP67 standards. Every unit is inspected under strict ISO quality management processes, ensuring uniform brightness, accurate color reproduction, and stable operation in extreme conditions.
We continuously invest in R&D innovation and thermal simulation analysis to keep our designs ahead of industry standards — meeting global demands for energy efficiency, safety, and long-term reliability.
Applications & Success Stories
EV Charging Kiosks – 13.3" high brightness displays for European charging networks.
Fuel Dispensers – 13.3" sunlight readable LCD modules integrated into smart petrol pumps.
Public Transport – Passenger information displays operating in metro and rail systems.
Retail & QSR Digital Signage – Outdoor digital screens for high-traffic advertising.
Smart City Terminals – Interactive digital displays for information and wayfinding.
Through continuous cooperation with global integrators, RisingStar has helped European partners enhance visibility, improve uptime, and create long-lasting outdoor display solutions.
Commitment to Our Partners
RisingStar is more than a manufacturer — we are your engineering partner.
From project consultation and display customization to mass production and after-sales support, our technical team ensures every client receives professional guidance and timely response.
Together, we illuminate your brand under the brightest light.
