27 inch high brightness LCD open frame monitor
Key Features
High Brightness: 2500 nits, perfect for outdoor or high ambient light environments.
Sunlight Readable: Clear visibility even under direct sunlight.
LED Backlight: Long-lasting and energy-efficient illumination.
Wide Viewing Angle: 178° horizontal & 178° vertical.
Wide Operating Temperature: -20 ˚C to 60 ˚C.
LCD Blacking Defect Free: Ensures consistent display quality.
Low Power Consumption: Only 80W typical.
BL MTBF: 50,000 hours for reliable performance.
Intelligent Temperature Control: Active heat dissipation system for stable operation.
Specifications
| Feature | Description |
|---|---|
| Model Name | RS270FNX01D01-BK |
| Screen Size | 27" |
| Display Area (mm) | 478.656 (H) x 260.28 (V) |
| Brightness | 2500 cd/m² |
| Resolution | 1920 x 1080 (Full HD) |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 3000:1 |
| Pixel Pitch (mm) | 0.31125 (H) x 0.31125 (V) |
| Viewing Angle | 89/89/89/89 (Min.) (CR≥10) |
| Color Saturation (NTSC) | 72% |
| Display Colors | 16.7M |
| Response Time | 7/5 ms (Tr/Td Typ.) |
| Touch Type | PCAP (Projected Capacitive) |
| Glass | 3mm Tempered Glass OCR |

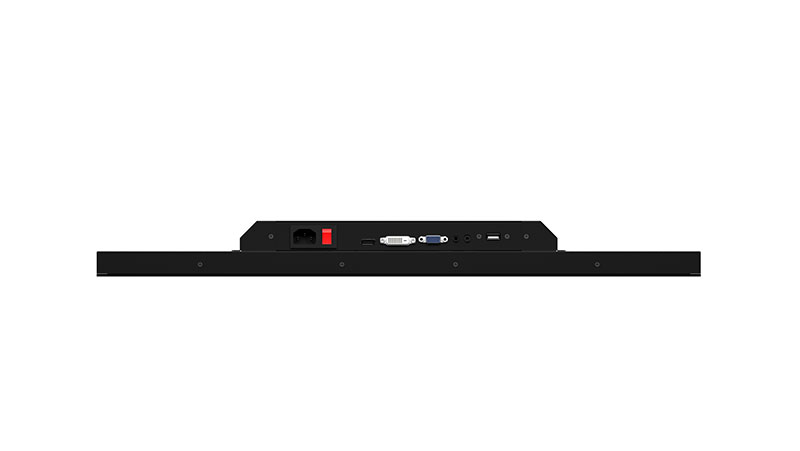

| Input Interfaces | USB Touch x1, Earphone Out x1, Audio In x1, VGA x1, DVI x1, HDMI x1, AC In x1 |
| OSD Keys | AUTO / MENU / LEFT / RIGHT / EXIT / SELECT / POWER |
| Input Power | AC 200-240V |
| Power Consumption | 80W |
| Radiator System | Automatic heat dissipation |
| Dimensions (mm) | 369 x 377 x 58.6 |
| Mounting | 100 x 100mm, metric M4 screws |
| Weight (Net) | TBD |
| Operating Temperature | -20 ˚C ~ 60 ˚C |
| Storage Temperature | -20 ˚C ~ 70 ˚C |
| Composition | Panel + LED Driving Board + AD Control Board + Housing |

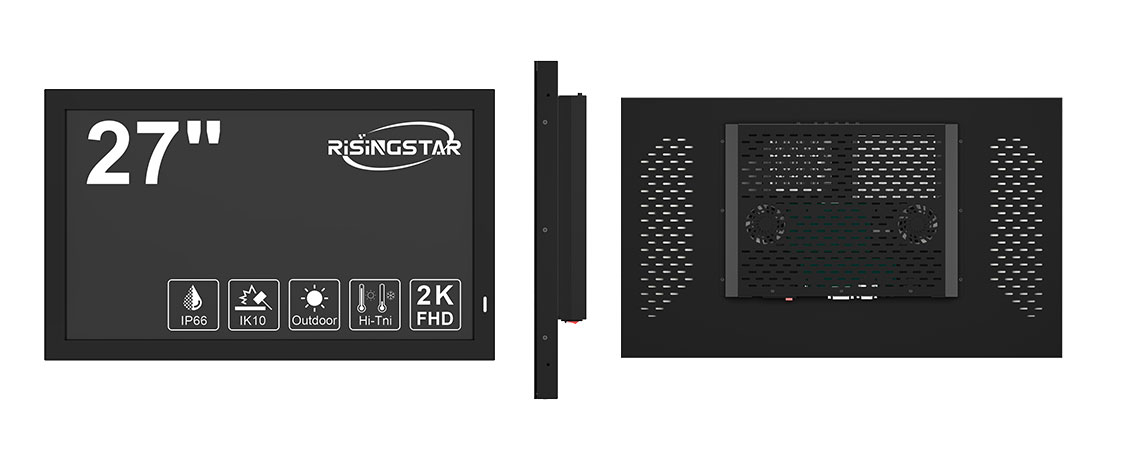

27" High Brightness LCD Open Frame Monitor – RS270FNX01D01-BK
Discover RisingStar’s 27" high brightness LCD open frame monitor, engineered for outdoor digital signage, passenger information displays, and demanding industrial applications. With 2500 nits brightness and sunlight-readable technology, it ensures crystal-clear visibility even under direct sunlight, making it ideal for transportation hubs, EV charging stations, gas stations, and retail environments.
Applications
Passenger Information Displays: Clear arrival/departure schedules at train stations, bus stops, and airports.
Outdoor Digital Signage: Effective brand advertising in retail plazas, EV charging stations, and gas stations.
Industrial & Transportation: Robust operation in harsh environmental conditions, including high sunlight, extreme temperatures, and heavy usage.
Case Example: Deployed in multiple European subway stations, the RS270FNX01D01-BK delivers consistent readability and reliable operation under bright sunlight and variable temperatures.
Why Choose RisingStar?
RisingStar specializes in high brightness LCD displays with proven performance in outdoor and industrial applications. Our products combine high-contrast panels, industrial-grade components, low power consumption, and intelligent heat management, backed by European certifications and industry-standard compliance.
We provide full technical support, installation guidance, and reliable after-sales service, enabling distributors and system integrators to deploy solutions in Europe with confidence and minimal risk.
FAQ
Q1: What makes a sunlight readable display essential for outdoor signage?
A: Sunlight readable displays, like this 27" monitor, maintain image clarity under direct sunlight, ensuring your messaging is visible anytime, anywhere.
Q2: Can this monitor operate in extreme temperatures?
A: Yes, it supports -20 °C to 60 °C operation, with an intelligent heat dissipation system to prevent overheating.
Q3: What environments are ideal for this monitor?
A: Outdoor digital signage, EV charging stations, gas stations, train stations, bus stops, airports, and industrial control rooms.
Q4: How long does the backlight last?
A: Typical LED backlight life is 50,000 hours, ensuring long-term reliability with low maintenance.
