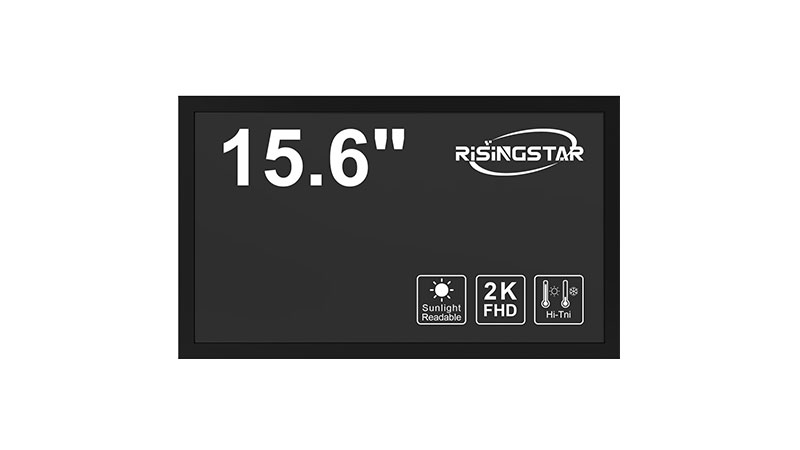

15.6 Inch Side Lit Open Back Monitor
Key Features
High Brightness: 1000 nits for exceptional visibility under sunlight
Sunlight Readable: Ideal for outdoor and high ambient light environments
LED Backlight: Energy-efficient with uniform illumination
Wide Viewing Angle: 178° (H) / 178° (V) for excellent visibility from any direction
Wide Operating Temperature: -20°C ~ 60°C
LCD Blacking Defect Free: Ensures reliability under direct sunlight
Low Power Consumption: Designed for long-term, energy-efficient operation
Long Lifespan: Backlight MTBF up to 50,000 hours
Intelligent Temperature Control System: Active heat dissipation for stable performance
Specifications
| Item | Description |
|---|---|
| Model Name | RS156FNX01D01 |
| Screen Size | 15.6" |
| Display Area (mm) | 344.16 (H) × 193.59 (V) |
| Brightness | 1000 cd/m² |
| Resolution | 1920 × 1080 (Full HD) |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 800:1 |
| Pixel Pitch (mm) | 0.17925 (H) × 0.17925 (V) |
| Viewing Angle (CR≥10) | 89/89/89/89 (Min.) |
| Color Saturation (NTSC) | 73% |
| Display Colors | 16.7M |
| Response Time (Typ.) | 14 ms (Tr/Td) |

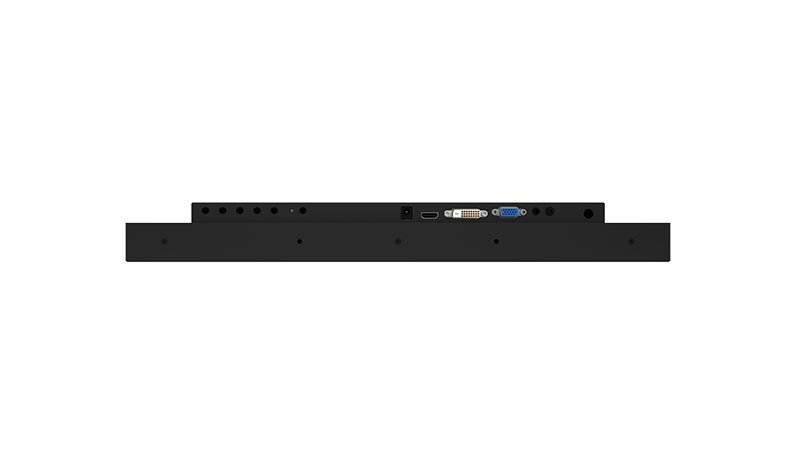

| Input Interfaces | EARPHONE OUT ×1, AUDIO IN ×1, VGA ×1, DVI ×1, HDMI ×1, DC IN ×1 |
| OSD Keys | AUTO / MENU / LEFT / RIGHT / EXIT / SELECT / POWER |
| Input Power | DC 12V ~ 5A |
| Power Consumption | 22W |
| Cooling System | Automatic heat dissipation |
| Dimensions (mm) | 366.5 × 218.5 × 43.5 |
| Mounting | 100 × 100 mm (VESA), Screws Metric M4 |
| Weight (Net) | TBD |
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
