21.5 Inch Direct Lit Open Frame Monitor (With tempered glass)
Key Features
High Brightness: 1000 nits, Sunlight Readable
LED Backlight with long lifespan (BL MTBF: 50,000 hours)
Wide Viewing Angle: 178° Horizontal / 178° Vertical
Wide Operating Temperature: -20°C ~ 60°C
LCD Blacking Defect Free
Low Power Consumption: 35 W typical
Intelligent Temperature Control System with Active Heat Dissipation

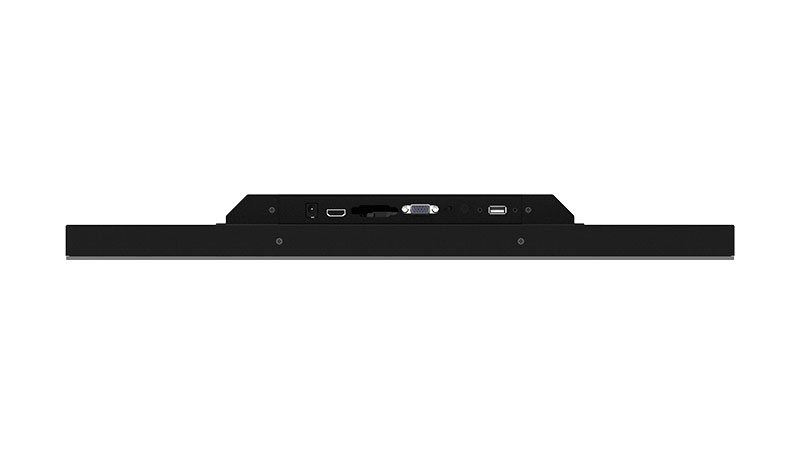

Multiple Input Interfaces: HDMI, DVI, VGA, Audio In/Out, DC In
OSD Keys: AUTO / MENU / LEFT / RIGHT / EXIT / SELECT / POWER
Technical Specifications
| Parameter | Details |
|---|---|
| Screen Size | 21.5” |
| Display Area (mm) | 476.64(H) x 268.11(V) |
| Brightness | 1000 cd/m² |
| Resolution | 1920 x 1080 (Full HD) |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1200:1 |
| Pixel Pitch (mm) | 0.24825(H) x 0.24825(V) |
| Viewing Angle | 89/89/89/89° (Min., CR≥10) |
| Color Saturation (NTSC) | 73% |
| Display Colors | 16.7M |
| Response Time | 14 ms (Typ., Tr/Td) |
| Input Interface | HDMI x1, DVI x1, VGA x1, Audio In x1, Earphone Out x1, DC In x1 |
| Touch Type | N/A |
| Protective Glass | N/A |
| OSD Key | AUTO / MENU / LEFT / RIGHT / EXIT / SELECT / POWER |
| Input Power | DC 12V~5A |
| Power Consumption | 35 W |
| Radiator System | Automatic heat dissipation |
| Dimensions (mm) | 498.5 x 295.4 x 48.5 |
| Mounting | 100x100 mm, Screws metric M4 |
| Weight (Net) | TBD |
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
