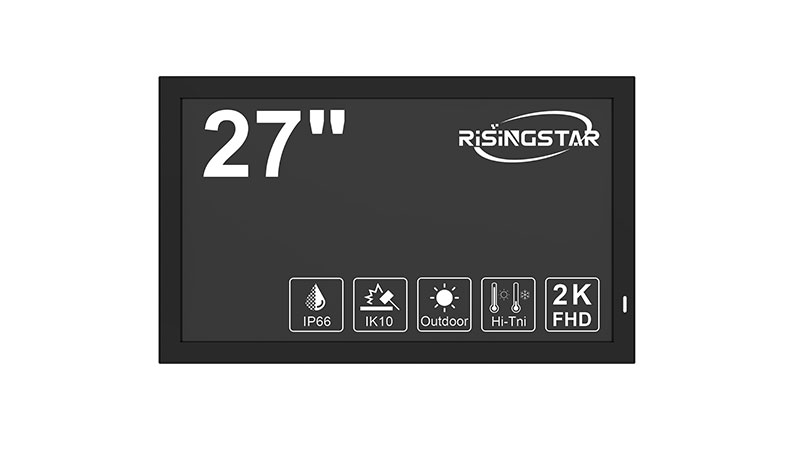

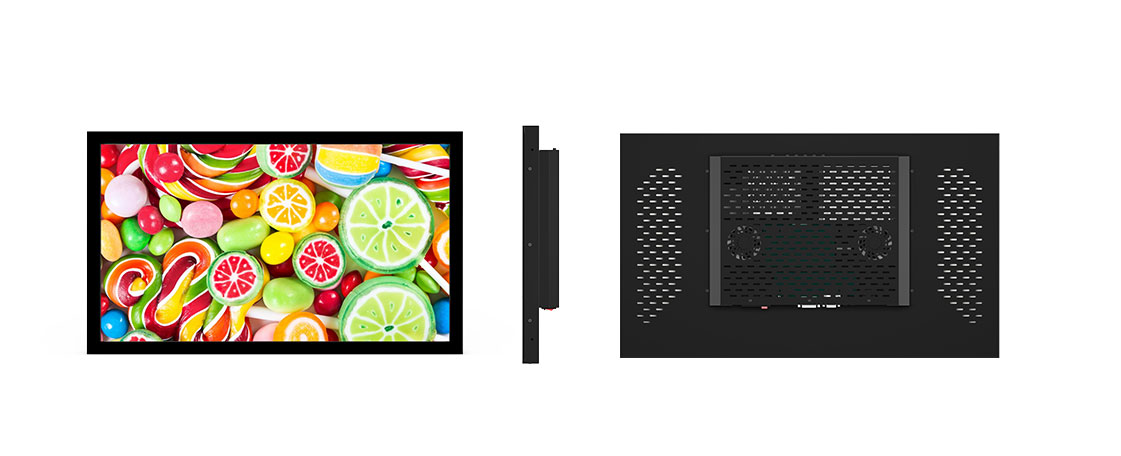

27 Inch Side Lit Open Frame Display
Key Features
High Brightness: 1500 nits for excellent visibility even under direct sunlight
Sunlight Readable: Ideal for outdoor and semi-outdoor environments
LED Backlight: Ensures energy efficiency and stable performance
Wide Viewing Angle: 178°(H) / 178°(V) for clear visibility from any direction
Wide Operating Temperature: -20˚C to 60˚C for reliable use in harsh conditions
LCD Blacking Defect Free: Maintains clear image under high temperature exposure
Low Power Consumption: Energy-saving design for continuous operation
BL MTBF: 50,000 hours for long product lifespan
Intelligent Temperature Control System: Active heat dissipation ensures durability
Specifications
| Item | Description |
|---|---|
| Model Name | RS270FNX01D02 |
| Screen Size | 27" |
| Display Area (mm) | 478.656 (H) × 260.28 (V) |
| Brightness | 1500 cd/m² |
| Resolution | 1920 × 1080 (Full HD) |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1200:1 |
| Pixel Pitch (mm) | 0.31125 (H) × 0.31125 (V) |
| Viewing Angle (CR≥10) | 89/89/89/89 (Min.) |
| Color Saturation (NTSC) | 72% |
| Display Colors | 16.7M |
| Response Time (Typ.) | 7/5 ms (Tr/Td) |

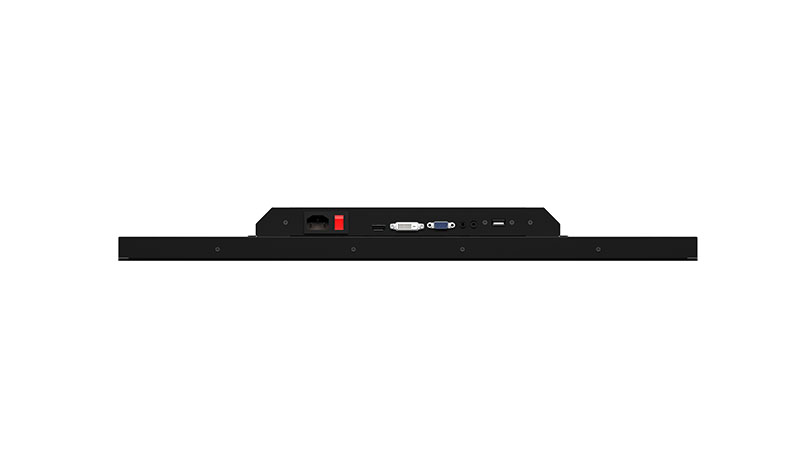

| Input Interface | EARPHONE OUT ×1, AUDIO IN ×1, VGA ×1, DVI ×1, HDMI ×1, AC IN ×1 |
| OSD Keys | AUTO / MENU / LEFT / RIGHT / EXIT / SELECT / POWER |
| Glass | N/A |
| Touch Type | N/A |
| Input Power | AC 100–240V |
| Power Consumption | 55W |

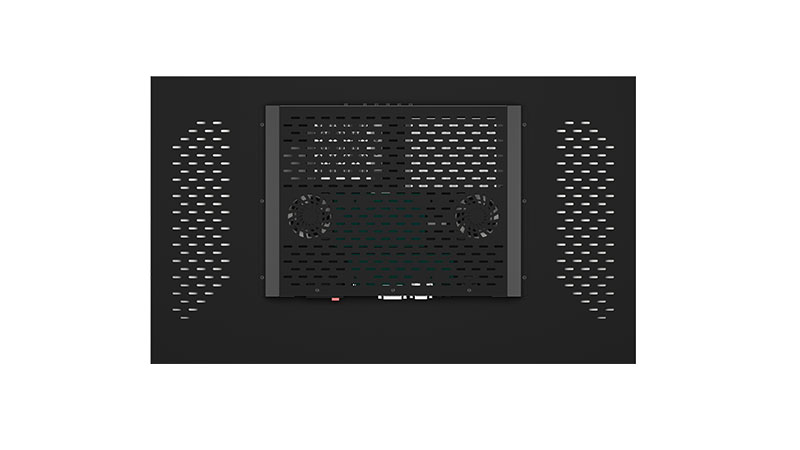

| Cooling System | Automatic heat dissipation |
| Dimensions (mm) | 633 × 371 × 55.5 |
| Mounting | 100 × 100mm (VESA) |
| Weight (Net) | TBD |
| Operating Temperature | -20˚C ~ 60˚C |
| Storage Temperature | -20˚C ~ 70˚C |
27 Inch Side‑Lit Open Frame Display – High Brightness LCD for Outdoor & Sunlight Readable Applications
Overview
The RisingStar 27 inch Side‑Lit Open Frame Display is a high brightness LCD display designed for demanding outdoor environments. With a peak brightness of 1500 nits, a wide 178° viewing angle, and robust industrial-grade construction, it delivers crystal-clear, sunlight readable display performance for a variety of applications. Ideal for passenger information displays, outdoor digital signage, window-facing displays, EV charging stations, and fuel dispensers, this display ensures maximum visibility and reliability in all lighting conditions.
Key Features
High Brightness 1500 nits – ensures visibility even under direct sunlight.
Sunlight Readable – optimized optical design for outdoor environments.
Side-Lit LED Backlight – energy-efficient, uniform illumination.
Wide Viewing Angle 178° H/V – ensures consistent image quality from any angle.
Wide Operating Temperature (-20 °C ~ 60 °C) – built for extreme outdoor conditions.
Industrial-Grade Quality – low power consumption, long lifespan with BL MTBF: 50,000 hours.
Slim and Lightweight Aluminum Frame – easy integration into kiosks, EV charging stations, and other signage installations.
Why it matters: High brightness and wide temperature range make this display suitable for passenger information display systems, outdoor digital signage, and window-facing displays where clarity under sunlight is critical.
Applications
Outdoor Digital Signage
RisingStar’s 27 inch side-lit display provides clear and vibrant signage solutions for urban streets, retail plazas, and public spaces. Its sunlight readability ensures your promotional or informational content is always visible.
Passenger Information Display
Ideal for bus stops, metro stations, and transit hubs, this display guarantees real-time schedules, alerts, and passenger information are visible even in bright daylight or adverse weather.

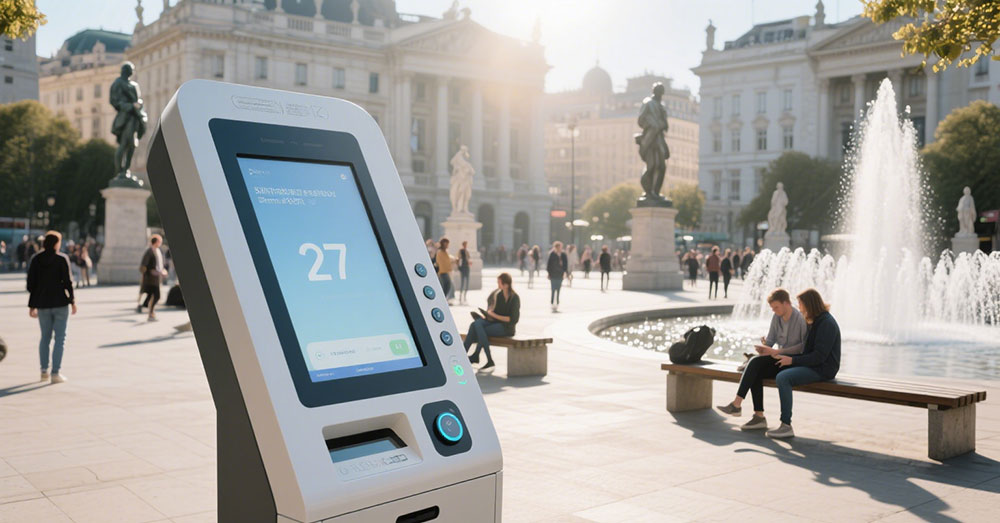

EV Charging Stations & Fuel Dispensers
With its durable aluminum housing and IP65-rated protection, this display withstands outdoor conditions while delivering high visibility digital content for drivers and operators.
Window-Facing Displays
Perfect for storefront windows and indoor displays facing sunlight, the high brightness ensures your advertisements remain readable without glare.
Why Choose RisingStar
RisingStar has over 20 years of experience in high brightness LCD displays, serving transportation, retail, and industrial signage sectors worldwide. Our displays are tested under extreme temperatures, built for durability, and backed by a reliable warranty. Choosing RisingStar means choosing trusted performance, long-term reliability, and industry expertise.
Case Study
City Metro Transit System – Installed at multiple stations, the 27 inch side-lit display maintained over 95% uptime during peak summer temperatures (up to 45 °C), ensuring passengers had access to real-time information even under bright sunlight.
FAQ
Q: What makes this display sunlight readable?
A: The high-brightness LED backlight, anti-glare optical film, and side-lit design ensure clear visibility under direct sunlight.
Q: Can it be used for EV charging stations?
A: Yes. Its IP65-rated housing, wide operating temperature, and slim profile make it ideal for outdoor installations, including EV charging points.
Q: How long is the backlight lifespan?
A: The side-lit LED backlight has a mean time between failures (MTBF) of 50,000 hours, ensuring years of reliable service.
