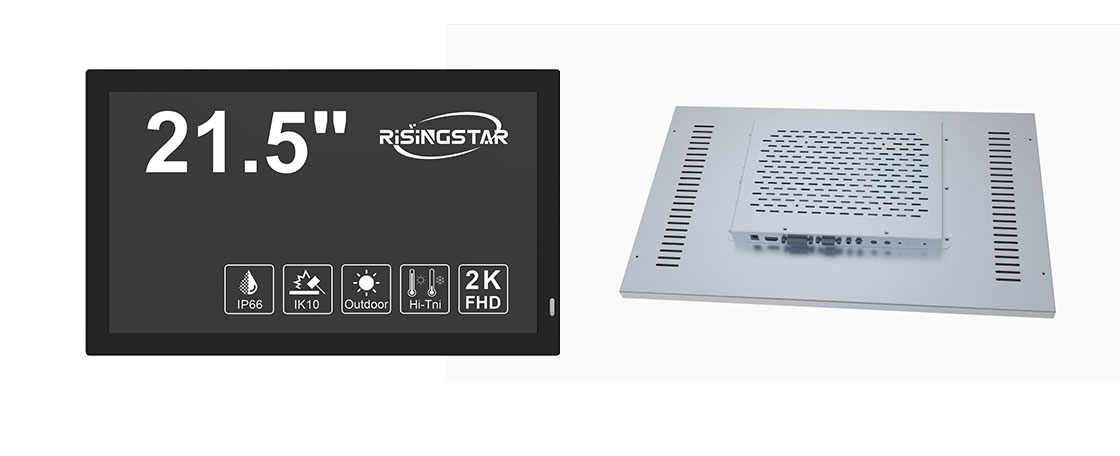

21.5 Inch Side Lit Open Frame Monitor
Key Features
High Brightness: 1000 nits, Sunlight Readable
LED Backlight with long lifespan (BL MTBF: 50,000 hours)
Wide Viewing Angle: 178° Horizontal / 178° Vertical
Wide Operating Temperature: -20°C ~ 60°C
LCD Blacking Defect Free
Low Power Consumption: 35 W typical
Intelligent Temperature Control System with Active Heat Dissipation
Multiple Input Interfaces: HDMI, DVI, VGA, Audio In/Out, DC In
OSD Keys: AUTO / MENU / LEFT / RIGHT / EXIT / SELECT / POWER
Technical Specifications
| Parameter | Details |
|---|---|
| Screen Size | 21.5” |
| Display Area (mm) | 476.64(H) x 268.11(V) |
| Brightness | 1000 cd/m² |
| Resolution | 1920 x 1080 (Full HD) |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1200:1 |
| Pixel Pitch (mm) | 0.24825(H) x 0.24825(V) |
| Viewing Angle | 89/89/89/89° (Min., CR≥10) |
| Color Saturation (NTSC) | 73% |
| Display Colors | 16.7M |
| Response Time | 14 ms (Typ., Tr/Td) |
| Input Interface | HDMI x1, DVI x1, VGA x1, Audio In x1, Earphone Out x1, DC In x1 |
| Touch Type | N/A |
| Protective Glass | N/A |
| OSD Key | AUTO / MENU / LEFT / RIGHT / EXIT / SELECT / POWER |
| Input Power | DC 12V~5A |
| Power Consumption | 35 W |
| Radiator System | Automatic heat dissipation |

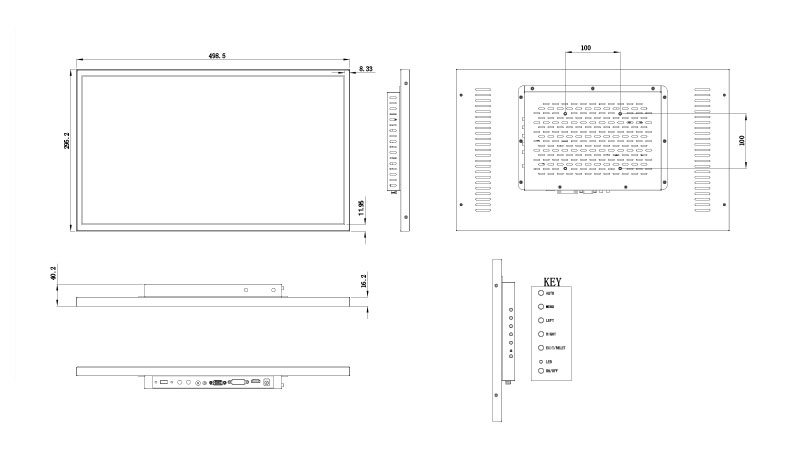

| Dimensions (mm) | 498.5 x 295.4 x 48.5 |
| Mounting | 100x100 mm, Screws metric M4 |
| Weight (Net) | TBD |
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
RisingStar 21.5” Open Frame Monitor – Edge-Lit Backlight & Sunlight Readable
Model: RS215FNX01D01
Why Side-Lit (Edge-Lit) Backlight Matters
The side-lit LED (Edge-lit) design is a key feature of this monitor, offering:
Slim & Lightweight Design: Allows the monitor to maintain a compact, open-frame structure without sacrificing display area.
Uniform Brightness Distribution: Advanced light guide technology ensures consistent illumination across the entire screen.
Energy Efficiency: Side-lit backlight consumes less power than traditional direct-lit solutions, reducing operational costs.
Low Heat Emission: Active heat dissipation and intelligent temperature control maintain stable performance even under continuous outdoor operation.
Industrial Durability: Suitable for harsh environments, including outdoor kiosks, passenger information displays, and EV charging stations.
With edge-lit backlight, the 21.5” open frame monitor achieves high brightness, sunlight readability, and a slim, industrial-grade design, making it ideal for outdoor digital signage and interactive applications.
Technical Highlights (Side-Lit LED)
| Feature | Details |
|---|---|
| Backlight Type | Edge-Lit LED (Side-Injection) |
| Brightness | 1000–2500 nits (depending on model) |
| Power Consumption | Lower than direct-lit backlight for same brightness |
| Heat Management | Intelligent active heat dissipation system |
| Display Uniformity | >90% brightness uniformity across screen |
Applications Optimized for Edge-Lit Design
Slim Outdoor Signage: Compact profile with high readability

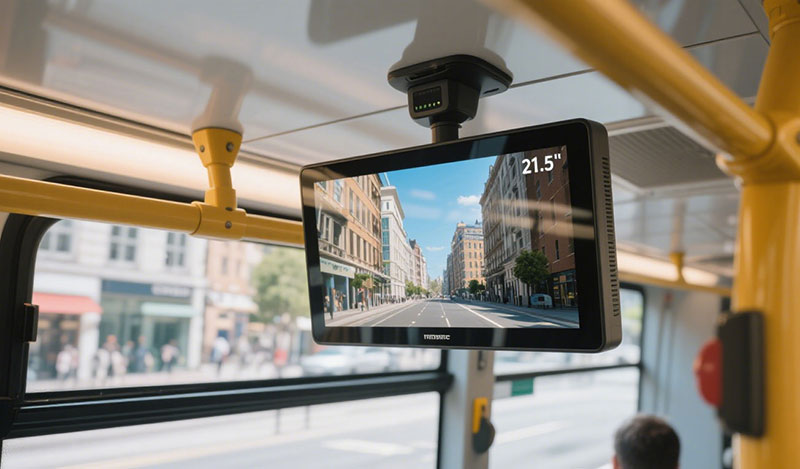

Passenger Information Displays: Large clear visuals without heavy frame
Interactive Kiosks & Industrial Panels: Energy-efficient and low-heat operation
EV Charging Stations & Public Spaces: Reliable performance with sunlight readable clarity
Why Choose RisingStar?
Experience: Over a decade of designing and manufacturing high-brightness LCD displays for outdoor and industrial applications.
Expertise: Advanced LED backlight technology, sunlight-readable performance, and industrial-grade design.
Authoritativeness: ISO-certified production, tested under extreme temperatures, trusted by clients across Europe and Asia.
Trustworthiness: Long lifespan, robust tempered glass protection, comprehensive technical support, and after-sales service.
Case Study / Customer Reference
"Installed in European metro stations, RisingStar 21.5” open frame monitors maintained full visibility under direct sunlight and extreme temperatures, delivering reliable passenger information and consistent performance."
FAQ
Q1: What makes a 21.5” open frame monitor better than smaller sizes?
A: Larger display provides higher readability and visibility for passengers and outdoor audiences, especially in high-traffic areas.
Q2: What brightness is needed for sunlight readable displays?
A: 2500 nits or higher is ideal for outdoor applications under direct sunlight.
Q3: Can the monitor withstand harsh outdoor conditions?
A: Yes, designed for -20°C to 60°C, with tempered glass protection and active heat dissipation.
Q4: What mounting options are supported?
A: 100x100mm and 200x200mm VESA mounting for flexible installation.
