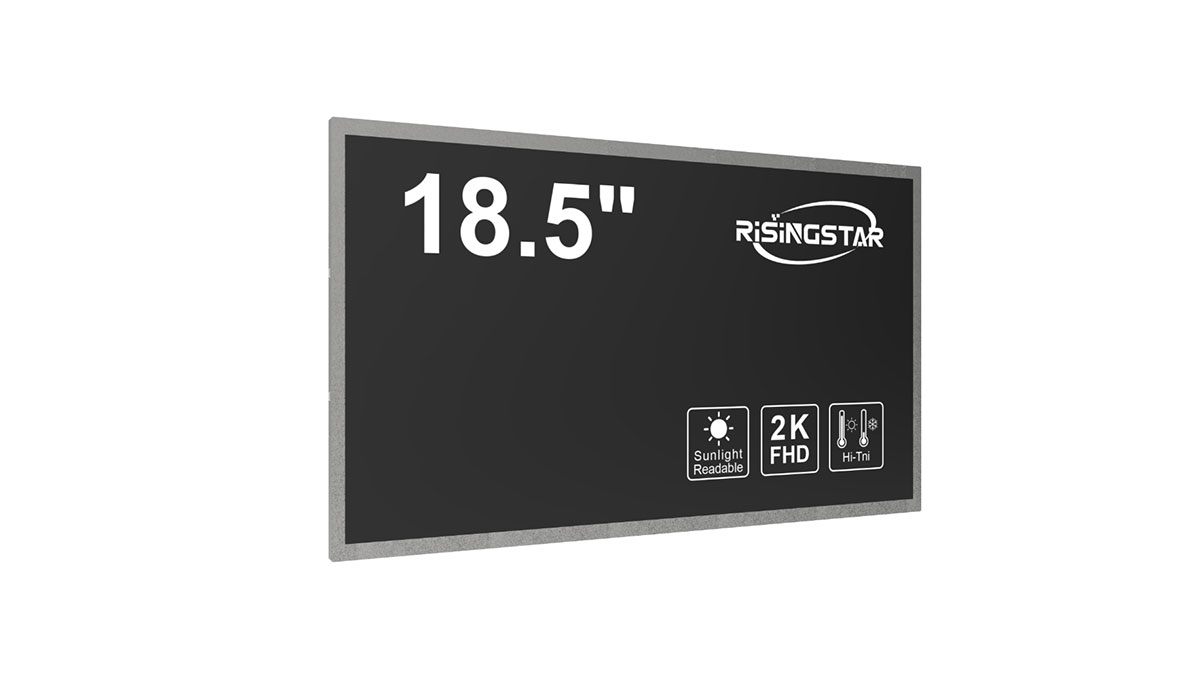

18.5 inch high brightness LCD open frame monitor
Key Features
High Brightness: 2500 nits
Sunlight Readable for outdoor visibility
LED Backlight for enhanced efficiency and uniform illumination
Wide Viewing Angle: 178° (H) / 178° (V)
Wide Operating Temperature: -20°C ~ +70°C
LCD Blacking Defect Free under sunlight exposure
Low Power Consumption for energy efficiency
Backlight Lifetime (MTBF): 50,000 hours
Intelligent Temperature Control System with active heat dissipation
Specifications
Composition: DLD = Panel + LED Driving Board + AD Control Board + Housing
| Item | Description |
|---|---|
| Model Name | RS185FNX01D01-BK |
| Screen Size | 18.5" |
| Display Area (mm) | 408.96 (H) × 230.04 (V) |
| Brightness | 2500 cd/m² |
| Resolution | 1920 × 1080 (Full HD) |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1000:1 |
| Pixel Pitch (mm) | 0.213 (H) × 0.213 (V) |
| Viewing Angle (CR≥10) | 89/89/89/89 (Min.) |
| Color Saturation (NTSC) | 73% |
| Display Colors | 16.7M |
| Response Time (Typ.) | 14 ms (Tr/Td) |

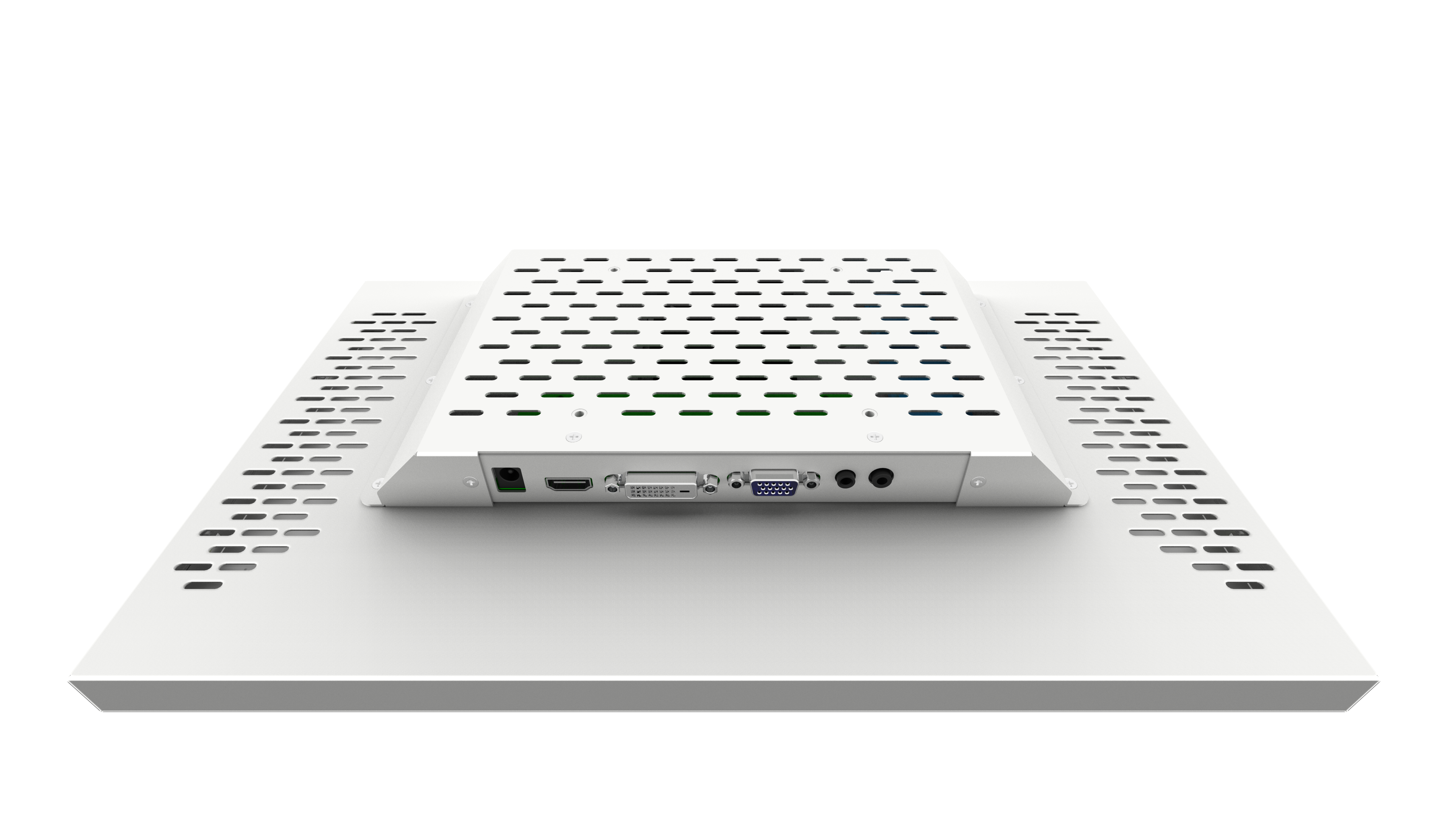

| Input Interface | EARPHONE OUT ×1 / AUDIO IN ×1 / VGA ×1 / DVI ×1 / HDMI ×1 / DC IN ×1 |
| OSD Keys | AUTO / MENU / LEFT / RIGHT / EXIT / SELECT / POWER |
| Input Power | DC 12V ~ 6A |
| Power Consumption | 55W |
| Cooling System | Automatic heat dissipation |

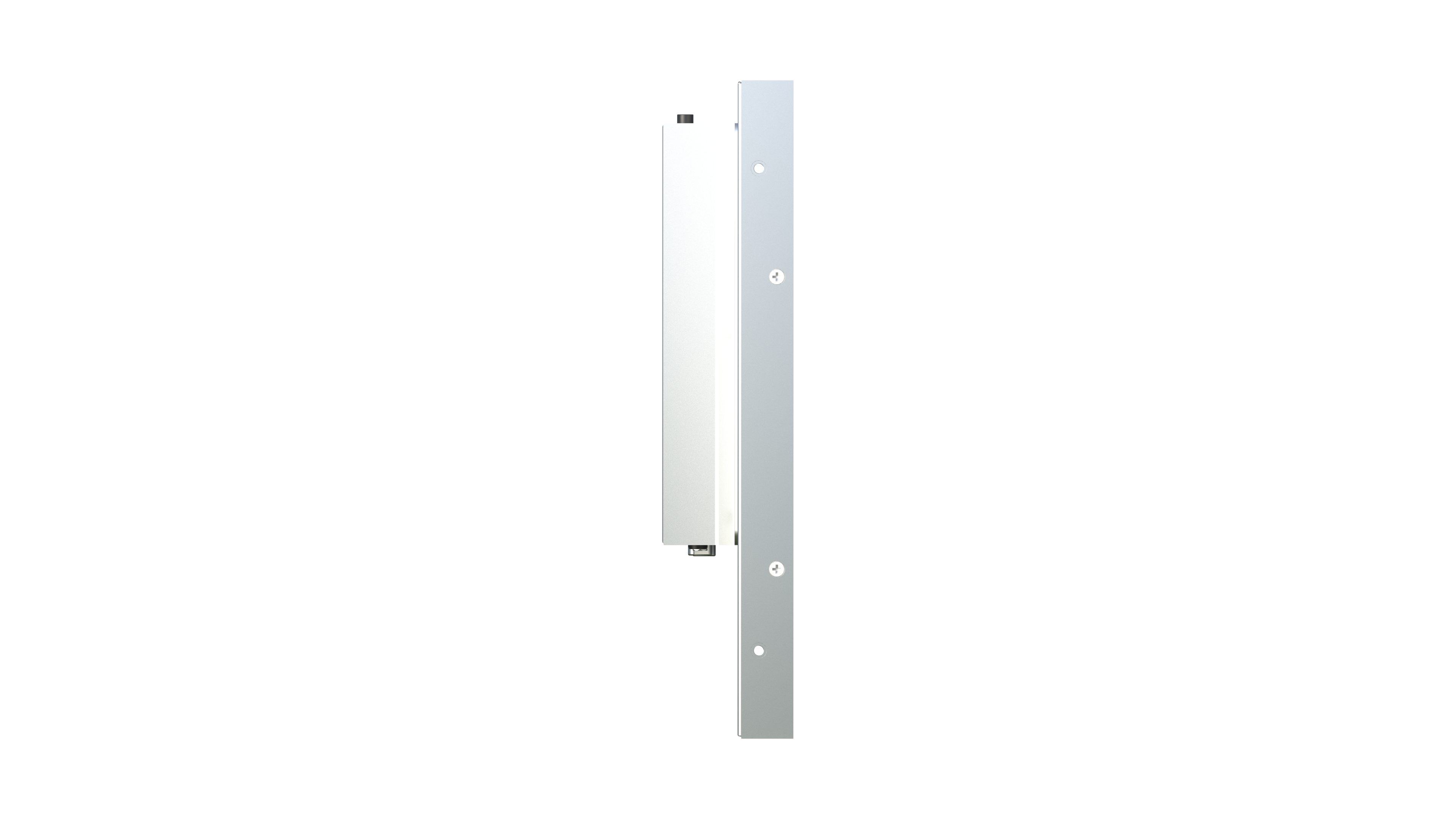

| Dimensions (mm) | 443 × 264 × 50 |

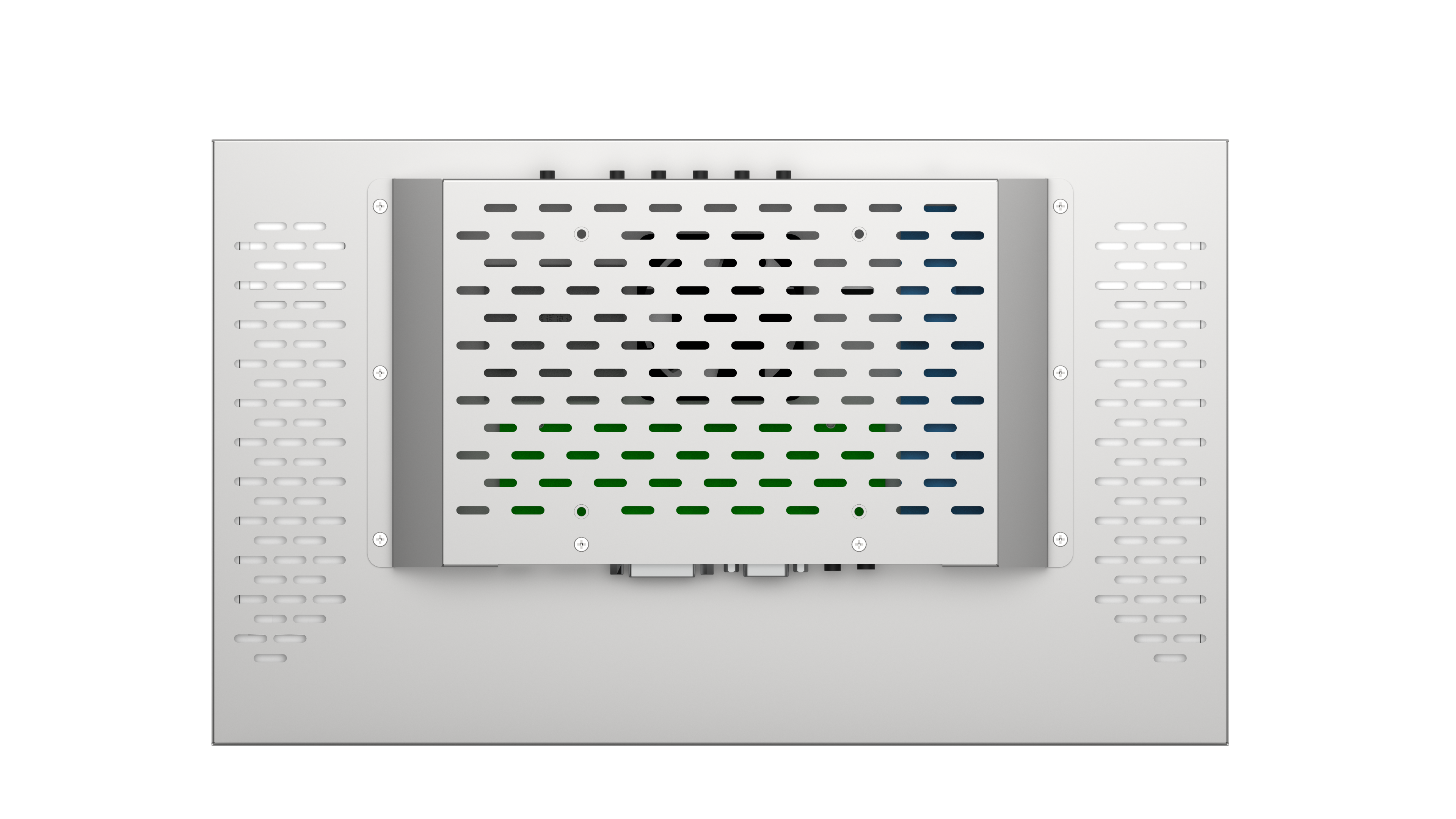

| Mounting | 100 × 300 mm (M4 Screws) |
| Weight (Net) | TBD |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |
18.5″ Open Frame Monitor – 2500 nits High Brightness Industrial Display
Sunlight Readable | Energy Efficient | Designed for Harsh Environments
RisingStar’s 18.5″ open frame monitor delivers exceptional clarity, reliability, and performance in demanding industrial and outdoor environments. With 2500 nits brightness, LED backlight, and a wide operating temperature range of −20 °C to +70 °C, it is engineered for sunlight readability and continuous operation — ideal for kiosk, transportation, retail, and EV charging applications.
Applications
1. Outdoor Digital Signage
Perfect for outdoor kiosks, retail window displays, and gas station signage. Its sunlight readable screen ensures crystal-clear visibility even under direct sunlight.
2. Transportation & Passenger Information Systems
Ideal for railway, metro, and bus stations, where displays must perform reliably in extreme weather and bright daylight. The 178° viewing angle guarantees visibility from all directions.

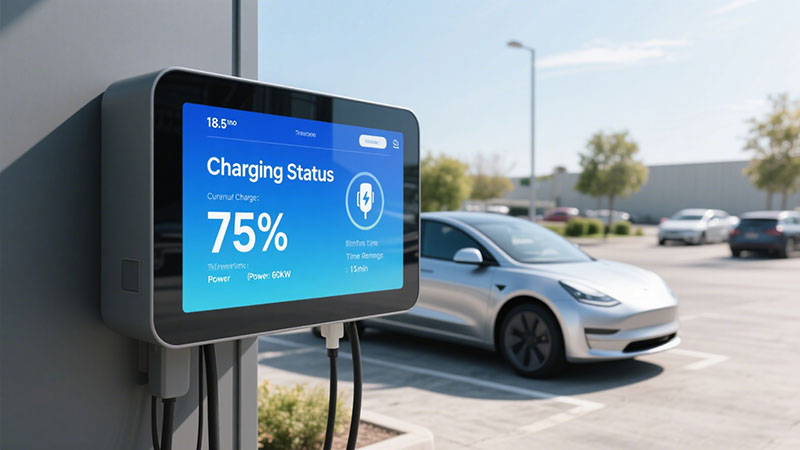

3. EV Charging & Smart Kiosks
The compact open frame design makes it easy to integrate into EV charging stations and self-service terminals. Its low power consumption and active cooling system ensure stability and long life.
4. Industrial & Automation Equipment
Engineered for continuous 24/7 operation in factories and control systems. The aluminum structure provides strength with reduced weight.
Why Choose RisingStar
With over a decade of experience in high-brightness LCD display manufacturing, RisingStar is a trusted supplier to OEMs, system integrators, and global distributors.
All products undergo extreme temperature testing, aging tests, and quality inspections to ensure consistent performance across harsh environments.
We provide custom brightness options (1500 nits – 5000 nits), wide-range sizes, and modular design support for easy system integration.
RisingStar’s industrial-grade open frame monitors are certified for CE / RoHS / IP standards, ensuring durability and compliance with international quality requirements.
Frequently Asked Questions (FAQ)
Q1: What is an open frame monitor?
An open frame monitor is a display without an external enclosure, designed to be integrated into kiosks, machines, or custom housings — ideal for OEM and industrial applications.
Q2: Can this 18.5″ open frame monitor operate in outdoor environments?
Yes. With 2500 nits brightness, anti-blackening LCD technology, and wide temperature tolerance (−20 °C ~ +70 °C), it performs reliably outdoors.
Q3: Does RisingStar offer customization?
Absolutely. We offer brightness customization (from 1500 to 5000 nits), touch options, different interfaces, and housing colors upon request.
Q4: What is the lifespan of the display?
The LED backlight lifetime reaches 50,000 hours, ensuring long-term stable performance with low maintenance.
