32 inch high brightness LCD open frame monitor
Key Features
High Brightness: 2000 nits
Sunlight Readable for excellent outdoor visibility
LED Backlight for enhanced contrast and energy efficiency
Wide Viewing Angle: 178°(H) / 178°(V)
Wide Operating Temperature: -20˚C ~ 60˚C
LCD Blacking Defect Free to ensure clear visibility under direct sunlight
Low Power Consumption design for industrial use
Backlight Lifetime (MTBF): 50,000 hours
Intelligent Temperature Control System with active heat dissipation for stable operation
Specifications
| Item | Description |
|---|---|
| Model Name | RS320FNX01D01 |
| Screen Size | 32" |
| Display Area (mm) | 698.4 (H) × 392.85 (V) |
| Brightness | 2000 cd/m² |
| Resolution | 1920 × 1080 (Full HD) |
| Aspect Ratio | 16 : 9 |
| Contrast Ratio | 1100 : 1 |
| Color Saturation (NTSC) | 66% |
| Display Colors | 16.7M |
| Response Time (Typical) | 10 ms (Tr/Td) |
| Input Interface | EARPHONE OUT ×1 / AUDIO IN ×1 / VGA ×1 / DVI ×1 / HDMI ×1 / AC IN ×1 |
| OSD Keys | AUTO / MENU / LEFT / RIGHT / EXIT / SELECT / POWER |
| Glass | N/A |
| Touch Type | N/A |
| Input Power | AC 200–240V |
| Power Consumption | ＜130W |
| Radiator System | N/A |
| Dimensions (mm) | 726.5 × 420.9 × 52 |
| Mounting | 300 × 200 mm |
| Weight (Net) | TBD |
| Operating Temperature | -20˚C ~ 60˚C |
| Storage Temperature | -20˚C ~ 70˚C |
32 Inch High Brightness LCD Open Frame Monitor – RS320FNX01D01
Sunlight Readable | Industrial Grade | Outdoor Digital Signage Solution
Overview
The RisingStar RS320FNX01D01 is a 32-inch high brightness LCD open frame monitor designed for outdoor digital signage, EV charging kiosks, passenger information systems, and retail window displays.
With 2000 nits brightness, wide temperature operation (-20°C to 60°C), and a durable industrial design, this model delivers perfect visibility and reliable performance even under direct sunlight.
Built on RisingStar’s decade-long expertise in sunlight readable LCD technology, this display combines advanced thermal management, superior energy efficiency, and consistent image clarity for demanding 24/7 outdoor environments.
Why Choose RisingStar’s 32-Inch High Brightness LCD Display?
1. Optimized for Outdoor Environments
Unlike traditional commercial monitors, the RS320FNX01D01 is engineered for outdoor sunlight readable applications. Its 2000 nits brightness and anti-blackening design ensure consistent performance even under intense sunlight, making it ideal for digital signage displays, passenger information systems, and smart city kiosks.
2. Industrial Durability
Designed with industrial-grade components, this display withstands extreme temperature variations, continuous operation, and environmental challenges. The aluminum structure is lightweight yet robust, supporting reliable use in demanding outdoor installations.
3. Intelligent Heat Management
Equipped with an intelligent temperature control system and active heat dissipation, the display maintains stable brightness and protects internal components from overheating — critical for long-term outdoor deployments.
4. Seamless Integration
The open frame structure allows flexible mounting and integration into kiosks, fuel dispensers, EV charging stations, or retail display systems. The standardized 300×200mm VESA interface ensures easy installation and maintenance.
Applications

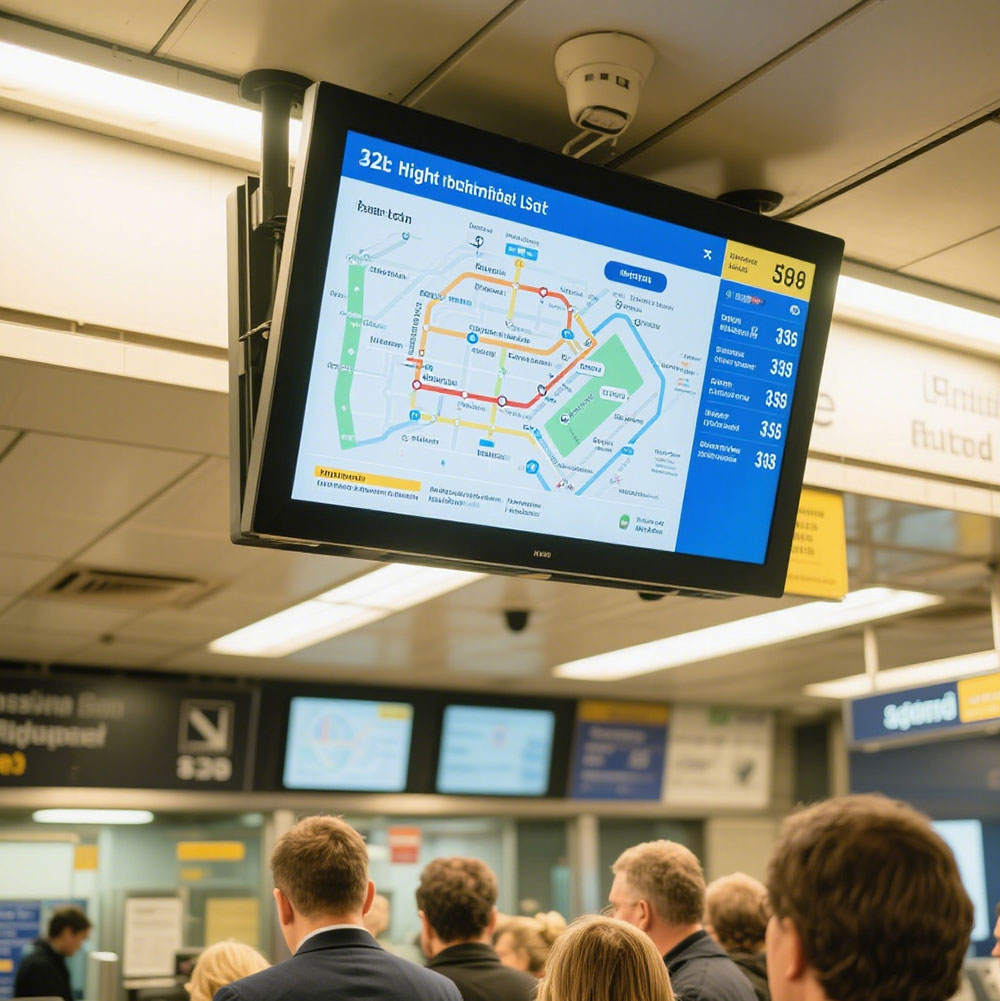

Passenger Information Displays — railway stations, metro platforms, and bus shelters.
Outdoor Digital Signage — shopping centers, outdoor advertising boards, building facades.
EV Charging & Fuel Stations — durable and sunlight-readable display for outdoor pricing and service information.
Retail & Window Displays — attracts customer attention even under daylight.
Smart City & Public Terminals — weatherproof and reliable for 24/7 information display.
Certifications & Reliability
Industrial Grade Quality Control – each unit undergoes rigorous temperature, vibration, and aging tests.
Compliance with CE, FCC, and RoHS standards.
Long-life LED backlight rated at 50,000 hours for minimal maintenance cost.
Extended temperature tolerance ensures stable operation in harsh outdoor conditions.
FAQ
Q1: Why is 2000 nits brightness necessary?
Because outdoor light can exceed 100,000 lux, only displays above 1500 nits can maintain full visibility. This model’s 2000-nit brightness ensures crystal-clear images even in strong sunlight.
Q2: Can this display work continuously 24/7?
Yes. With industrial components, efficient LED backlight, and active cooling, the RS320FNX01D01 supports 24/7 continuous operation.
Q3: Is this monitor suitable for kiosk or open-frame integration?
Absolutely. Its open-frame design with VESA mounting makes it easy to embed in kiosks, charging stations, and retail displays.
Q4: What’s the lifespan of the display?
The LED backlight provides up to 50,000 hours of operation, equivalent to over 5 years of continuous use.
Q5: Does RisingStar offer customization?
Yes. Brightness level, touch integration, or waterproof housing customization are available upon request.
About RisingStar
RisingStar Outdoor High Light LCD Co., Ltd. is a professional manufacturer specializing in high brightness LCD displays and sunlight readable digital signage solutions.
Founded in 2010 and headquartered in Shenzhen, China, RisingStar serves clients in transportation, retail, energy, and smart city sectors across Europe, the Middle East, and Asia.
Our engineering team has over a decade of experience in industrial display technology, ensuring each product meets global standards for performance, reliability, and safety.
For partnerships or distribution inquiries, contact:
📧 sales@risinglcd.com | 🌐 www.rising-lcd.com
