32 Inch High Brightness Sunlight Readable LCD Panel
Model No.: RS320HAN-GD30
Size: 32 inch
Resolution：1920*1080 / 3840(RGB)×2160
Brightness：1000 to 5000 Nits
Operating Temperature：-20～70℃
MTBF：50000H
RS320HAN-GD30 Specifications
| Panel Brand | RisingStar | Panel Model | RS320HAN-GD30 |
| Panel Size | 32″ | Panel Type | a-Si TFT-LCD ，LCM |
| Resolution | 1920(RGB)×1080 | Pixel Format | RGB Vertical Stripe |
| Display Area | 698.4 (W) × 392.85 (H) mm (A.A) | Bezel Opening | / |
| Outline Size | 731.96 (W) × 431.4 (H) × 58 (D) mm | Surface | Hard coating(2H), Anti-glare low reflection treatment of the front polarizer (Haze 3%(Typ.)) |
| Brightness | 1000 to 5000nits | Contrast Ratio | 1000000:1 (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | Normally Black, Transmissive |
| Display Colors | 1.07B | Response Time | 9(Typ.)(Tr+Td) ms |
| Frequency | 60Hz | Supply voltage | 24V (Typ.) |
| Weight | TBD (Typ./Max.) | Signal Interface | LVDS 51 pins |
| Environment | Operating Temp.:-20℃~70℃; Storage Temp.:-20℃~70℃ | ||
.
.

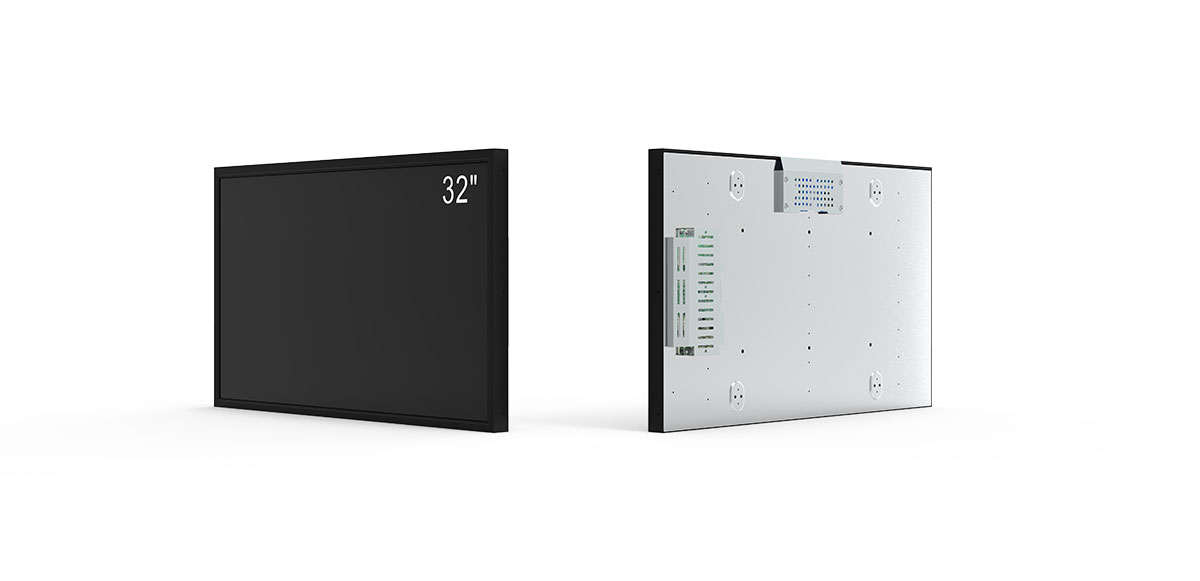

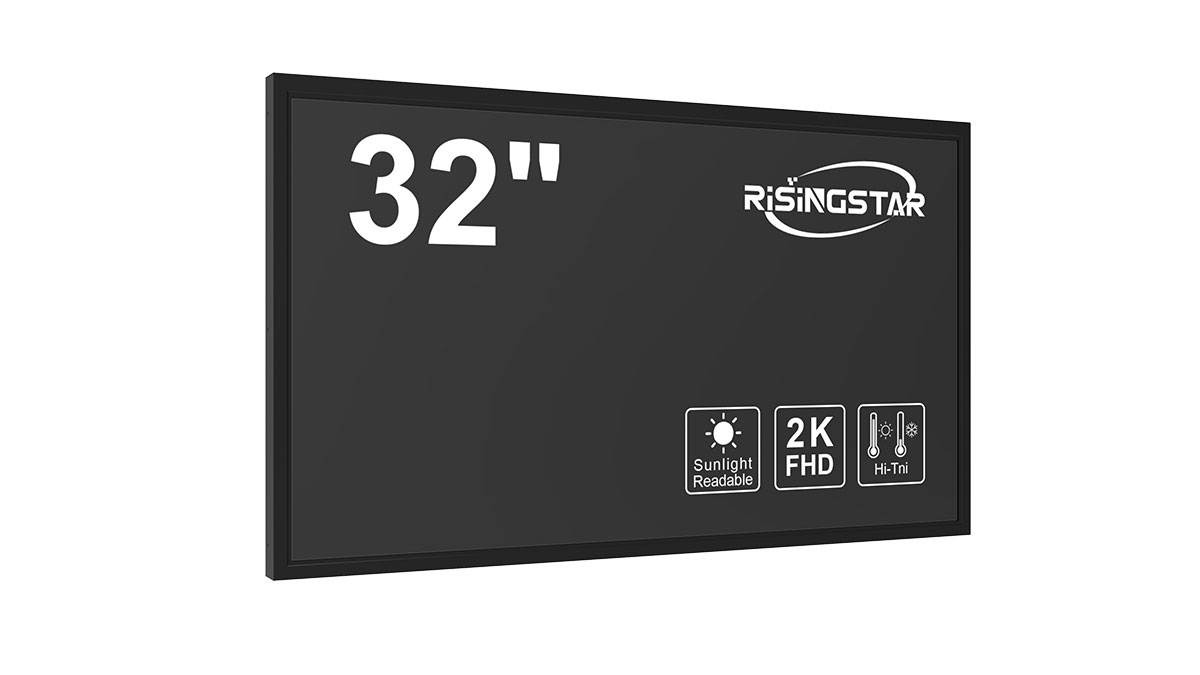

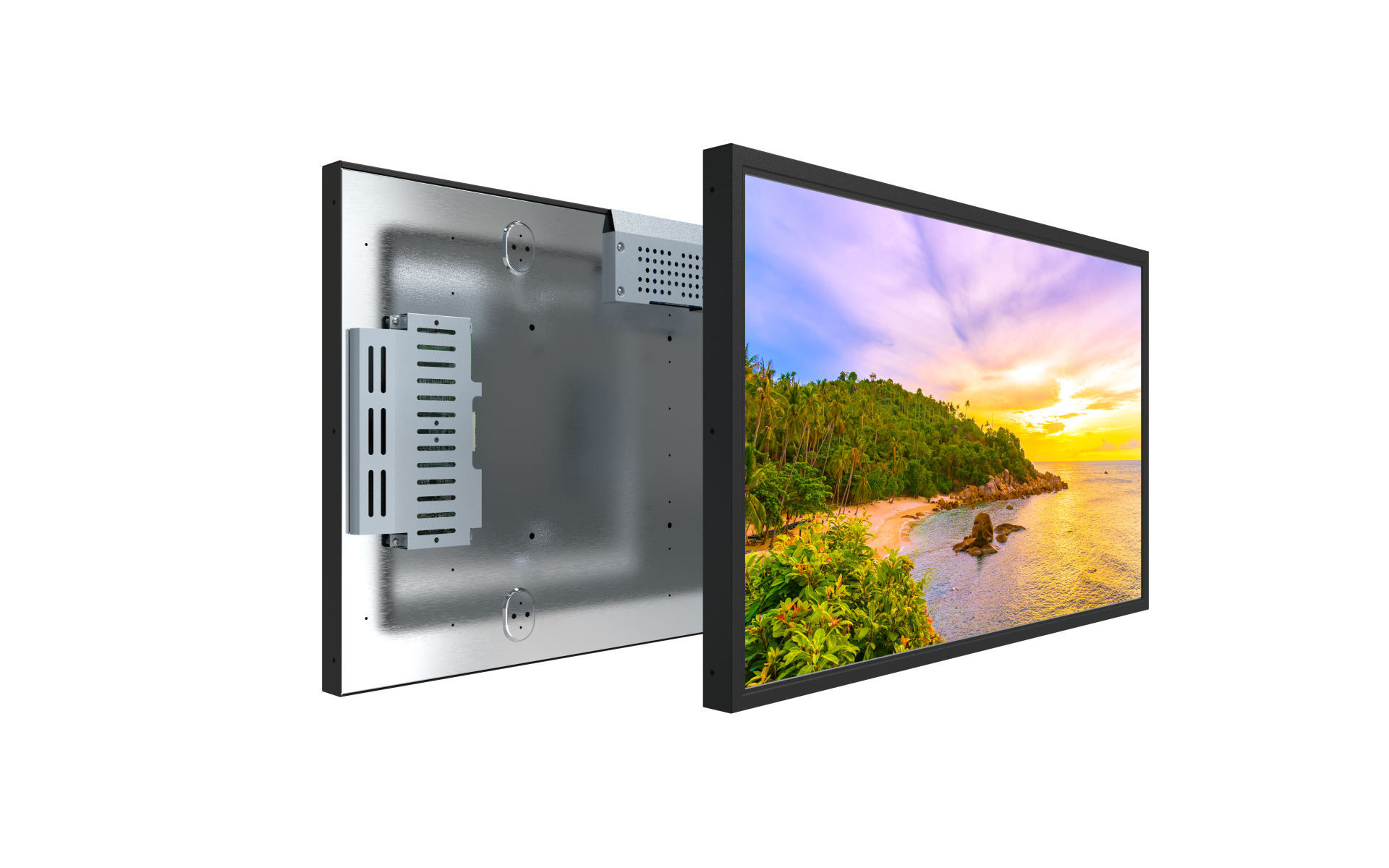

RisingStar Physical Products
RisingStar Connector
。
。

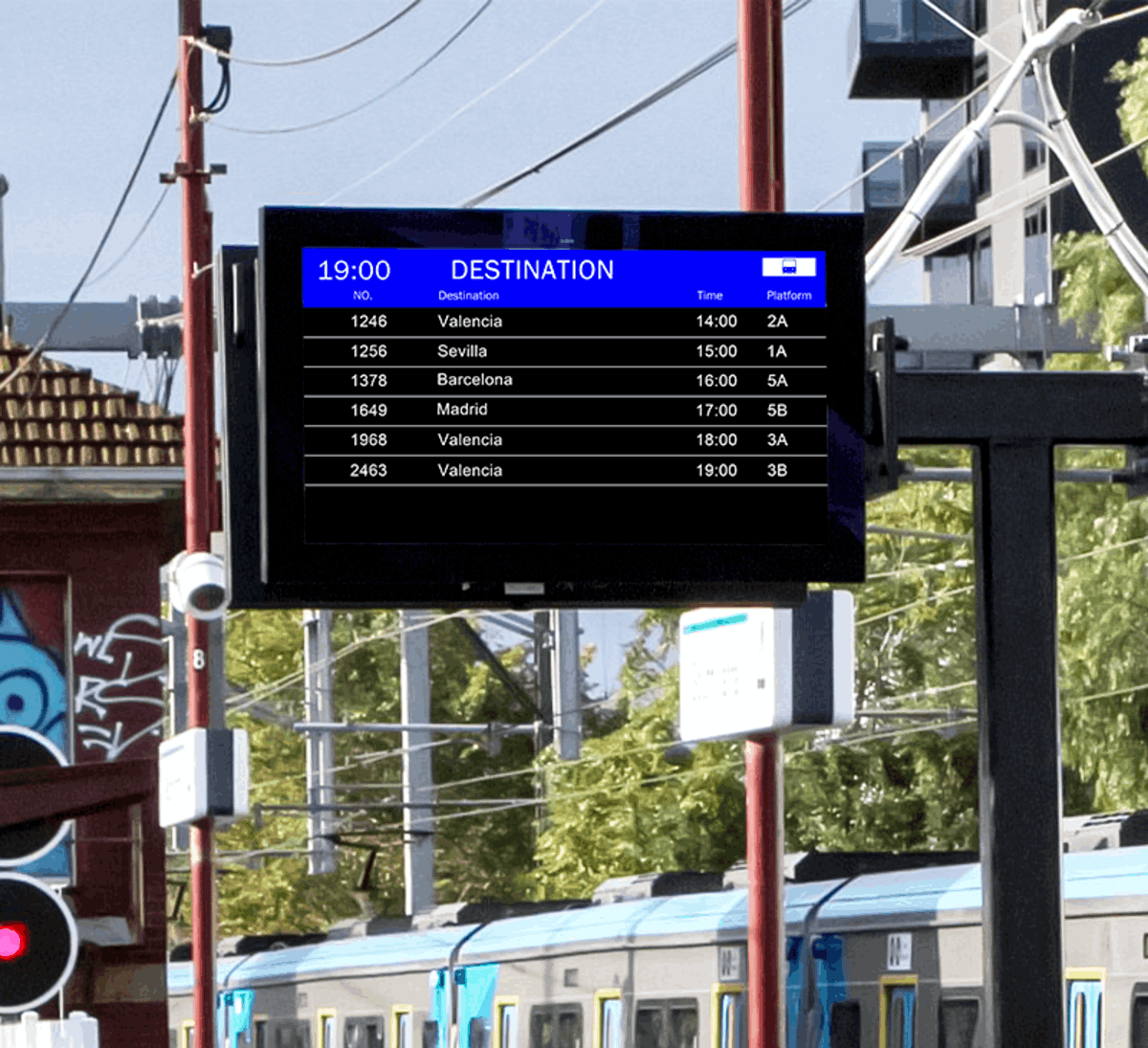

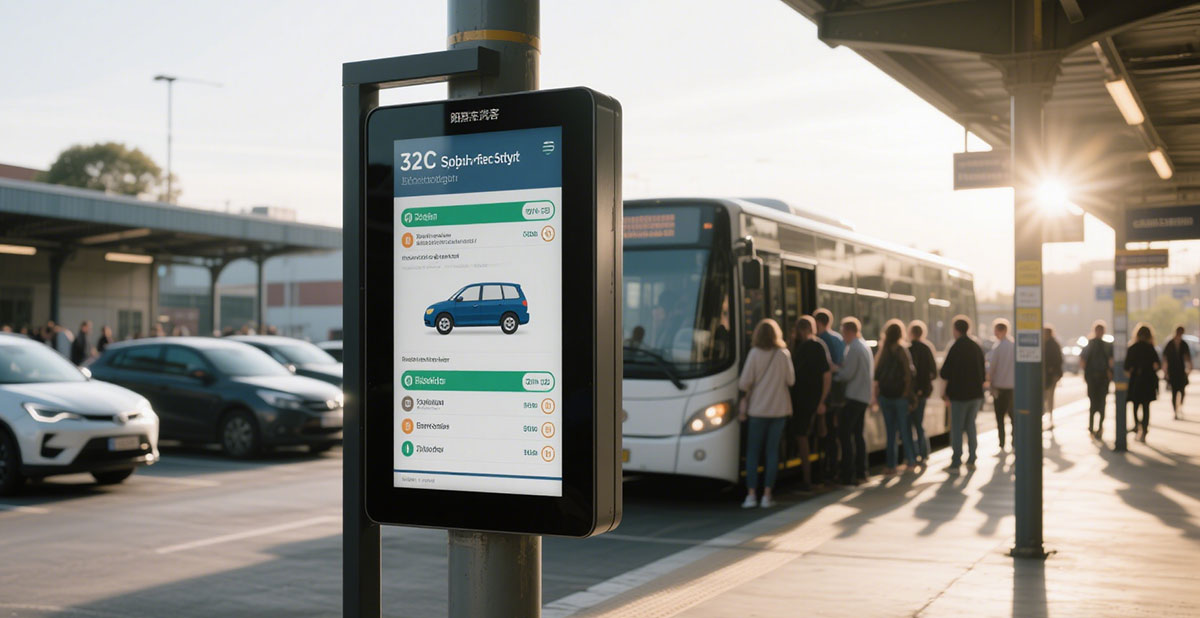

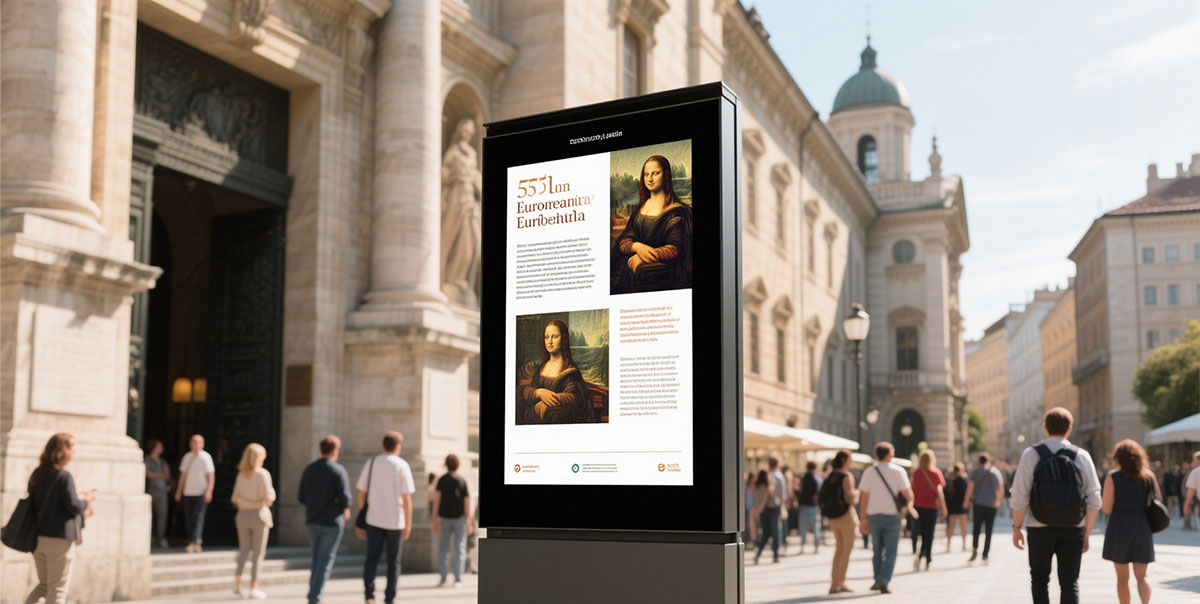

Hotel Sunlight Readable Display Outdoor Digital Signage Application Case
.
.
RisingStar Sunlight Readable Display Other Specifications
| Model name | Size (inch) | brightness | Resolution | Operating temperature |
|---|---|---|---|---|
| RS320ENT-GD20 | 32 | 2000 | 1920*1080 | -20 ~ 70 ℃ |
| RS320HAN-GD30 | 32 | 3000 | 1920*1080 | -20 ~ 70 ℃ |
| RS430ENT-GD30 | 43 | 3000 | 1920*1080 | -20 ~ 70 ℃ |
| RS550ENT-GD30 | 55 | 3000 | 1920*1080 | -20 ~ 70 ℃ |
| RS550ENT-GD40 | 55 | 4000 | 1920*1080 | -20 ~ 70 ℃ |
| RS650ENT-GD35 | 65 | 3500 | 3840*2160 | -20 ~ 70 ℃ |
| RS750ENT-GD40 | 75 | 4000 | 3840*2160 | -20 ~ 70 ℃ |
| RS860EQL-GD40 | 86 | 4000 | 3840*2160 | -20 ~ 70 ℃ |
