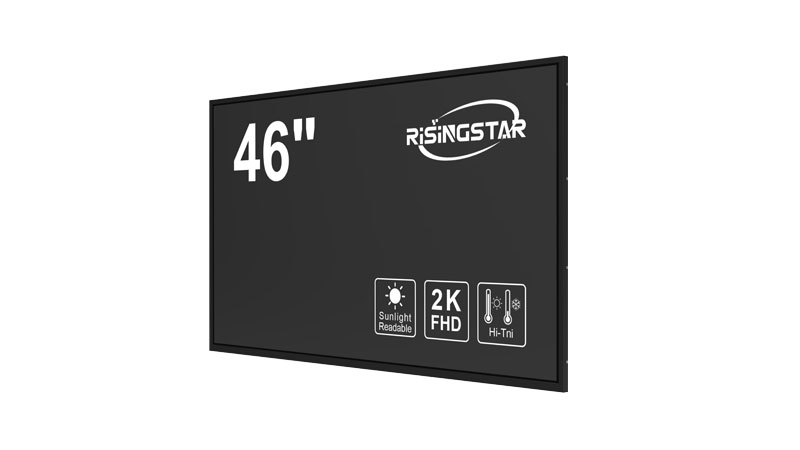

46 Inch Direct Lit Open Frame Monitor
Key Features
High Brightness: 2500 nits for clear visibility under direct sunlight
Sunlight Readable: Optimized for outdoor and high-ambient-light environments
LED Backlight: Ensures uniform brightness and extended lifespan
Wide Viewing Angle: 178° (H) / 178° (V) for consistent image quality from any direction
Wide Operating Temperature: -20°C to +60°C, reliable performance in harsh environments
LCD Blacking Defect Free: Prevents blackening under high temperature or sunlight exposure
Low Power Consumption: Energy-efficient design for industrial and commercial use
Long Backlight Lifetime: BL MTBF up to 50,000 hours for long-term stability
Intelligent Temperature Control: Active heat dissipation system for enhanced durability
Specifications
| Item | Description |
|---|---|
| Model Name | RS460FNX01D01 |
| Screen Size | 46" |
| Display Area (mm) | 1018.8 (H) × 572.67 (V) |
| Brightness | 2500 cd/m² |
| Resolution | 1920 × 1080 (Full HD) |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 3000:1 |
| Pixel Pitch (mm) | 0.53025 (H) × 0.53025 (V) |
| Viewing Angle | 89°/89°/89°/89° (Min.) (CR≥10) |
| Color Saturation (NTSC) | 72% |
| Display Colors | 16.7M |
| Response Time | 8 ms (Typical, Tr/Td) |
| Input Interface | EARPHONE OUT ×1, AUDIO IN ×1, VGA ×1, DVI ×1, HDMI ×1, AC IN ×1 |
| OSD Keys | AUTO / MENU / LEFT / RIGHT / EXIT / SELECT / POWER |
| Glass | N/A |
| Touch Type | N/A |
| Input Power | AC 200–240V |
| Power Consumption | 220W |
| Radiator System | N/A |
| Dimensions (mm) | 1050.6 × 610.3 × 78.7 |
| Mounting | 400 × 400 mm (M8 Screws) |
| Weight (Net) | TBD |
| Operating Temperature | -20°C ~ +60°C |
| Storage Temperature | -20°C ~ +70°C |
46-Inch High Brightness Open Frame LCD Display | RisingStar RS460FNX01D01
Overview: Industrial-Grade 46" Sunlight Readable Display
The RisingStar RS460FNX01D01 is a 46-inch high brightness open frame LCD monitor built for professional integration in outdoor and semi-outdoor environments. Featuring an impressive 2500 nits brightness and Full HD 1920×1080 resolution, this display ensures exceptional visibility even under direct sunlight.
Designed with a direct-lit LED backlight and industrial-grade components, the RS460FNX01D01 delivers uniform brightness, superior contrast (3000:1), and long-term reliability for mission-critical applications. Its wide operating temperature (-20°C to +60°C) and anti-blackening technology make it ideal for outdoor digital signage, transportation systems, and energy sector terminals.
RisingStar’s engineering expertise ensures that every display operates flawlessly in demanding environments where durability, clarity, and performance are essential.
Applications
The RS460FNX01D01 open frame LCD display is optimized for custom integration across various professional sectors. Its high brightness, reliability, and thermal management make it suitable for continuous outdoor use in challenging environments:
1. Transportation and Passenger Information Systems
Used in railways, metro stations, airports, and bus terminals, this display ensures real-time visibility of passenger information, schedules, and safety alerts. Even in direct sunlight or fluctuating temperatures, it remains readable and reliable.

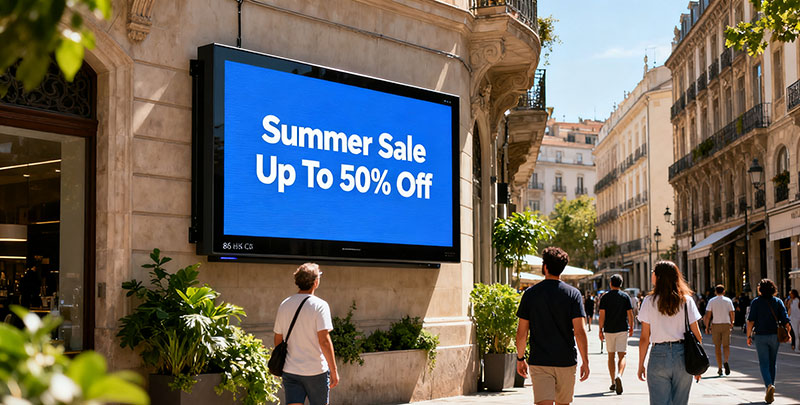

2. Outdoor Digital Signage
Perfect for advertising kiosks, building façades, and retail window displays, the 46-inch open frame monitor offers vivid images and low reflection under bright light, maximizing advertising impact.
3. Energy & Charging Stations
Widely applied in EV charging kiosks and fuel dispenser displays, providing high brightness for day and night visibility with minimal maintenance and low power draw.
4. Industrial & Smart City Terminals
Ideal for factory automation systems, interactive information boards, and smart city displays, ensuring long-term reliability under continuous 24/7 operation.
Engineering Excellence by RisingStar
With over 20 years of expertise in high brightness display technology, RisingStar is a trusted manufacturer specializing in industrial-grade LCD display solutions.
Our displays are designed and tested for extreme temperature endurance, vibration resistance, and low energy consumption. Every product undergoes rigorous testing to ensure performance in demanding outdoor environments.
Why RisingStar Displays Stand Out
Brightness options from 1500 to 5000 nits for different outdoor applications
Direct-lit LED backlight structure for superior uniformity and reliability
Aluminum housing design for lightweight structure and heat efficiency
Comprehensive quality control certified by ISO, CE, and RoHS
Global service and customization for OEM/ODM partners across Europe, Asia, and North America
We are committed to providing energy-efficient, long-lifespan, sunlight-readable LCD displays that empower customers to deliver reliable digital visual experiences anywhere.
