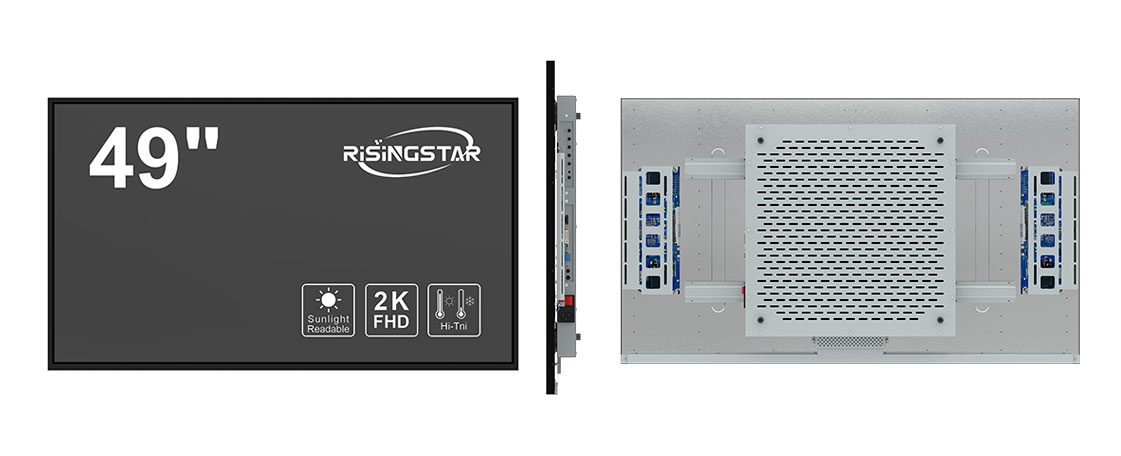

49 inch high brightness LCD open frame monitor
Key Features
High Brightness: 4000 nits, ensuring crystal-clear visibility even under direct sunlight
Sunlight Readable: Designed for outdoor and semi-outdoor environments
LED Backlight: Energy-efficient and long-lasting illumination
Wide Viewing Angle: 178° (H) / 178° (V) for optimal visibility from all directions
Wide Operating Temperature: -20˚C to 60˚C for stable performance in harsh conditions
LCD Blacking Defect Free: Prevents screen blackouts under high temperatures
Low Power Consumption: Industrial-grade efficiency for 24/7 operation
Backlight Lifetime: 50,000 hours (MTBF)
Intelligent Temperature Control System: Active heat dissipation for reliable performance
Specifications
| Item | Description |
|---|---|
| Model Name | RS495FNX01D01 |
| Screen Size | 49" |
| Display Area (mm) | 1018.8 (H) × 572.67 (V) |
| Brightness | 4000 cd/m² |
| Resolution | 1920 × 540 |
| Aspect Ratio | < 3:1 |
| Contrast Ratio | 4000:1 |
| Pixel Pitch (mm) | 0.630 (H) × 0.630 (V) |
| Viewing Angle | 89/89/89/89 (Min.) (CR ≥ 10) |
| Color Saturation (NTSC) | 72% |
| Display Colors | 16.7M |
| Response Time | 8ms (Typ.) |
| Input Interface | EARPHONE OUT ×1, AUDIO IN ×1, VGA ×1, DVI ×1, HDMI ×1, AC IN ×1 |
| OSD Keys | AUTO / MENU / LEFT / RIGHT / EXIT / SELECT / POWER |
| Glass | N/A |
| Touch Type | N/A |
| Input Power | AC 200–240V |
| Power Consumption | TBD |
| Radiator System | N/A |
| Dimensions (mm) | 1242.2 × 377.8 × 78 |
| Mounting | 400 × 200 mm (M8 Screws) |
| Weight (Net) | TBD |
| Operating Temperature | -20˚C ~ 60˚C |
| Storage Temperature | -20˚C ~ 70˚C |
49″ High Brightness Open Frame LCD Monitor
Sunlight Readable | Industrial-Grade | Outdoor Digital Display by RisingStar
RisingStar’s 49-inch high brightness LCD open frame monitor delivers superior visibility and durability for outdoor and semi-outdoor environments. Designed with industrial-grade components, this sunlight readable display provides crystal-clear images even under direct sunlight, making it ideal for passenger information displays, outdoor digital signage, EV charging kiosks, and gas station displays.
Technical Excellence You Can Trust
With more than 10 years of experience in high brightness display manufacturing, RisingStar has built a strong reputation for reliability, precision, and engineering expertise.
Each monitor is rigorously tested for vibration, temperature, and moisture resistance to ensure consistent performance in challenging outdoor conditions. RisingStar is ISO 9001 certified and supplies industrial displays to global transportation, energy, and retail clients.
Applications & Use Cases
Passenger Information Display – installed in railway stations, metro platforms, and bus terminals.

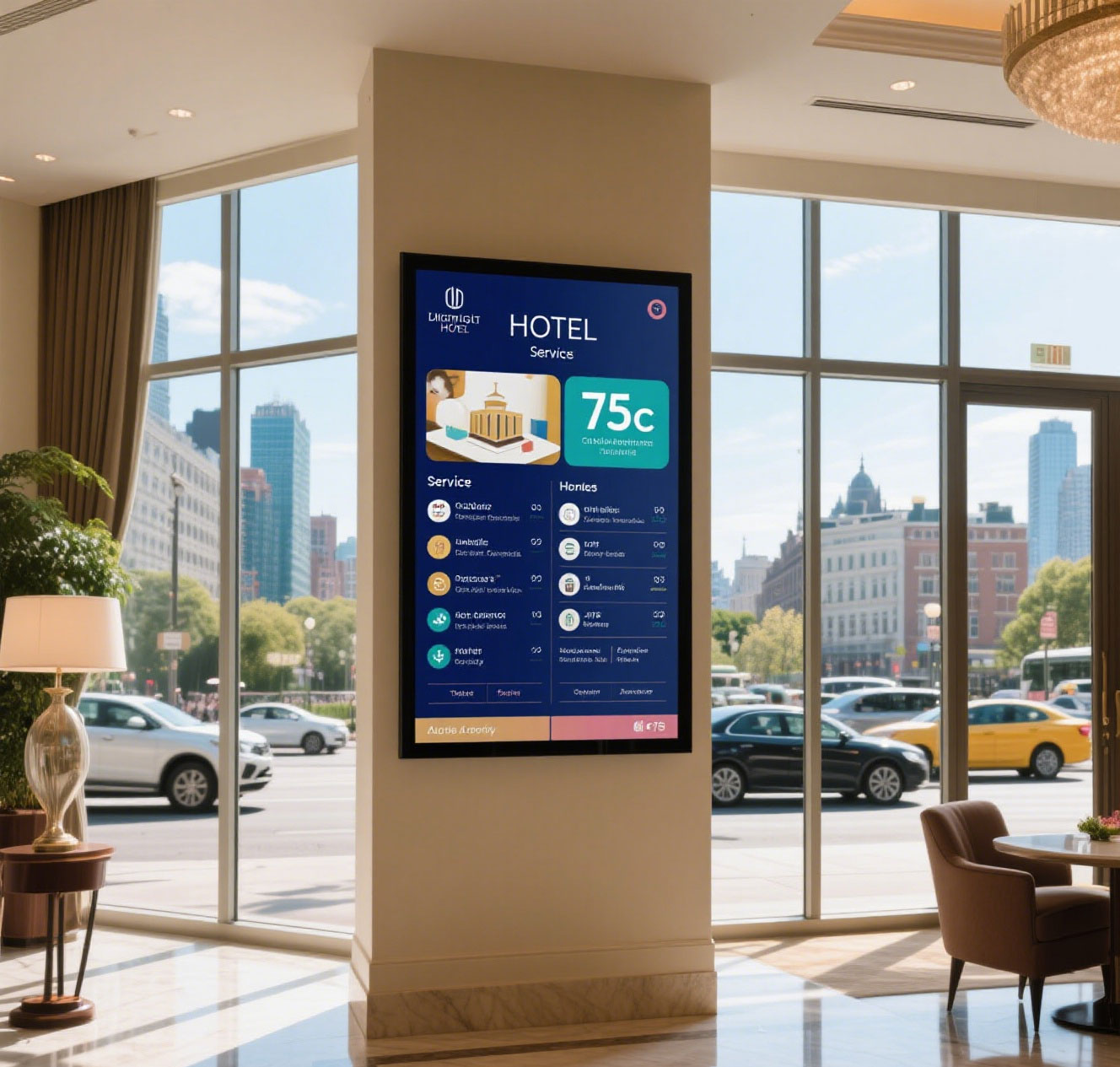

Outdoor Digital Signage Display – for retail storefronts, shopping malls, and building facades.
EV Charging Station Display – durable in heat and sunlight for interactive information kiosks.
Gas Pump and Fuel Dispenser Display – withstands long-term exposure to outdoor conditions.
Smart City and Transportation Systems – reliable data visualization for urban infrastructure.
Whether you are developing a high brightness digital signage system or upgrading an outdoor digital screen, the RisingStar 49″ display offers exceptional clarity, long-term stability, and full customization options.
Why Choose RisingStar
RisingStar combines advanced LCD backlight technology with strict quality control to deliver industrial-grade outdoor digital display solutions. From design to after-sales support, every display is backed by professional engineers and a 24-month warranty.
Our team provides ODM/OEM services, customized brightness levels (2500–5000 nits), and flexible integration for global partners.
