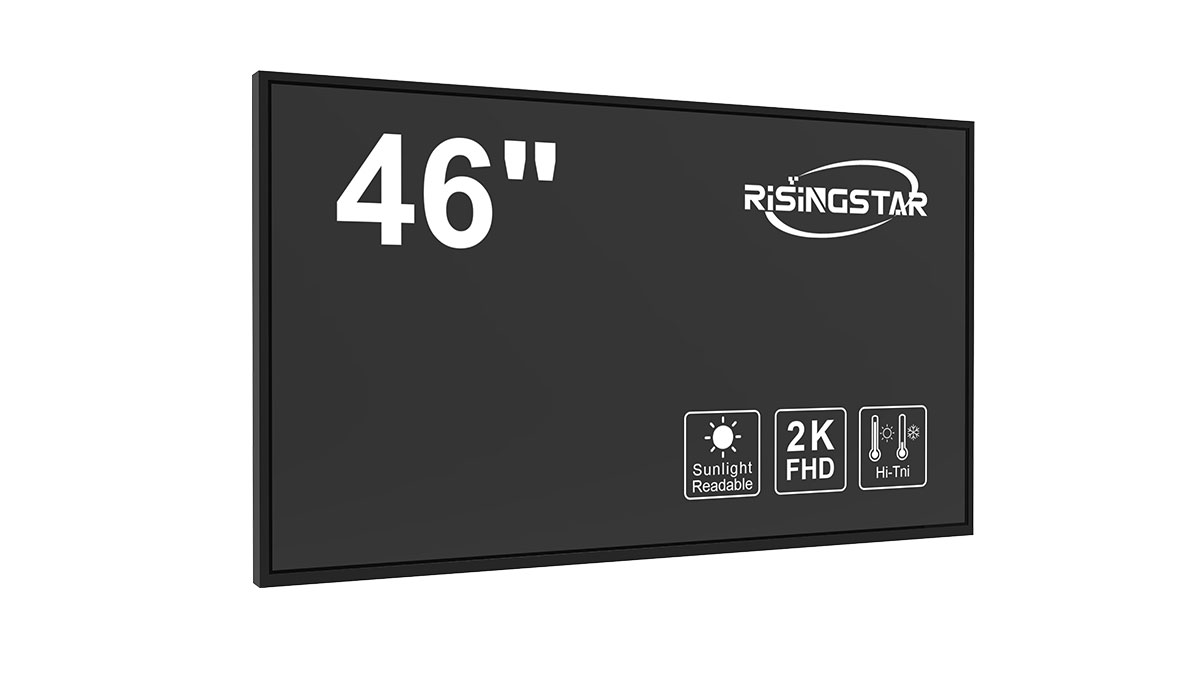

46 Inch High Brightness Sunlight Readable LCD Panel
Model No.: RS460EPY-GD30
Size: 46 inch
Life：50,000 hours
Resolution：1920*1080 / 3840(RGB)×2160
Brightness：2500/3000/4000/4500 Nits
Operating Temperature：-20～70℃
RS490EPY-GD30 Specification
| Panel Brand | RisingStar | Panel Model | RS460EPY-GD30 |
| Panel Size | 46″ | Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD, 47PPI | Pixel Format | RGB Vertical Stripe |
| Display Area | 1018.08(W)×572.67(H) mm | LCD screen | S-IPS |
| Outline Size | 1024.48(H)×579.07(V) mm | Surface | Hard coating(2H) |
| Brightness | 2500/ 3000/ 4000/ 5000nits | Contrast Ratio | 4000:1 (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | Normally Black, Transmissive |
| Display Colors | 16.7M/1.07B , 99% sRGB | Response Time | 8 (Typ.)(Tr/Td) ms |
| Frequency | 60Hz | Supply voltage | 12.0V (Typ.) |
| Weight | 10.9Kgs (Typ.) | Signal Interface | LVDS 51 pins |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C | ||
.
.

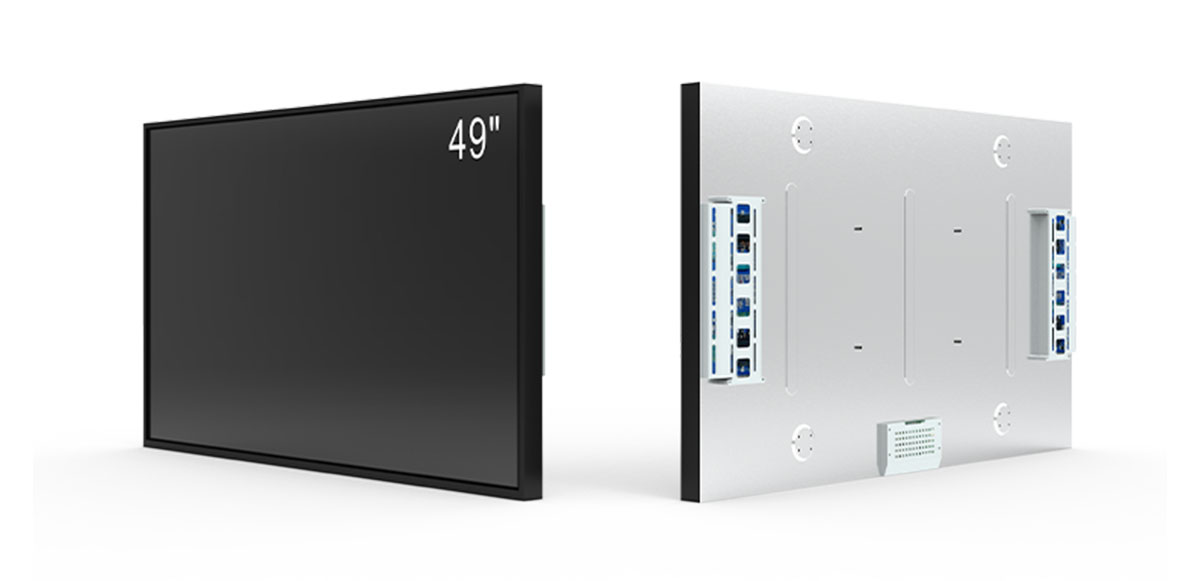

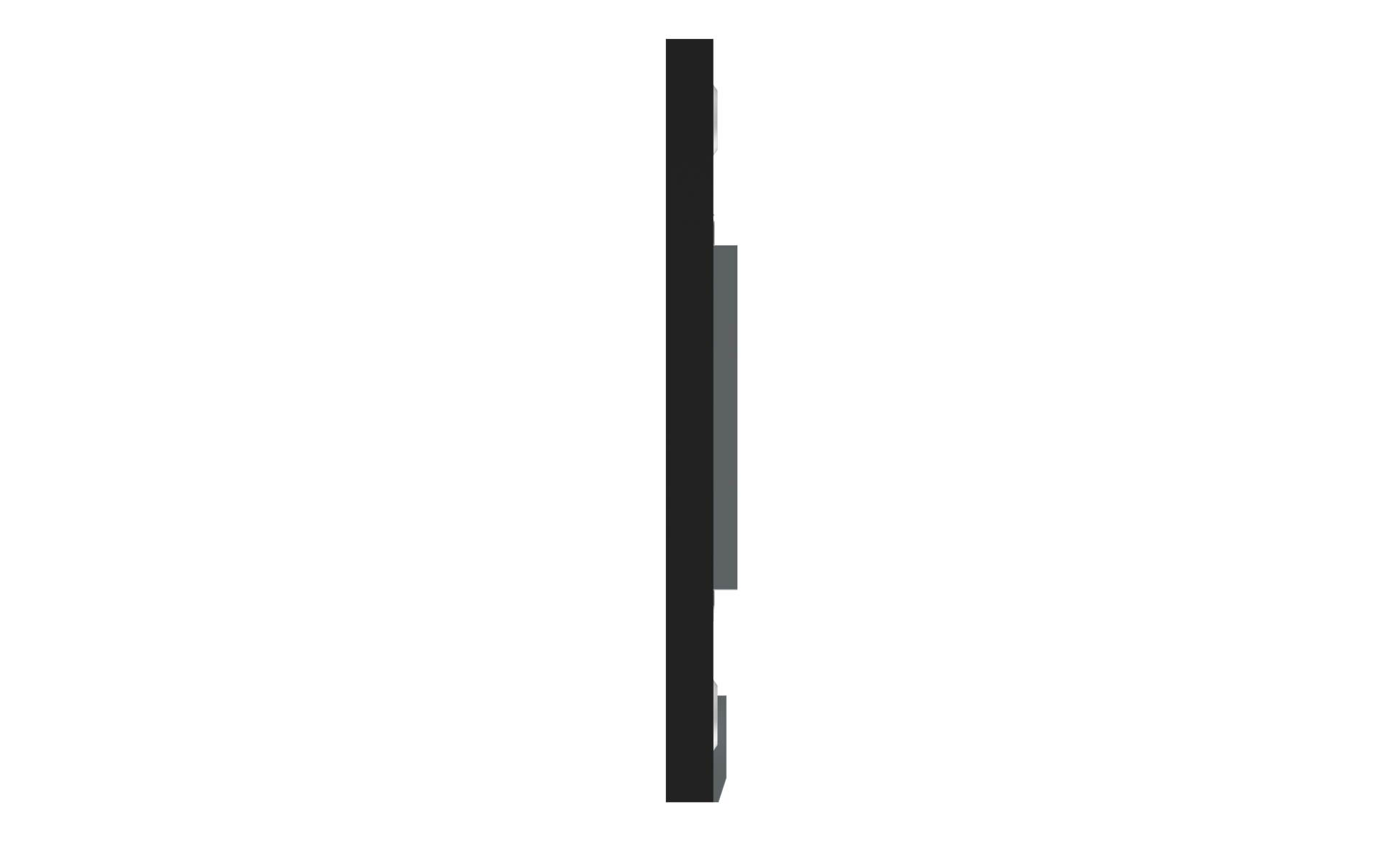

RisingStar Physical Products

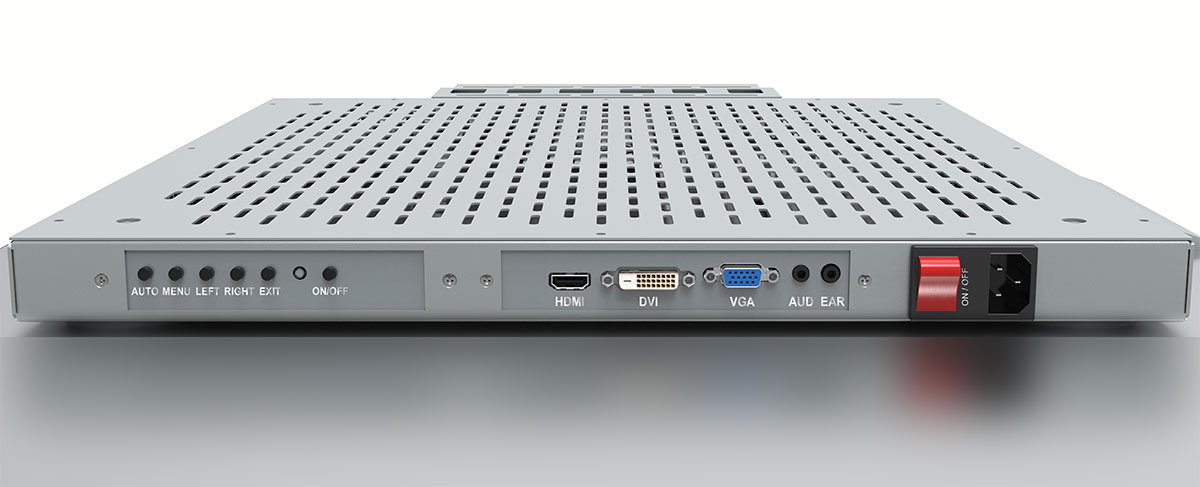

RisingStar Connector
。
。

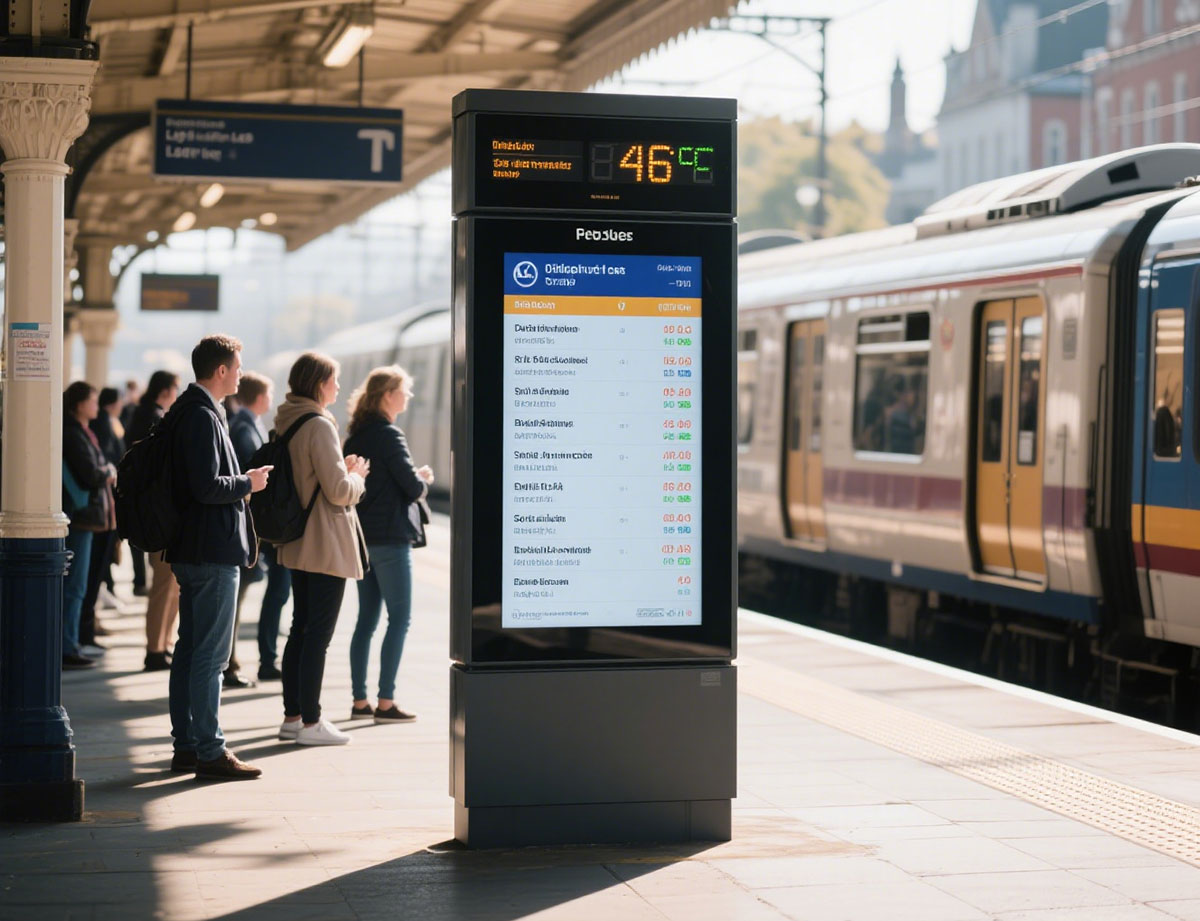

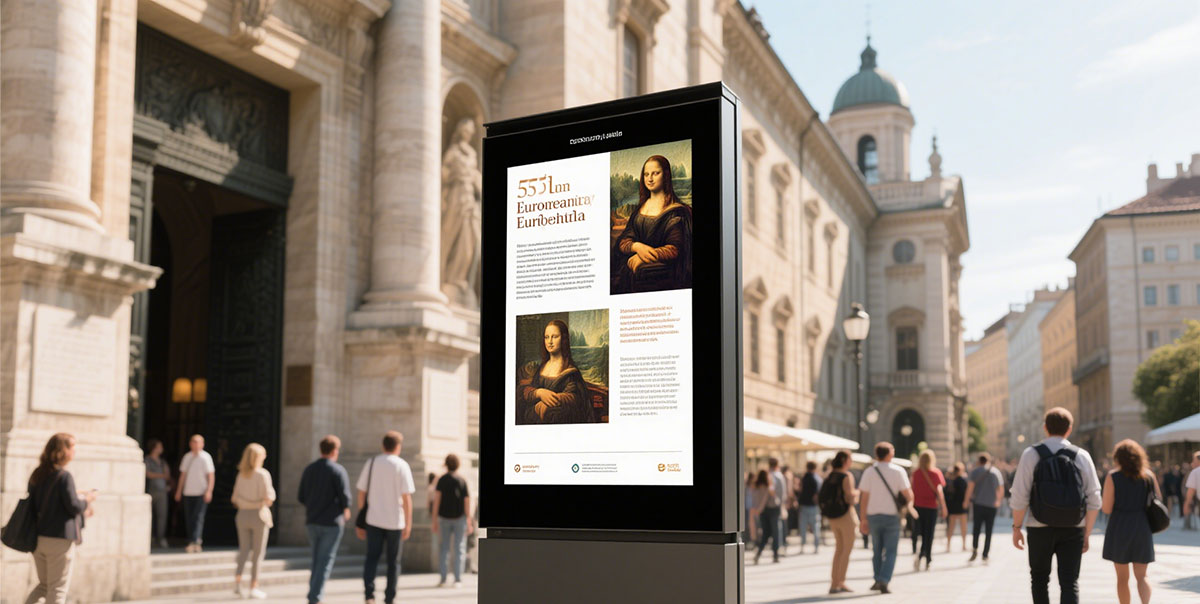

Sunlight Readable Display Application Case At Railway Station
.
.
RisingStar high brightness sunlight redable panel Other Specifications
| Model name | Size (inch) | brightness | Resolution | Operating temperature |
|---|---|---|---|---|
| RS101ICE-GE07 | 10.1 | 700 | 1280*800 | -20 ~ 70 ℃ |
| RS156HCE-GE10 | 15.6 | 1000 | 1920*1080 | -20 ~ 70 ℃ |
| RS190E0M-GE10 | 19 | 1000 | 1280*1024 | -20 ~ 70 ℃ |
| RS215FHB-GE15 | 21.5 | 1500 | 1920*1080 | -20 ~ 70 ℃ |
| RS270FHB-GD20 | 27 | 2000 | 1920*1080 | -20 ~ 70 ℃ |
| RS320DPY-GD30 | 32 | 3000 | 1920*1080 | -20 ~ 70 ℃ |
| RS490EPY-GD30 | 49 | 3000 | 1920*1080 | -20 ~ 70 ℃ |
| RS550DPY-GD45 | 55 | 4500 | 1920*1080 | -20 ~ 70 ℃ |
| RS650QUB-GD30 | 65 | 3000 | 3840*2160 | -20 ~ 70 ℃ |
| RS750ENT-GD40 | 75 | 4000 | 3840*2160 | -20 ~ 70 ℃ |
| RS860EQL-GD40 | 86 | 4000 | 3840*2160 | -20 ~ 70 ℃ |
| RS980DQY-GD35 | 98 | 3500 | 3840*2160 | -20 ~ 70 ℃ |
